LAUNCH
Flip it out to any angle and work comfortable at your desk, or hang it on steering
wheel.

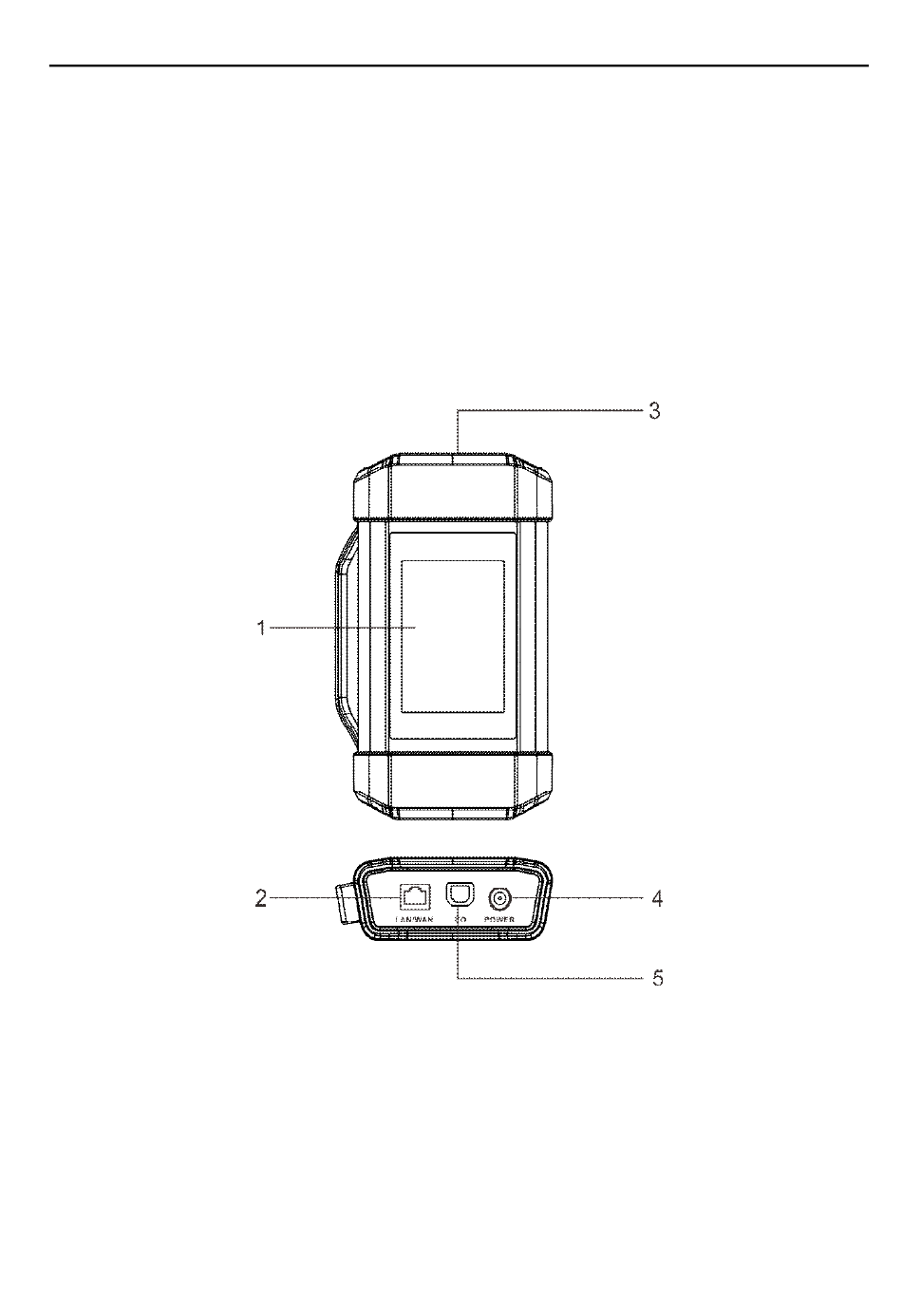

2.2 SmartLink C Device
The SmartLink C device works as a VCI (Vehicle Communication Interface)
device. It is used to read the vehicle data and then send it to the tablet via
wireless (BT) communication or data cable connection.
1. Touch screen
2. LAN/WAN port
Connect the SmartLink C device to the Internet via the crossover cable. It only
applies to the SmartLink Super Remote Diagnostics.
3. OBD-16 diagnostic connector
Connect the SmartLink C device to the vehicle's DLC (Data Link Connector) port
via the VCI extension cable.
X-431 Torque LINK User Manual
5
