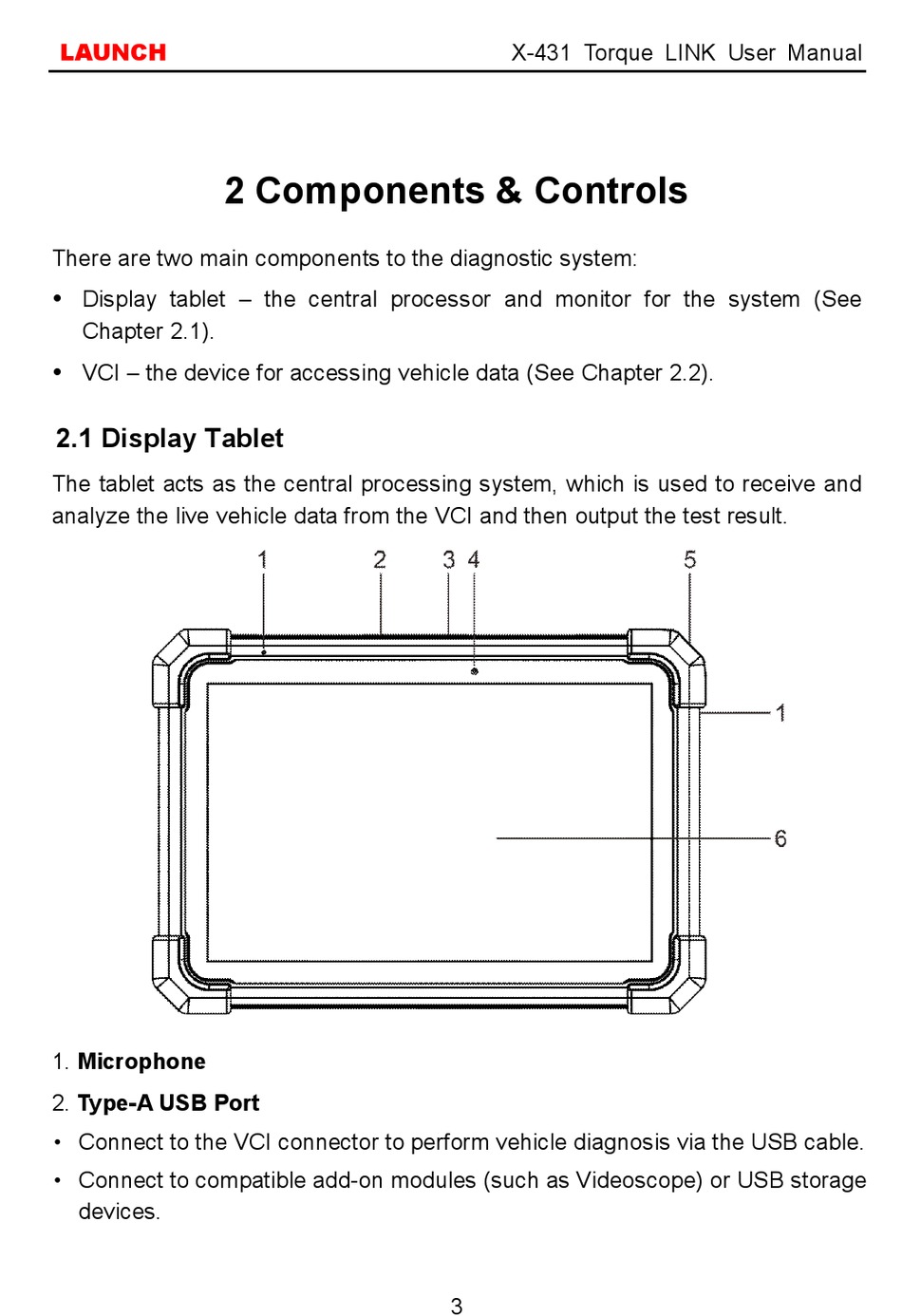

There are two main components to the diagnostic system:
Display tablet – the central processor and monitor for the system (See
Chapter 2.1).
VCI – the device for accessing vehicle data (See Chapter 2.2).
2.1 Display Tablet
The tablet acts as the central processing system, which is used to receive and
analyze the live vehicle data from the VCI and then output the test result.
1. Microphone
2. Type-A USB Port
• Connect to the VCI connector to perform vehicle diagnosis via the USB cable.
• Connect to compatible add-on modules (such as Videoscope) or USB storage
devices.
2 Components & Controls
X-431 Torque LINK User Manual
3
