Summary of Contents for Hegel P30A
- Page 1 P30A & H30A User Manual...
-
Page 2: A Word From Bent
In its mono state it delivers a truly astound- We have nicknamed the P30A The Conduc- ing 1100 watts in 8 ohms, and it is stable tor because that is what it is. Its job is to even with 1-ohm loads. -
Page 3: Table Of Contents
Index A word from Bent What’s in the box P30A Connections Remote Control H30A Connections Stereo mode Mono mode Technical Spesifications General Information... -
Page 5: What's In The Box
What’s in the box P30A Preamplifier Power Cord Remote Accessory Box User Manual Control H30A Power Amplifier Power Cord Accessory Box User Manual... -

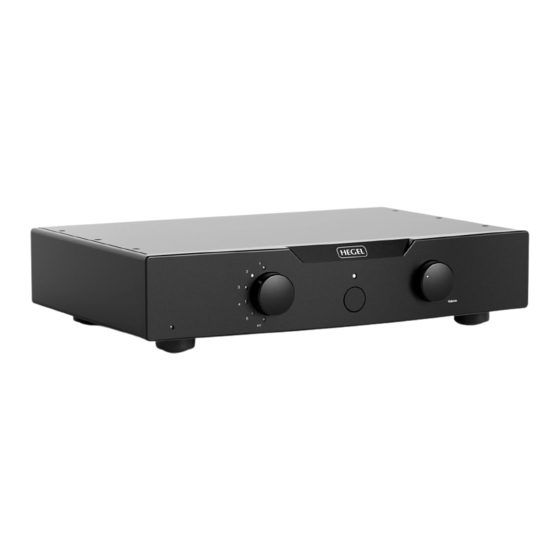

Page 6: P30A
This is normal and is part of the start-up procedure. When Control Output the power light stops flashing the P30A is The control/trigger output uses a regular ready to use. 3,5 mm jack plug. The control output will... -
Page 7: Connections
NOTE: The RCA 2 output can be con- NOTE: The Home Theatere input can be figured to work as a fixed analog output. configured to work as a standard analog Please contact your Hegel dealer for more input. Please contact your Hegel dealer for information. more information. -
Page 9: Remote Control
Skip to previous track on most media players 2. PLAY Play/Pause on most media players 3. NEXT Skip to next track on most media players 4. DAC+ Input source selector button for Hegel DACs COMPUTER 5. ECO Sets device in low power mode... -
Page 10: H30A
H30A Operating the H30A Control Input/Output The Hegel H30A is a power amplifier that The H30A has a control/trigger input and can be operated in either mono or stereo output. If connected, a steady 5-12V signal mode. Read more about the mono / stereo will turn the outputs on. -
Page 11: Connections
Connections Always power off the power amplifier before Speaker Outputs flipping any switches or connecting input/ • Speaker output right output audio cables and the power cable. • Speaker output mono: + right = – mono, + left = + mono Analog Inputs Right/Left •... -
Page 12: Stereo Mode
Left Right Left Max level input Control IR in Amplifier circuit protected by Hegel US Patent no.6.275.104 Apparatet må tilkoples jordet stikkontakt Make sure the input selectors are pointing towards the Set the Stereo/Mono connectors you are using. switch to Stereo In this example, XLR. -
Page 13: Mono Mode
Left Right Left Max level input Control IR in Amplifier circuit protected by Hegel US Patent no.6.275.104 Apparatet må tilkoples jordet stikkontakt Set up your other Make sure the input selector is pointing towards the H30A excactly like Set the Stereo/Mono this, then connect connector you are using. -
Page 14: Technical Spesifications
Technical Specifications P30A Preamplifier H30A Power Amplifier Remote control Volume, source and mute Output power More than 1100 W in 8 Inputs 2 x XLR balanced, 3 x ohms (mono) RCA unbalanced and Min. load impedance 1 ohm load Home Theatre inputs... -
Page 15: General Information
Cleaning Fingerprints or stains on the front panel In case you need assistance with your Hegel or top cover can be removed with a cloth product, please contact your nearest dealer moistened with warm water or a mild or distributor. - Page 16 www.hegel.com...
