Summary of Contents for Hegel C55

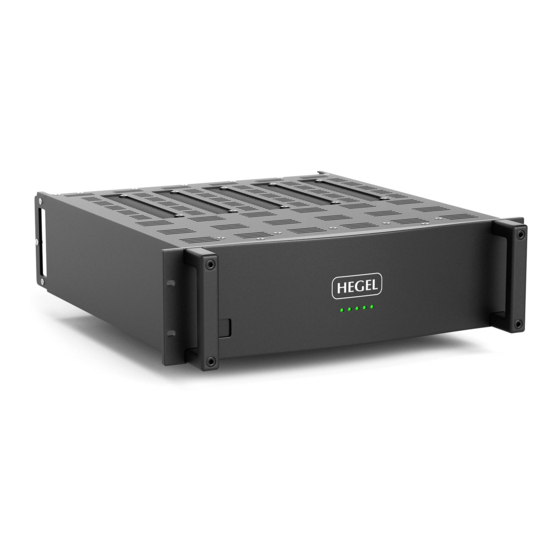

- Page 1 C55 User Manual...
- Page 2 There are five LED’s on the front panel indi- On/Off cating the status for each channel: The C55 amplifier is switched on and off with the power button, located on the front Unlit: Channel is Off, or temperature safety of the amplifier. This is the main power switch in transformer is activated.
-
Page 3: Technical Specifications
Technical Specifications C5-Series Power Amplifier – C53/C54/C55 Power output 3/4/5*150W in 8 Ohms (C53/C54/C55) Mains current 7A at 230V, 14A at 115V (5*150W output) Minimum load 2 ohms Analog Inputs 3/4/5*balanced (XLR), 3/4/5*unbalanced (RCA), Control Inputs 1*mini-jack 5-12V trigger Control Outputs... -
Page 4: Connections
180° Speaker Speaker Speaker Speaker Speaker Serial Number C55 Power Amplifier Please note that the amplifier should be turned off before you flip any switches. Channel 1-5 Mains Rear Panel 1. RCA connector for unbalanced input 1. Mains input 2. Input selector for switching between RCA 2. -
Page 5: General Information
General Information Attaching feet Changing Fuse If the C55 is not mounted in a rack it will The C55 has a main fuse as well as a sepa- need feet so air can flow in through the bot- rate fuse for each channel. -
Page 6: General Information
In case you need any assistance with your Hegel product please find your nearest Cleaning dealer or distributor by looking at the Hegel Fingerprints or stains on the front panel or web site http:\\www.hegel.com. If you expe- top cover can be removed with a cloth moist-... -
Page 7: Dimensions
Dimensions... - Page 8 www.hegel.com...
