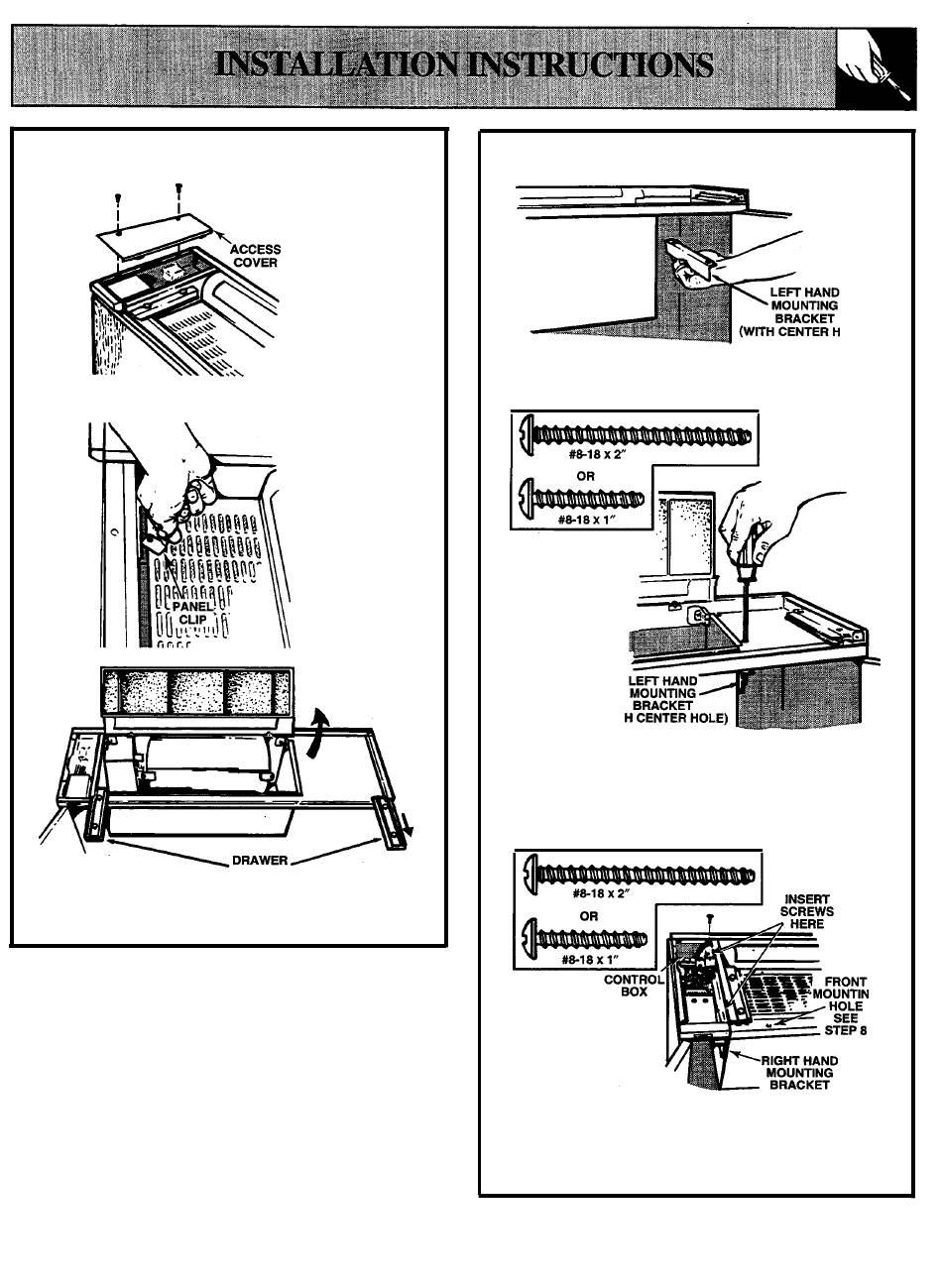

5. Remove the access cover.
6. Open the filter panel.
Pull the drawer slides out. Rotate the panel clips
and swing the panel open.
SLIDES
7. Install the mounting brackets.
Hold the left hand mounting bracket in place on
"the side of the housing as shown.
#S-18 Y
X
(WIT
Two (2) sets of screws are provided. Use the short
screws for flush bottom cabinets or long screws
for recessed bottom cabinets. Insert two (2)
screws through the housing and into the mounting
bracket, Do not tighten screws completely.
Insert two (2) screws, short or long as
appropriate, through the control box and
into the other mounting bracket. Do not
tighten the screws completely.
