1.6.
Dimensions and Pinout
(Mating Plug is DRC16-40SA or DRC18-40SA with sockets 0462-201-16141)

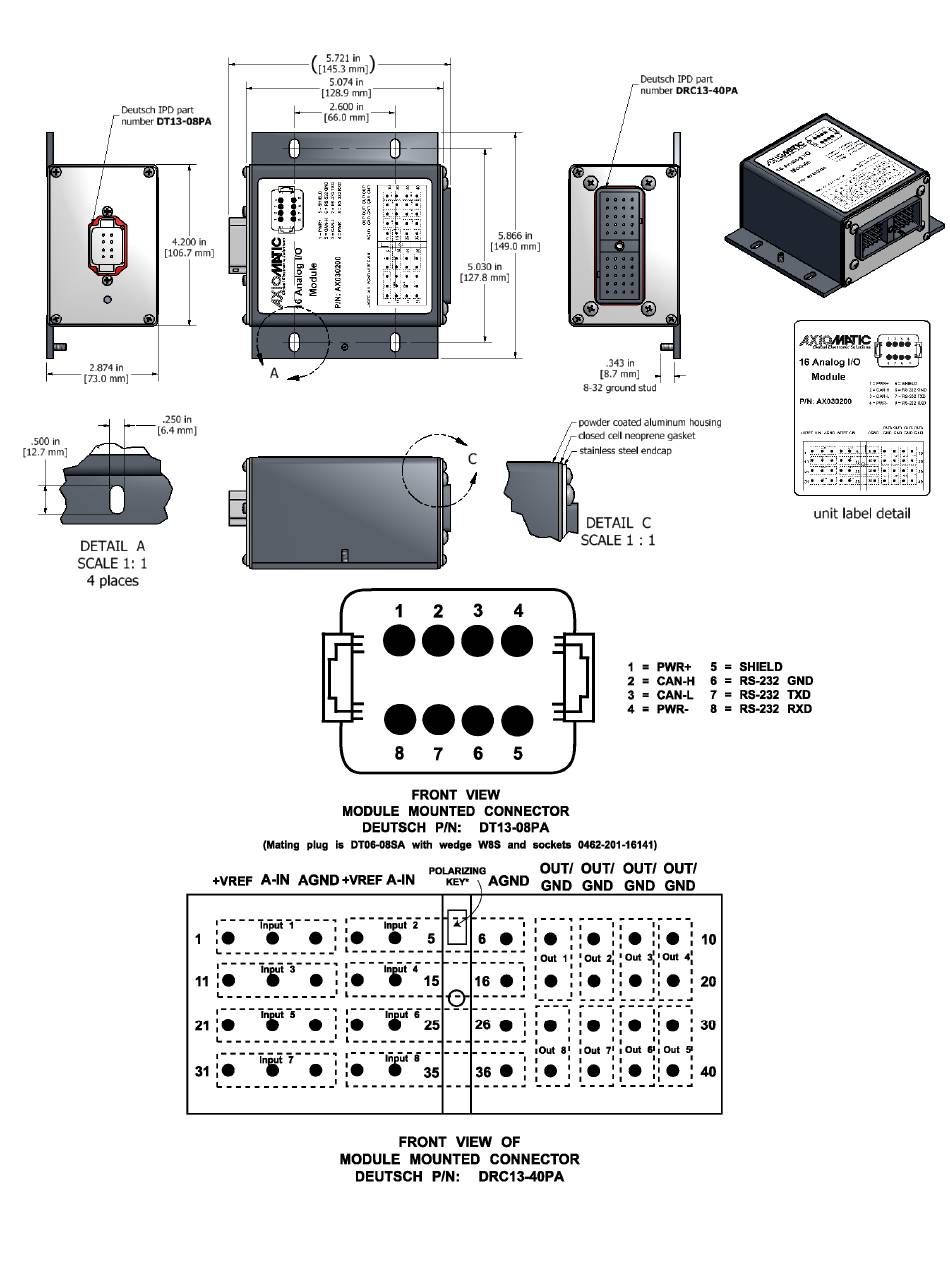

Figure 4 – Dimensions and Pinout
Version 2.0.3
Preliminary Documentation – May be Subject to Change
