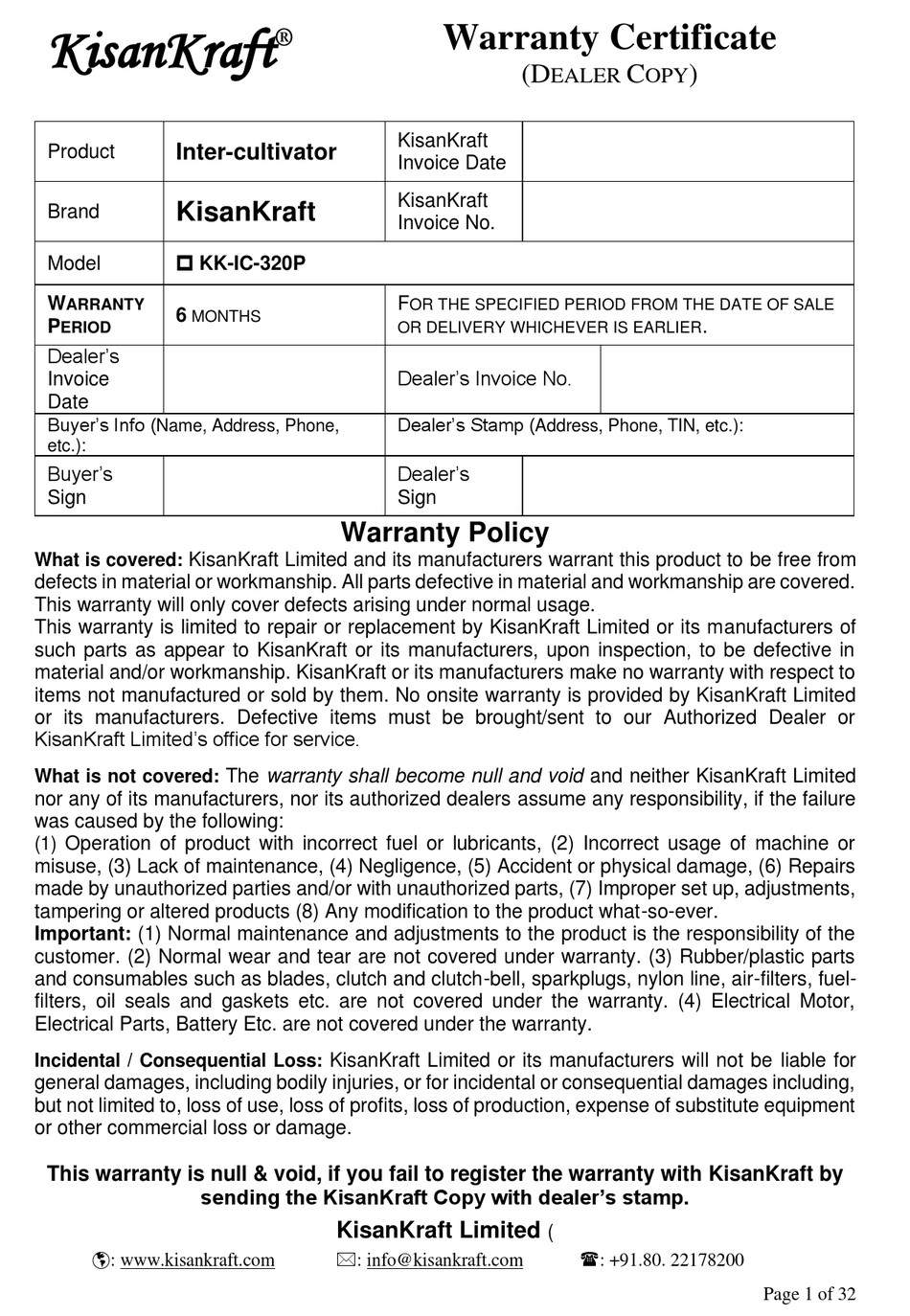

Warranty Certificate
(D
EALER
OR THE SPECIFIED PERIOD FROM THE DATE OF SALE
Address, Phone, TIN, etc.):
(
: +91.80. 22178200
C
)
OPY
.
Page 1 of 32
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KISANKRAFT KK-IC-320P
Summary of Contents for KISANKRAFT KK-IC-320P
- Page 1 This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
- Page 2 (invoice/receipt). KisanKraft Limited, its manufacturers and its dealers reserve the right to inspect the claimed defective part(s) to determine if the malfunction is the result of a defect covered by this warranty. Please note that the decision of KisanKraft Limited with respect to any warranty claim is final.
- Page 3 ♦ Guwahati ♦ Hyderabad ♦Nellore ♦ Jaipur ♦ Karnal ♦ Kolkata ♦ Lucknow ♦ Patna ♦ Pune ♦ Raipur ♦ This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
-
Page 4: Table Of Contents
KisanKraft ® INTERCULTIVATOR KK-IC-320P CONTENTS BEFORE GETTING STARTED ................... 7 APPLICATION ......................8 SAFETY INSTRUCTIONS ..................8 PRODUCT OVERVIEW .................... 11 INSTALLATION METHOD ..................11 OPERATION INTRODUCTION ................11 Daily Checking ................... 11 Inter-cultivator adjustment ................12 Engine start and stop ................. 12 Operation .................... - Page 5 Incidental / Consequential Loss: general damages, including bodily injuries, or for incidental or consequential damages including, This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp. KisanKraft Limited : info@kisankraft.com...
- Page 6 (invoice/receipt). KisanKraft Limited, its manufacturers and its dealers reserve the right to inspect the claimed defective part(s) to determine if the malfunction is the result of a defect covered by this warranty. Please note that the decision of KisanKraft Limited with respect to any warranty claim is final.
-
Page 7: Before Getting Started
KisanKraft ® INTERCULTIVATOR KK-IC-320P BEFORE GETTING STARTED Thank you for purchasing our Inter-cultivator. • This manual contains information on operation and maintenance of the Inter- cultivator, which is based on the most recent product information available at the time of approval for printing. We reserve the right to make amendments without prior notice and without incurring any obligation for sequences. -
Page 8: Application
KisanKraft ® INTERCULTIVATOR KK-IC-320P APPLICATION The Inter-cultivator is suitable for cultivating, earth backing, ditching, ridging, and weeding for garden, orchard, and nursery and so on in flat land, hills and mountainous fields. Do not use the Inter-cultivator in sloped land ≥20°. - Page 9 KisanKraft ® INTERCULTIVATOR KK-IC-320P No protective devices, no operation the Inter-cultivator . Keep away from the kids and pets. To avoid over working depth, and over speed, cause the machine overload. The Inter-cultivator should not be run in high speed on the slippery road, be careful the back situation when using backward gear.
- Page 10 KisanKraft ® INTERCULTIVATOR KK-IC-320P Keep away from the fly wheels, no △! Warning Keep away from touch, keep safe the rotate blades, distance. injuries will be Spectators should caused if touching keep a safe the blades. distance away from the Inter- cultivator .
-
Page 11: Product Overview
KisanKraft ® INTERCULTIVATOR KK-IC-320P PRODUCT OVERVIEW Handle frame Flameout switch Oil switch Gasoline engine Bumper Walking round Assy Rotary parts Fender parts Output clutch handle Clutch handle INSTALLATION METHOD Assembly after unpacking: 1.1. Walking round Fix the body of Inter-cultivator , install wheels on both sides of hexagonal shaft and fix it by clip B and Pin. -
Page 12: Inter-Cultivator Adjustment
KisanKraft ® INTERCULTIVATOR KK-IC-320P • Put the engine at horizontal position. Insert the dipstick into the filler neck without screwing it in. Get the dipstick out, check the oil level. The oil level should be the mentioned position in the dipstick. (Look at Photo III). -
Page 13: Operation
KisanKraft ® INTERCULTIVATOR KK-IC-320P 4. Operation 4.1 Starting Inter-cultivator : Clutch bar should be disengaged, and all gear shifting levers should be in neutral gear position, and then start the engine following the usual manual. 4.2 Running: Put gear shifting handle in the required gear position, clench the clutch handlebar to make the Inter-cultivator work/walk. -
Page 14: Technical Maintenance Table Of Mini-Inter-Cultivator
KisanKraft ® INTERCULTIVATOR KK-IC-320P Afterwards, you should refuel adequate clean gasoline oil, pull the starting grip 5~10 times, then drain it. Refuel the lube oil for 4 hours running-in, then can use the Inter-cultivator normally. 2. Technical maintenance table of mini-Inter-cultivator 2.1 Every-time maintenance (before and after work) -
Page 15: Long-Period Storage Of Mini-Inter-Cultivator
KisanKraft ® INTERCULTIVATOR KK-IC-320P Working Work Work Work for Every Per 2 intervals for 1 with half 3 months year or years Everyday month load for or 150 1000 or 2000 Maintenance or 20 8 hours hours hours hours contents... -
Page 16: Adjustment Of Throttle Cable
KisanKraft ® INTERCULTIVATOR KK-IC-320P Requirement The small sleeve must work in the scale range after all adjustment done. 2. Adjustment of throttle cable 2.1 Adjust throttle cable, make throttle handle can reach the fastest and slowest position, then tighten the throttle switch with locking bolt. -
Page 17: Troubleshooting
KisanKraft ® INTERCULTIVATOR KK-IC-320P TROUBLESHOOTING Common troubles and solutions Problem Reason Solution Abnormal noise on Over abrasion of the gear Reinstall or replace the gear gear or improper installation Gear cannot run Improper installation Reinstall the gear smoothly Less lube oil in the tank... -
Page 18: Technical Specifications
KisanKraft ® INTERCULTIVATOR KK-IC-320P TECHNICAL SPECIFICATIONS Model KK-IC-320P Dimension (L x W x H) (mm) 1480x800x1100 N.W/G.W(kg) 90/100 INTER CULTIVATOR Transmission System Belt / Chain Working width (mm) >1000 Working Depth (mm) Engine Model OHV,Single-cylinder,4-stroke, Type forced air cooling Displacement 212 cc Bore ×... -
Page 19: User Manual
Please read and understand this owner’s manual before operation of the engine to avoid accidents by familiarizing yourself with your engine’s controls and safe operation procedures. : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com Page 19 of 32... - Page 20 The use of the lubricating oil free of cleaning agent or the lubricating oil for the two-stroke engine will shorten the life of the gasoline engine. • The operating temperature range recommended for the gasoline engine is - 5℃~40℃. : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com Page 20 of 32...
- Page 21 ON position. If the engine stops and cannot be restarted, check the engine oil level before troubleshooting in other areas. : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com...
- Page 22 The air cleaner is a dry type including paper element and foam element. • Remove the clip and dismantle the air cleaner housing or remove the wing nuts and air cleaner cover. : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com Page 22 of 32...
- Page 23 Pull the choke rod to the CLOSE position. Adjust throttle to proper position. Pull the starter grip lightly until resistance is felt, then pull it rapidly (1) Fuel Valve (2) Start Level (3) Drain Plug : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com Page 23 of 32...
- Page 24 ENGINE SWITCH NOTE: Restrict the starting time within 5 seconds to avoid engine damage. If engine cannot be started, release starter knob, retry after 10 seconds. : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com Page 24 of 32...
- Page 25 Stop the engine before doing any maintenance work. If the engine must be operated, provide adequate ventilation. Breathing in exhaust can cause loss of consciousness and even lead to death. : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com Page 25 of 32...
- Page 26 Engine switch Lower level Check aging of fuel pipe every 2 years. If ageing, hardening and cracking is detected, have it replaced. Tighten the joints, and check leakage. : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com Page 26 of 32...
- Page 27 Allow the engine to cool down before transporting or storing the engine. • During transport of the engine, turn the engine switch and the fuel valve to OFF. Keep the engine cool. : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com Page 27 of 32...
- Page 28 Check the fuel. Please strain out the gasoline in fuel tank and in carburetor, and fill in new gasoline. • For any other trouble, please contact our dealer. : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com Page 28 of 32...
- Page 29 KisanKraft ® PRODUCT RANGE KisanKraft has a large range of products to serve the farmers. A list of our products is given below: Brush Cutters and Accessories Cultivators and Accessories Brush Cutter/Power Weeder Petrol and Diesel Backpack Brush Cutter Sprayers and Accessories...
- Page 30 KisanKraft ® Wide Range of Products for Every Need MISSED CALL: 07676065555 For more information give Many of our products have BIS: ISI certification. : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com Page 30 of 32...
- Page 31 Incidental / Consequential Loss: for general damages, including bodily injuries, or for incidental or consequential damages This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp. KisanKraft Limited : info@kisankraft.com...
- Page 32 (invoice/receipt). KisanKraft Limited, its manufacturers and its dealers reserve the right to inspect the claimed defective part(s) to determine if the malfunction is the result of a defect covered by this warranty. Please note that the decision of KisanKraft Limited with respect to any warranty claim is final.
