KISANKRAFT KK-SPR-1201P Operation Manual

Self propelled reaper

Advertisement

KisanKraft
SELF PROPELLED
Product
REAPER
KisanKraft
Brand
 KK-SPR-1201P
Model
 KK-SPR-1202DV
 KK-SPR-1203DH
W
ARRANTY
6
MONTHS
P
ERIOD
Dealer's
Invoice Date
Buyer's Info (Name, Address, Phone,
etc.):
Buyer's Sign
What is covered: KisanKraft Machine Tools Private Limited and its manufacturers
warrant this product to be free from defects in material or workmanship. All parts
defective in material and workmanship are covered.
This warranty will only cover defects arising under normal usage.
This warranty is limited to repair or replacement by KisanKraft Machine Tools Private
Limited or its manufacturers at the premises of Authorized Dealers, of such parts as
appear to KisanKraft or its manufacturers, upon inspection, to be defective in material
and/or workmanship. KisanKraft or its manufacturers make no warranty with respect
to trade accessories not manufactured or sold by them.
What is not covered: The warranty shall become null and void and neither
KisanKraft Machine Tools Private Limited nor any of its manufacturers, nor its
authorized dealers assumes any responsibility, if the failure was caused by the
following:
(1) Operation of product with incorrect fuel or lubricants, (2) Incorrect usage of
machine or misuse, (3) Lack of maintenance, (4) Negligence, (5) Accident or physical
damage, (6) Repairs made by unauthorized parties and/or with unauthorized parts,
(7) Improper set up, adjustments, tampering or altered products
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer's stamp.
KisanKraft Machine Tools Private Limited
: www.kisankraft.com

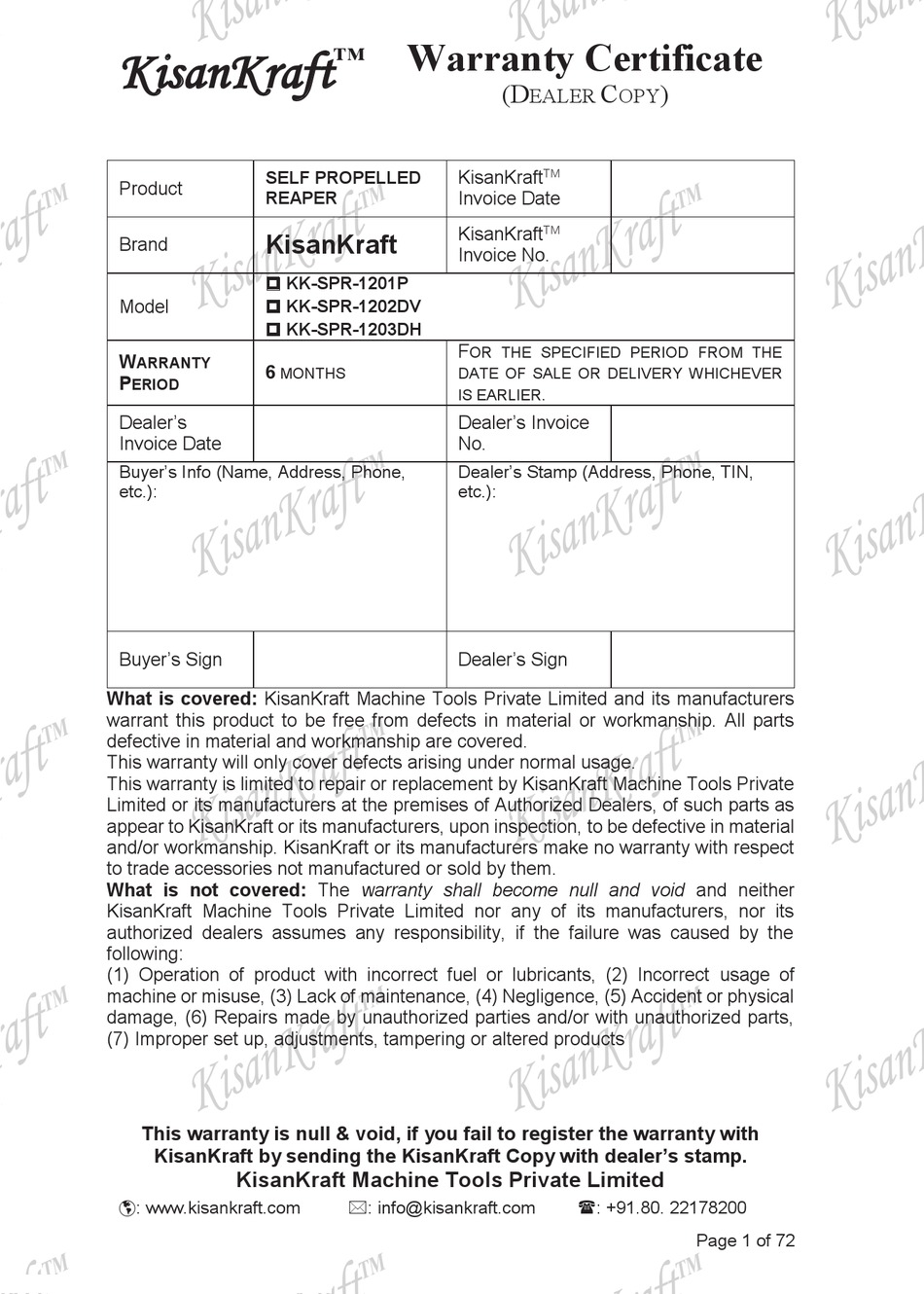

Warranty Certificate
(D
KisanKraft
Invoice Date
KisanKraft
Invoice No.
F
OR THE SPECIFIED PERIOD FROM THE
DATE OF SALE OR DELIVERY WHICHEVER
IS EARLIER
Dealer's Invoice
No.
Dealer's Stamp (Address, Phone, TIN,
etc.):
Dealer's Sign
: info@kisankraft.com
C
)
EALER
OPY
TM
TM
.
: +91.80. 22178200
Page 1 of 72

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KK-SPR-1201P and is the answer not in the manual?

Questions and answers

Summary of Contents for KISANKRAFT KK-SPR-1201P

  • Page 1 This warranty will only cover defects arising under normal usage. This warranty is limited to repair or replacement by KisanKraft Machine Tools Private Limited or its manufacturers at the premises of Authorized Dealers, of such parts as appear to KisanKraft or its manufacturers, upon inspection, to be defective in material and/or workmanship.
  • Page 2 Private Limited, its manufacturers and its dealers reserve the right to inspect the claimed defective part(s) to determine if the malfunction is the result of a defect covered by this warranty. Please note that the decision of KisanKraft Machine Tools Pvt Ltd with respect to any warranty claim is final.
  • Page 3 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Operation Manual KisanKraft Machine Tools Pvt. Ltd. Sri Huchhanna Tower, #4,1 Main,7-A Cross, Maruthi Layout, Dasarahalli, HAF Post, Hebbal, Bangalore 560024,Karnataka,INDIA ♦ Bangalore (HO) ♦ Ahmedabad ♦ Bhopal ♦ Bhubaneswar ♦ Coimbatore ♦...
  • Page 4: Table Of Contents

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH CONTENTS BEFORE GETTING STARTED ................ 7 SAFETY INSTRUCTIONS ................7 MAIN FUNCTION AND APPLICABLE RANGE ..........8 TECHNICAL SPECIFICATIONS ..............9 HARVESTING PROCESS ................11 OVERVIEW ....................12 INSTALLATION & WORKING ..............18 OPERATION .....................
  • Page 5 KisanKraft or its manufacturers make no warranty with respect to trade accessories not manufactured or sold by them. What is not covered: The warranty shall become null and void and neither KisanKraft Machine Tools Private Limited nor any of its manufacturers, nor its authorized dealers...
  • Page 6 Private Limited, its manufacturers and its dealers reserve the right to inspect the claimed defective part(s) to determine if the malfunction is the result of a defect covered by this warranty. Please note that the decision of KisanKraft Machine Tools Pvt Ltd with respect to any warranty claim is final.
  • Page 7: Before Getting Started

    KK-SPR-1201P / 1202DV / 1203DH BEFORE GETTING STARTED Thanks for buying KisanKraft’s KK-SPR-1201P/1202DV/1203DH Self Propelled Reaper. This machine has features like simple and solid structure, easy operation and maintenance, is very popular among farmers. It occupies less volume, light in weight and has fuel efficient engine with high performance and provides safe operation.
  • Page 8: Main Function And Applicable Range

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH 15. When turning or moving the machine in reverse direction, reduce the accelerator and stop cutting. 16. Do harvesting only when the machine runs stably. Ensure the machine is in good working condition, with the handles flexible and reliable, and the transmission parts running normally.
  • Page 9: Technical Specifications

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH TECHNICAL SPECIFICATIONS Performance Index: If there is no weed on the cutting line, the crop is standing erect, the natural height of the paddy is 500-1000mm, the lodge angle is less than 10 , and the wind power is not more than 3m/s, the machine’s performance index is as follows:...
  • Page 10 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Item Index Fuel Consumption Ratio ≤395 g/kWh Net Weight 17 Kgs Fuel Petrol Strokes Reaper cutting 4-lines at a time Row gap 300 mm Reaper cutting width total 1200 mm...
  • Page 11: Harvesting Process

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH HARVESTING PROCESS This machine is driven by a petrol or diesel engine. The power is output to the chain wheel through the gear box, and then to the gear case of the cutting platform. Then, it drives the cutting knife moving through the gear case, the eccentric wheel and the connecting rod.
  • Page 12: Overview

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH OVERVIEW The machine is mainly made up of the grain-lifter, the cutting-platform support, the gear- box assembly, the diesel engine, the handrail frame subassembly, etc.as shown below. Schematic of the machine...
  • Page 13 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Transmission shaft combination Clutch cable Entrusted sprocket Tailgate Tensioning sprocket On next conveyor chain Gear box combination Passive guide sprocket Connection frame 10. Conveyor support Plate Cutter: The cutter is installed on the lower part of the cutting platform, which is the main working part of the machine.
  • Page 14 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH transmission sprocket of conveying axle, bearing UC205, eccentric wheels welding bearing 1203, and connecting rod bushing. Gear Case Subassembly Gear Transmission Shaft Of Gear Case A Pair Of Clutches Transmission Sprocket Of...
  • Page 15 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Over the conveyor drive Under the conveyor drive wheel wheel Conveyor chain 6203 bearing Conveyor tension sprocket Flat bearing 6202 bearing Drive axle 10. Tension wheel strut on the Drive sprocket...
  • Page 16 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH the turning clutch tie rod, the handle’s strut beam, the accelerators pull wire, and the handle’s bent beam and the clutching handle. Gear Box Assembly: Gearbox unit is installed in the rear of the harvest, its power comes from the engine and is transmitted to the respective wheel and cutting units.
  • Page 17 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Spring Elastic pad Ball Hexagonal bolt Thick gasket Reverse fork shaft Washer Inverted fork Body-Forward Block Forward fork FORK-axis forward Differentials Differential fork Hexagonal bolt Fork a fixed set of three...
  • Page 18: Installation & Working

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Transmission System Schematic Diesel engine Upper conveying chain Gear box assembly Eccentric connecting rod organ Gear case subassembly Lower conveying chain Grain lifter Cutter INSTALLATION & WORKING The machine is packaged and delivered with the separated cutting platform, the upper baffle, the grain-lifter, the divider, the moving organ, the upper catch lever, the engine, etc.
  • Page 19 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH split pin. It is available to adjust the length of the pulling line by adjusting the two fixed nuts. Please fasten the two nuts after adjusting to the proper position.
  • Page 20 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Working of Cutter The working faces of the moving and fixed knives should be on the same plane, with the difference not more than 5mm.the space in the front should be not more than 0.4mm, and the space on the back should be not more than 1.5mm.
  • Page 21 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Working: Please make sure that the turning clutch works properly. If the handle cannot be reset while clenching the handle and unlocking, shake the machine to observe if the handle resets and adjust the gap of the handle to 0-1mm using bolt.
  • Page 22: Operation

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH OPERATION Warning: Please refer to the following regulations to avoid any accident.  Install the shell removed after checking and Working. Don’t put any flammable things near the vent of the muffler.
  • Page 23 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH If the weather is windy, harvest crosswind, so as to improve the performance. When the machine walks downhill, increase the resistance manually (because the clutch is with single-direction connecting tines).
  • Page 24: Troubleshooting

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH TROUBLESHOOTING Problem Probable Cause Remedy The upper & lower conveying Adjust the tension of the upper & chains are lost or broken lower conveying chains. The crop is too wet, with dew or Harvest after the crop is quite dry.
  • Page 25: Maintenance & Storage

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH MAINTENANCE & STORAGE Note: It is required to add the oil and have the check on the flat field after stopping the engine. Maintenance: The cutting performance would be influenced if the knife is blunt or broken. It is advised to grind or replace the knife.
  • Page 26: Parts Diagram & List-Reaper

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Unload the conveying chain, and store with the cutting platform together. The cutting platform should be stored in a clean, dry and rainproof place. The tine of the grain lifter should be inward, so as to avoid any accident. In addition, it is strictly forbidden to place anything on the cutting platform.
  • Page 27 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Steering Shaft S. No KK-Part No Parts Name B2-1 Steering shaft seat B2-2 Bearing 6304 B2-3 Spring 28x32x3 B2-4 Steering gear B2-5 Steering shaft B2-6 Middle gear for steering 52...
  • Page 28 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Gear Shifting Shaft S. No KK-Part No Parts Name B3-1 Main shaft bearing seat B3-2 Bearing 6304 B3-3 Gear shifting shaft B3-4 Gear shifting shunt-wound gear B3-5 Bearing 6205 B3-6...
  • Page 29 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Reverse Gear Shaft S. No KK-Part No Parts Name B4-1 Reverse gear shaft B4-2 Reverse gear tooth Reverse Gear Shifting Fork S. No KK-Part No Parts Name B5-1 Shifting fork ball M8...
  • Page 30 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Gear Shift Shifting Fork Assembly S. No KK-Part No Parts Name B6-1 Gear shift shifting fork shaft B6-2 Gear shift shifting fork B6-3 Shifting fork spring 8x17x1 B6-4 Shifting fork ball 8 Steering Shifting Fork Assembly S.
  • Page 31 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Standpipe Assembly S. No KK-Part No Parts Name B8-1 Paper mat(main shaft bearing seat) B8-2 Stand pipe B8-3 Ball head hold-down plate A B8-4 Rubber dust cover B8-5 Ball head hold-down plate B...
  • Page 32 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Gear Shifting Rod Assembly S. No KK-Part No Parts Name B9-1 Gear shifting rod sleeve B9-2 Gear indicator B9-3 Gear shifting straight rod B9-4 Gear shifting rod handle ball B9-5...
  • Page 33 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Clutch Shaft Assembly S. No KK-Part No Parts Name B10-1 Clutch Assy B10-2 Thrust bearing 688808 B10-3 Clutch separator B10-4 Buy # B10-6 B10-5 Bearing 6205 B10-6 Clutch seat B10-7...
  • Page 34 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH S. No KK-Part No Parts Name B10-12 Spring washer M10 B10-13 Flat washer M10 B10-14 Nut M10 B10-15 Bolt M8x25 B10-16 Spring washer M8 B10-17 Nut M8 B10-18 Bolt M6x20...
  • Page 35 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Herringbone Gear S. No KK-Part No Parts Name B11-1 B11-2 B11-3 Input chain wheel B11-4 Transmission case B11-5 B11-6 Chain 68 B11-7 Chain 46 B11-8 Bolt M10x110 B11-9 Bolt M10...
  • Page 36 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH S. No KK-Part No Parts Name B11-12 Bolt M12x35 B11-13 Bolt M12 B11-14 Spring washer M12 B11-15 Flat washer M12 B11-16 Bolt M10x25 B11-17 Spring washer M10 B11-18 Flat washer 35x10x3...
  • Page 37 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH S. No KK-Part No Parts Name B12-1 Belt cover rack B12-2 Belt cover B12-3 U-steel connecting seat 36x54x200x3 B12-4 Pulley 85 B12-5 Power engine 170F B12-6 Bolt M10x25 B12-7 Nut M10...
  • Page 38 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH S. No KK-Part No Parts Name B13-1-2 Cable Stopper B13-2 Throttle cable B13-3 Walking clutch wire 1060 MM B13-4 Cutting table clutch wire 1570 MM B13-5 Belt B 1219 Handle Rack Assembly S.
  • Page 39 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH B14-7 Pulling rod cover B14-8 Bolt M10x30 B14-9 Bolt M10x60 B14-10 Bolt M10 B14-11 Spring washer M10 B14-12 Flat washer M10 B14-13 Bolt M10 x 25 Cover Tensioning Part S. No...
  • Page 40 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Cutting Table Chain Wheel Tensioning Assembly S. No KK-Part No Parts Name B16-1 Tensioning wheel location shaft B16-2 Tensioning wheel torsional spring B16-3 Tensional wheel push B16-4 tensional wheel shaft...
  • Page 41 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Cutting Table Gear Transmission S. No KK-Part No Parts Name R17-1 Bolt M8x20 R17-2 Washer M8 R17-3 Washer M8 R17-4 Reaper Input Sprocket 15 Teeth R17-5 Bolt M6x15 R17-6 Washer M6...
  • Page 42 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH S. No KK-Part No Parts Name R17-10 Key 6x6x25 R17-11 Key 6x6x35 R17-12 Spring R17-13 Reaper Clutch Sleeve R17-14 Bearing 8107 R17-15 Shifting fork Shaft R17-16 Shifting fork R17-17 Reaper Transmission box body...
  • Page 43 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH S. No KK-Part No Parts Name R17-34 Big Bevel Gear 28 Teeth R17-35 Spacer Ring R17-36 Oil Seal 25x40x10 R17-37 Gland R17-38 Bolt M6x25 R17-39 Key 6x6x20 R17-40 Reaper Output Shaft...
  • Page 44 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Reaper Frame Assembly S. No KK-Part No Parts Name R18-1 Nut M10 R18-2 Washer M10 R18-3 Washer M10 R18-4 Convey Chain 19 Teeth Convey chain Tension Adjusting Sprocket supporting R18-5...
  • Page 45 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH S. No KK-Part No Parts Name R18-12 Convey Chain Supporting Roller R18-13 Tension Sprocket Shaft R18-14 Tension Sprocket 14 Teeth R18-15 Space Ring R18-16 Split 2x35 R18-17 Pin Shaft R18-18...
  • Page 46 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH S. No KK-Part No Parts Name R18-36 Key 8x7x20 R18-37 Key 6x6x20 R18-38 Convey Chain Transmission Lower Sprocket 20 R18-39 Transmission Shaft Lower Spacer Ring Reaper Panel Assembly : www.kisankraft.com : info@kisankraft.com...
  • Page 47 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH S. No KK-Part No Parts Name R19-1 Hexagon Bolt with Flange M6x15 R19-2 Exit Guide Plate(Lower2) R19-3 Hexagon Bolt with Flange M8x15 R19-4 Exit Guide Plate(Upper2) R19-5 Lock Nut M6...
  • Page 48 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Cutter Assembly S. No KK-Part No Parts Name R20-1 Collar 40 R20-2 Dust Preventing Cover(A) R20-3 Collar 17 R20-4 Bearing 1203 R20-5 Dust Preventing Cover(B) R20-6 Connecting Rod Head Welding(Left)
  • Page 49 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH S. No KK-Part No Parts Name R20-8 Nut M16 ( Left) R20-9 Oil Cup M6 R20-10 Driving Plate R20-11 Rivet 6x15 R20-12 Rivet 6x25 R20-13 Moving Blade Riveted Bar R20-14...
  • Page 50 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Crop Lifting Assembly S. No KK-Part No Parts Name R21-1 Protective jacket R21-2 Support column R21-3 Support R21-4 Crop lifter R21-5/6 Wire A With Compressed spring R21-7 Anti-wind device R21-8...
  • Page 51 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH S. No KK-Part No Parts Name R21-14 Nut M12 R21-15 Bolt M8x20 R21-16 Nut M8 B C D Crop lifter S. No KK-Part No Parts Name R22-1 Protective jacket R22-2...
  • Page 52 ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH S. No KK-Part No Parts Name R22-12 Bolt M12x90 R22-13 Spring washer M12 R22-14 Flat washer M12 R22-15 Nut M12 R22-16 Bolt M8x20 R22-17 Nut M8 Crop Indicating Board S. No...
  • Page 53: Parts Diagram & List - Petrol Engine

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH PARTS DIAGRAM & LIST – PETROL ENGINE Crankcase : www.kisankraft.com : info@kisankraft.com : +91.80.22178200 Page 53 of 72...
  • Page 54: Www.kisankraft.com

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Sl. No KK Part No KK Part Name Crankcase Body Current Amplifier Sway bar Split Clip Side Plate Ball Bearing 6205 Oil seal crankcase(25*41.25*6) Wind guide Drain bolt 1-10 Washer Drain bolt...
  • Page 55: Www.kisankraft.com

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Sl. No KK Part No KK Part Name 1-15 1-16 Bolt M6 x 12 1-17 Bolt M6 x 20 1-18 Rubber wire hoop 1-19 Washer Sway Bar 6x15x0.5 Sl. No...
  • Page 56: Www.kisankraft.com

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Sl. No KK Part No KK Part Name Nut Fly wheel Assy Crankshaft assy. 2-5.1 2-5.2 Timing Gear 2-5.3 Governor Gear 2-5.4 Woodruff key 2-5.5 Flat Key Ignition Coil Assy 2-6.1...
  • Page 57: Www.kisankraft.com

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Sl. No KK Part No KK Part Name Crankcase cover Oil Seal 25x41.25x6 Ball Bearing 6205 Gasket crankcase oil gauge assembly 3-5.1 3-5.2 seal-oil guage Bolt M8 x 30 Oil Plug assembly 3-7.1...
  • Page 58: Www.kisankraft.com

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Sl. No KK Part No KK Part Name Recoil Starter Assy Without fan cover 4-1.1 Fan cover 4-1.2 Pivot bolt M5 x 17 4-1.3 Ratchet guide 4-1.4 Ratchet 4-1.5 4-1.6 Friction Spring 16x1 4-1.7...
  • Page 59: Www.kisankraft.com

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Sl. No KK Part No KK Part Name 1-10 4-1.10 Starter cover 1-11 4-1.11 Rope 1-12 4-1.12 Pulling handle 1-13 4-1.13 Bolt M6x8 Bolt M6x12 Engine switch Sl. No KK Part No...
  • Page 60: Www.kisankraft.com

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Sl. No KK Part No KK Part Name Gasket Cylinder head cover Cylinder head cover Bolt M6x12 Sl. No KK Part No KK Part Name Cam Shaft Assy Tappet Pusher...
  • Page 61: Www.kisankraft.com

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Sl. No KK Part No KK Part Name 6-9.2 6-9.3 6-9.4 6-10 Spring Seat Exhaust Valve 6-11 Cap Exhaust Valve Sl. No KK Part No KK Part Name Connecting rod Assy 7-1.1...
  • Page 62: Www.kisankraft.com

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Sl. No KK Part No KK Part Name Piston Piston Pin Clip Piston Pin Piston Ring Assy 7-5.1 7-5.2 7-5.3 5-3.1 7-5.3.1 5-3.2 7-5.3.2 Sl. No KK Part No KK Part Name Speed Adjustment base parts 8-1.1...
  • Page 63: Www.kisankraft.com

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Sl. No KK Part No KK Part Name Return Spring Fine Adjustment Spring Pulling Rod Quadrate bolt M6x21 Nut M6 Bolt M6 x 12 : www.kisankraft.com : info@kisankraft.com : +91.80.22178200...
  • Page 64: Www.kisankraft.com

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Sl. No KK Part No KK Part Name Carburetor Assy 9-1.1 9-1.2 Throttle Valve Assy 1-2.1 9-1.2.1 1-2.2 9-1.2.2 1-2.3 9-1.2.3 1-2.4 9-1.2.4 9-1.3 Chock Valve Assy 1-3.1 9-1.3.1 1-3.2 9-1.3.2...
  • Page 65: Www.kisankraft.com

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Sl. No KK Part No KK Part Name 1-12 9-1.12 1-13 9-1.13 Rubber seal (Fuel cup) 1-14 9-1.14 Fuel cup 1-15 9-1.15 Fuel drain plug (new) 1-16 9-1.16 Gasket fuel drail plug 1-17 9-1.17...
  • Page 66: Www.kisankraft.com

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Sl. No KK Part No KK Part Name 10-1 Air Cleaner Assy 10-1.1 Air Cleaner Seat Ass. 1-1.1 10-1.1.1 Air Cleaner seat 1-1.2 10-1.1.2 Seal Ring 1-1.3 10-1.1.3 Cover board 1-1.4...
  • Page 67: Www.kisankraft.com

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Sl. No KK Part No KK Part Name 10-1.6 Air duck 10-2 Nut M6 Sl. No KK Part No KK Part Name 11-1 Muffler Ass. 11-1.1 Muffler body 11-1.2 Protector Muffler -A 11-1.3...
  • Page 68: Www.kisankraft.com

    ™ KisanKraft SELF PROPELLED REAPER KK-SPR-1201P / 1202DV / 1203DH Sl. No KK Part No KK Part Name 12-1 Fuel tank ass. 12-1.1 Fuel tank cover Assy. 1-1.1 12-1.1.1 1-1.2 12-1.2 Rubber seal, Fuel tank cover 38x56x3 12-1.2 Fuel filter Assy 1-2.1...
  • Page 69: Www.kisankraft.com

    ™ KisanKraft PRODUCT RANGE KisanKraft has a large range of products to serve the farmers. A list of our products is given below: Brush Cutters and Accessories Cultivators and Accessories Brush Cutter/Power Weeder Petrol and Diesel Backpack Brush Cutter Sprayers and Accessories...
  • Page 70: Www.kisankraft.com

    ™ KisanKraft Wide Range of Products for Every Need MISSED CALL: 07676065555 For more information give Many of our products have BIS: ISI certification. : www.kisankraft.com : info@kisankraft.com : +91.80. 22178200 Page 70 of 72...
  • Page 71: Www.kisankraft.com

    KisanKraft or its manufacturers make no warranty with respect to trade accessories not manufactured or sold by them. What is not covered: The warranty shall become null and void and neither KisanKraft Machine Tools Private Limited nor any of its manufacturers, nor its authorized dealers...
  • Page 72 Limited, its manufacturers and its dealers reserve the right to inspect the claimed defective part(s) to determine if the malfunction is the result of a defect covered by this warranty. Please note that the decision of KisanKraft Machine Tools Pvt Ltd with respect to any warranty claim is final.
