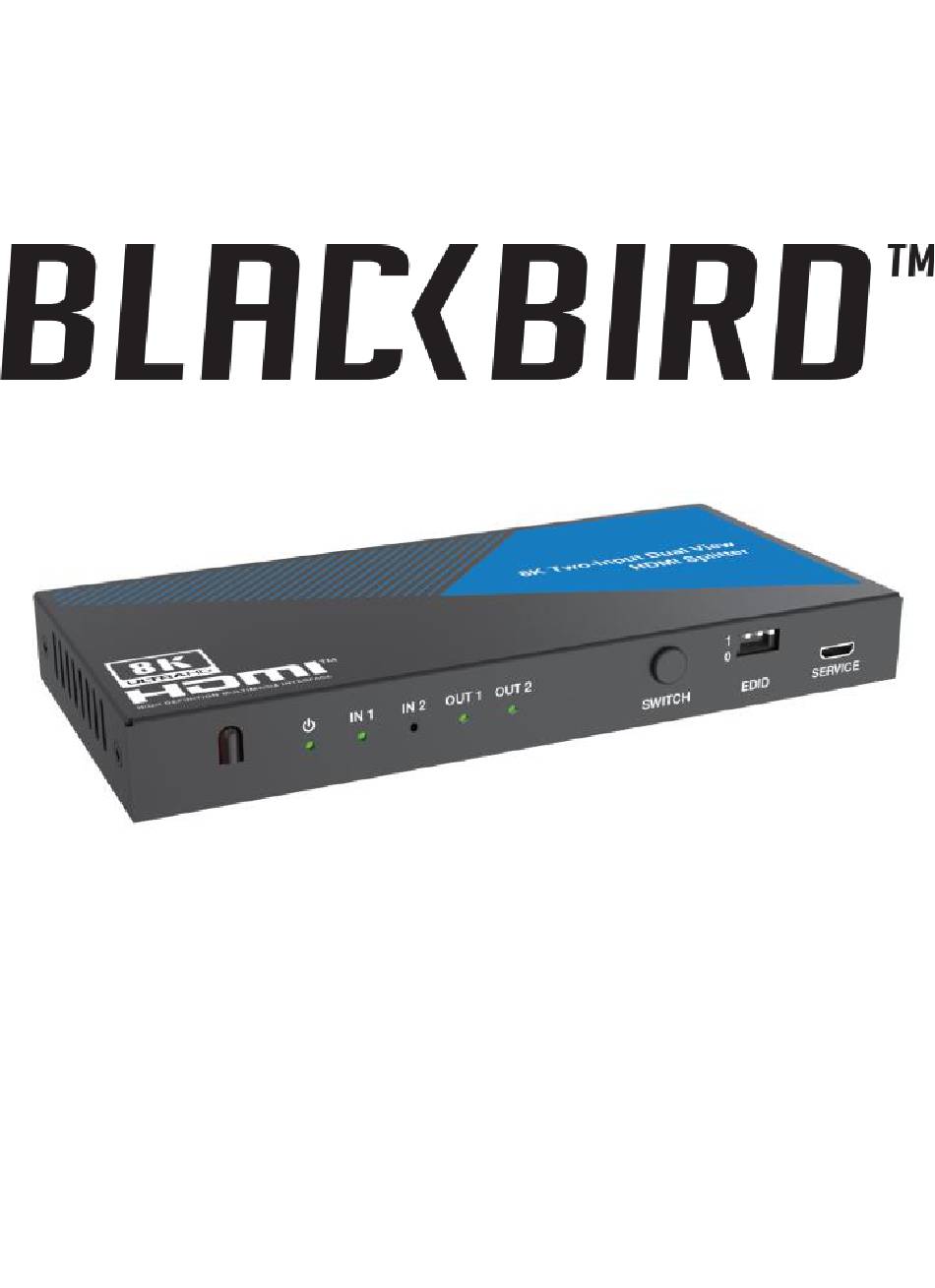

- Page 1 8K Dual Function HDMI® Splitter/Switch P/N 44086 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. •... - Page 3 Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or detergents. For • stubborn deposits, moisten the cloth with warm water. This device has no user serviceable parts. Do not attempt to open, service, or modify this •...
-
Page 4: Customer Service
CUSTOMER SERVICE The Monoprice™ Customer Service department is dedicated to ensuring that your ordering, purchasing, and delivery experience is second to none. If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. - Page 5 IN 1/IN 2: One of the two LEDs will illuminate green when the corresponding input is selected. OUT 1/OUT 2: Each LED illuminates green when there is an active signal and connection for the corresponding output. SWITCH: Press the button two switch between the two inputs. EDID MANAGEMENT EDID: Three DIP switches used to set the EDID®.
-
Page 6: Sample Connection Diagram
SAMPLE CONNECTION DIAGRAM... -
Page 7: Edid Management
HDMI CABLE SELECTION Which type of HDMI® cable you should use depends on the maximum resolution you will be using in your system. The following table details the ideal types and length limits of cable to use under various conditions. Resolution Cable Type Version... -
Page 8: Specifications
SPECIFICATIONS 44086 Inputs 2x HDMI® Outputs 2x HDMI HDMI Version HDCP™ Version 8K@60Hz 10-bit YCbCr 4:2:0 Maximum Video Resolutions 8K@30Hz 10-bit YCbCr 4:4:4 4K@120Hz 10-bit YCbCr 4:4:4 Video Bandwidth 40Gbps Color Depth 8-bit, 10-bit, 12-bit Supported Color Spaces RGB, YCbCr 4:4:4/4:4:2/4:2:0 LPCM, Dolby Digital™, Dolby Digital Plus™, Dolby Digital EX,... -
Page 9: Technical Support
TECHNICAL SUPPORT Monoprice™ is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. - Page 10 Consult the dealer or an experienced radio/TV technician for help. • Monoprice™, Blackbird™, the Blackbird logo, and all Monoprice logos are trademarks of Monoprice Inc. The terms HDMI®, HDMI High-Definition Multimedia Interface®, HDMI Trade Dress®, and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
