Summary of Contents for Blackbird 43962

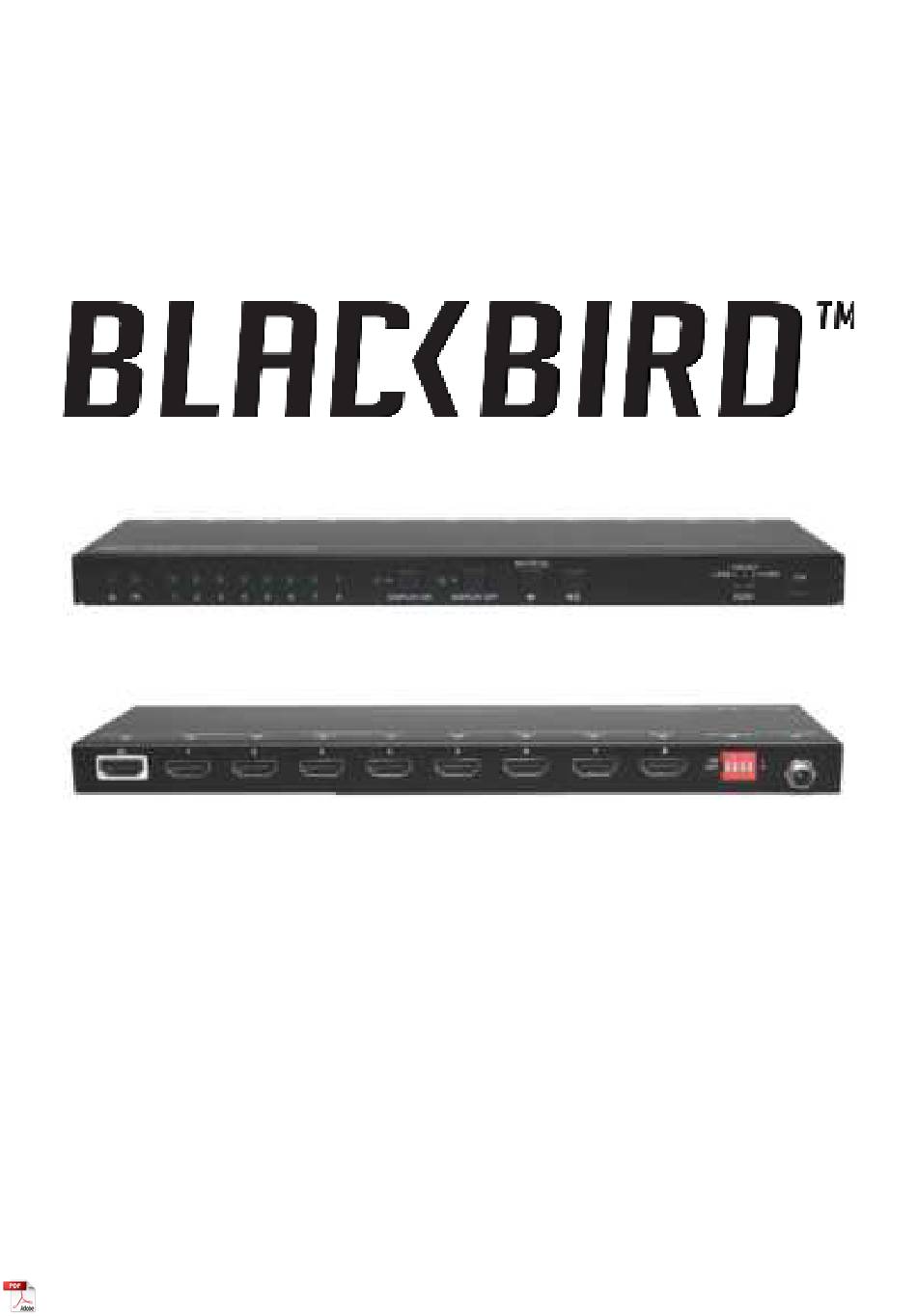

- Page 1 4K Pro 1x8 HDMI® Splitter P/N 43962 User's Manual...
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS AND GUIDELINES ......................3 INTRODUCTION .................................. 4 FEATURES ....................................5 CUSTOMER SERVICE................................5 PACKAGE CONTENTS ..............................6 PRODUCT OVERVIEW ..............................6 Front Panel ..................................6 Rear Panel ..................................7 SAMPLE CONNECTION DIAGRAM ........................8 VIDEO DOWNSCALING ..............................9 EDID MANAGEMENT ..............................10 FIRMWARE UPGRADE .............................. -
Page 3: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. • This device is intended for indoor use only. •... -
Page 4: Introduction
• Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or detergents. For stubborn deposits, moisten the cloth with warm water. • This device has no user serviceable parts. Do not attempt to open, service, or modify this device. INTRODUCTION This 4K Pro 1x8 HDMI®... -
Page 5: Features
FEATURES • Distributes a single HDMI® input to eight HDMI displays • Supports video resolutions up to 4K@60Hz with the YCbCr 4:4:4 color space • Supports all HDMI 1080p 3D modes • Supports multichannel, high-definition audio • Fully complies with the HDMI 2.0 and HDCP™ 2.2 specifications and is backwards compatible with HDCP 1.4 •... -
Page 6: Package Contents
PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice™ Customer Service for a replacement. 1x 4K Pro 1x8 HDMI® Splitter 1x AC Power Adapter (12 VDC, 1A) 2x Mounting Ears 4x Mounting Screws 4x Plastic Feet... -
Page 7: Rear Panel
DISPLAY OFF: Press the button to turn off the connected displays. The LED blinks green when the signal is sent. Note that the connected displays must support the CEC feature to be controlled by the splitter. VOL-/MUTE/3s: Momentarily press the button to decrease the volume level of the connected displays. -
Page 8: Sample Connection Diagram
OUT 1~8: Eight HDMI® ports for connecting the displays. EDID PRESET: 4-pin DIP switch for setting the EDID PRESET data that is used when the EDID switch on the front panel is set to the PRESET EDID MANAGEMENT position. Refer to the section for details. -
Page 9: Video Downscaling
VIDEO DOWNSCALING The system supports automatic downscaling of the 4K input signal when connected to one or more 1080p displays. The following table shows the input and output resolutions, refresh rates, and color spaces. Input Output Color Color Resolution Refresh Resolution Refresh Space... -
Page 10: Edid Management
EDID MANAGEMENT The system has 15 EDID® presets built-in. The following table shows the details for each preset. Note that EDID preset 10 is the system default. Preset Switches EDID Settings 0000 Get the EDID data from the display connected to OUT 1 0001 Get the EDID data from the display connected to OUT 2 0010... -
Page 11: Firmware Upgrade
FIRMWARE UPGRADE The firmware in this switch can be upgraded. If an upgraded firmware is available, it can be downloaded from the 43962 page on the www.monoprice.com website or from the Downloads section. Download the firmware upgrade zip file and extract the firmware file (.bin). -
Page 12: Specifications
To download the latest drivers, firmware, manuals, etc., go to www.monoprice.com and type the P/N into the search bar. If available, support files are linked at the bottom of the product page. SPECIFICATIONS 43962 Video Inputs 1x HDMI® Video Outputs... -
Page 13: Regulatory Compliance
REGULATORY COMPLIANCE Notice for FCC This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 14: Notice For Industry Canada
This Class B digital apparatus complies with Canadian ICES-003.0 Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Monoprice™, Blackbird™, the Blackbird logo, and all Monoprice logos are trademarks of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
