- Page 1 4K 1x2 HDMI® Splitter P/N 36741 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. •... - Page 3 INTRODUCTION This Blackbird™ 4K 1x2 HDMI® Splitter distributes a single 4K HDMI signal to two HDMI displays. It supports video resolutions up to 4K@60Hz with YCbCr 4:4:4 color space and can independently scale each output from 4K to 1080p when connected to a 1080p display.
-
Page 4: Customer Service
FEATURES Distributes a single HDMI® signal to two HDMI displays • Supports video resolutions up to 4K@60Hz with YCbCr 4:4:4 color space • Fully complies with the HDMI 2.0 and HDCP™ 2.3 specifications • Up to 18Gbps video bandwidth • Supports Dolby Vision™... -
Page 5: Package Contents

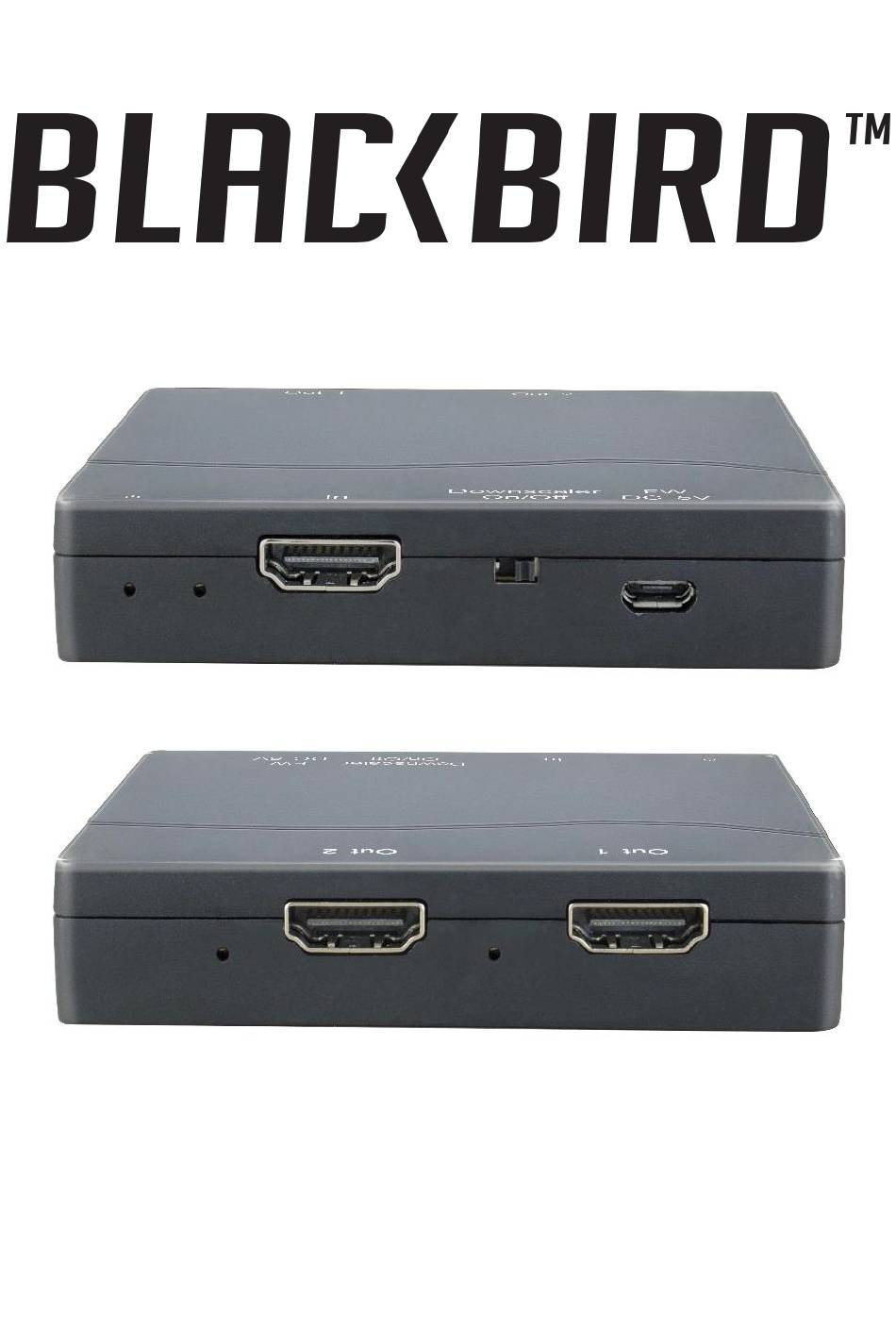

PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice™ Customer Service for a replacement. 1x 4K 1x2 HDMI® Splitter 1x AC Power Adapter (5 VDC, 1A) 1x User's Manual PRODUCT OVERVIEW Power: The LED illuminates red when power is applied. -
Page 6: Sample Connection Diagram
SAMPLE CONNECTION DIAGRAM VIDEO DOWNSCALING The system supports automatic independent downscaling of the 4K input signal for each output when connected to a 1080p display. The following table shows the input and output resolutions, refresh rates, and color spaces. Input Output Color Color... -
Page 7: Firmware Upgrade
Perform the following steps to upgrade the system firmware, in the event that an upgrade is available. Go to the www.monoprice.com website and type 36741 in the search bar. Locate the Support Files section at the bottom of the page, then download the firmware upgrade zip file. -
Page 8: Specifications
SPECIFICATIONS 36741 Video Inputs 1x HDMI® Video Outputs 2x HDMI Maximum Video Resolution 4K@60Hz with YCbCr 4:4:4 color space HDMI Version HDCP™ Version Video Bandwidth up to 18Gbps 4K@60Hz 4:4:4: ≤ 16 feet (5 meters) Maximum Total Cable Lengths 4K@60Hz 4:2:0: ≤ 32 feet (10 meters) 1080p@60Hz: ≤... -
Page 9: Technical Support
TECHNICAL SUPPORT Monoprice™ is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. - Page 10 Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Monoprice™, Blackbird™, the Blackbird logo, and all Monoprice logos are trademarks of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
