P4BEA User's Manual
2.2

Installation of CPU (For Socket 478 CPU)

Before installing CPU, make sure the power is off. Locate the level bar on the mPGA478
ZIF socket. Push level bar away from the socket and pull upward 90 degrees. Insert the
CPU into the socket. Be careful of CPU orientation. Make sure the notch of the CPU
corresponds with the white dot on the ZIF socket (the corner without pin socket). Do not
push in the CPU. Make sure all pins are aligned with the CPU socket on the level bar.
2.3

Installation of Memory

This motherboard has 2x184-pin 64-bit Dual Inline Memory Module (DIMM) sockets
divided into 4 banks. You can install 2.5V Unbuffered PC1600/2100-compliant
Synchronous DRAM (DDR DRAM) memory.
Some DIMM memory has SPD (Serial Presence Detect) 8-pin IC on module. It is not
recommended the SPD (Serial Presence Detect) DIMM blends and non-SPD DIMM.
2.3.1

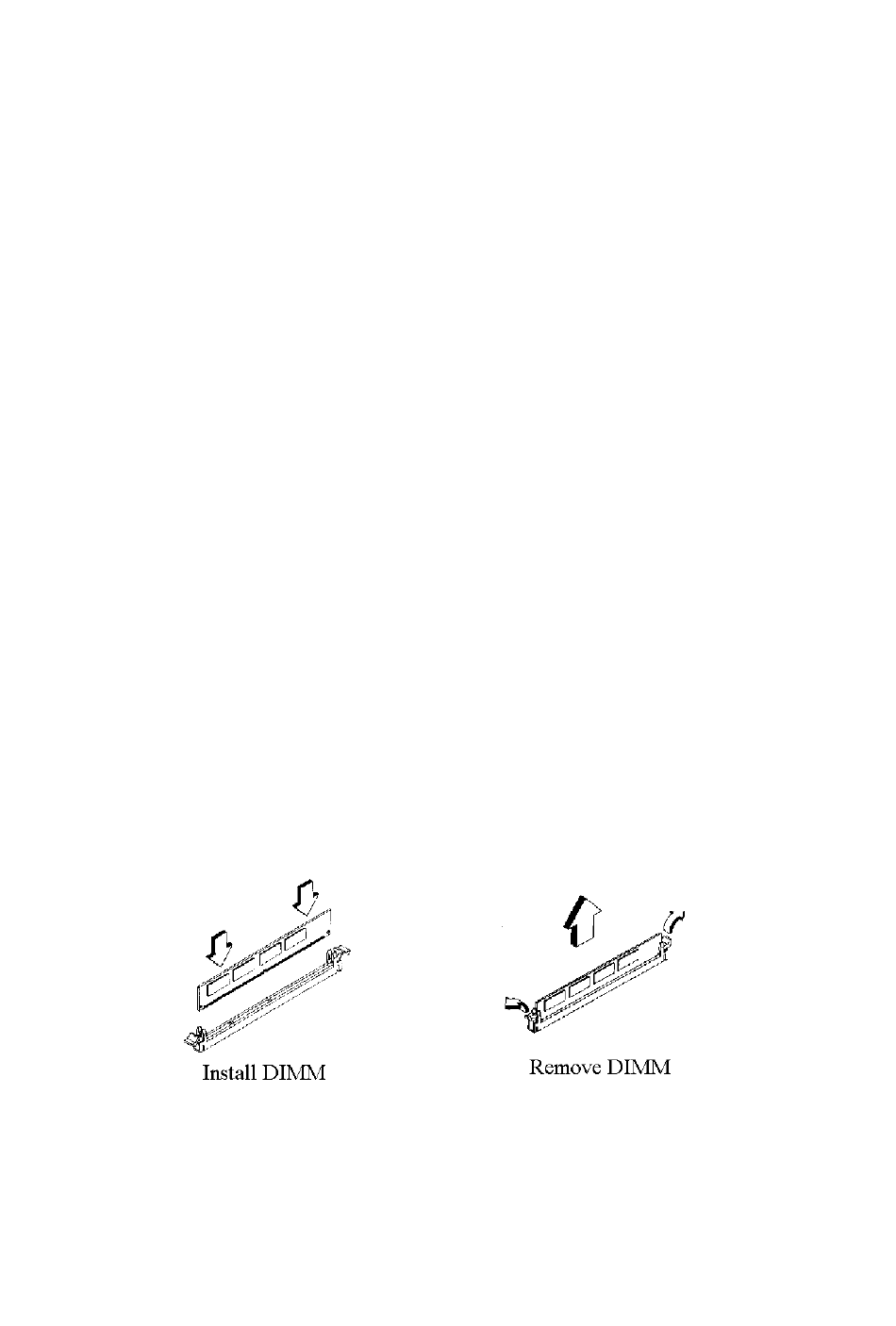

Installation of 184-pin DIMM (Dual Inline Memory Module)

1. Before inserting the DIMM, make sure the pin1 of the DIMM matches with the pin1 on
the DIMM socket.
2. Insert DIMM into the DIMM sockets at a 90-degree angle and press down.
2.3.2

Removal of 184-pin DIMM

1.Press the holding clips on both sides of the socket outward to release the DIMM.
2.Gently pull the DIMM out of the socket.
16
