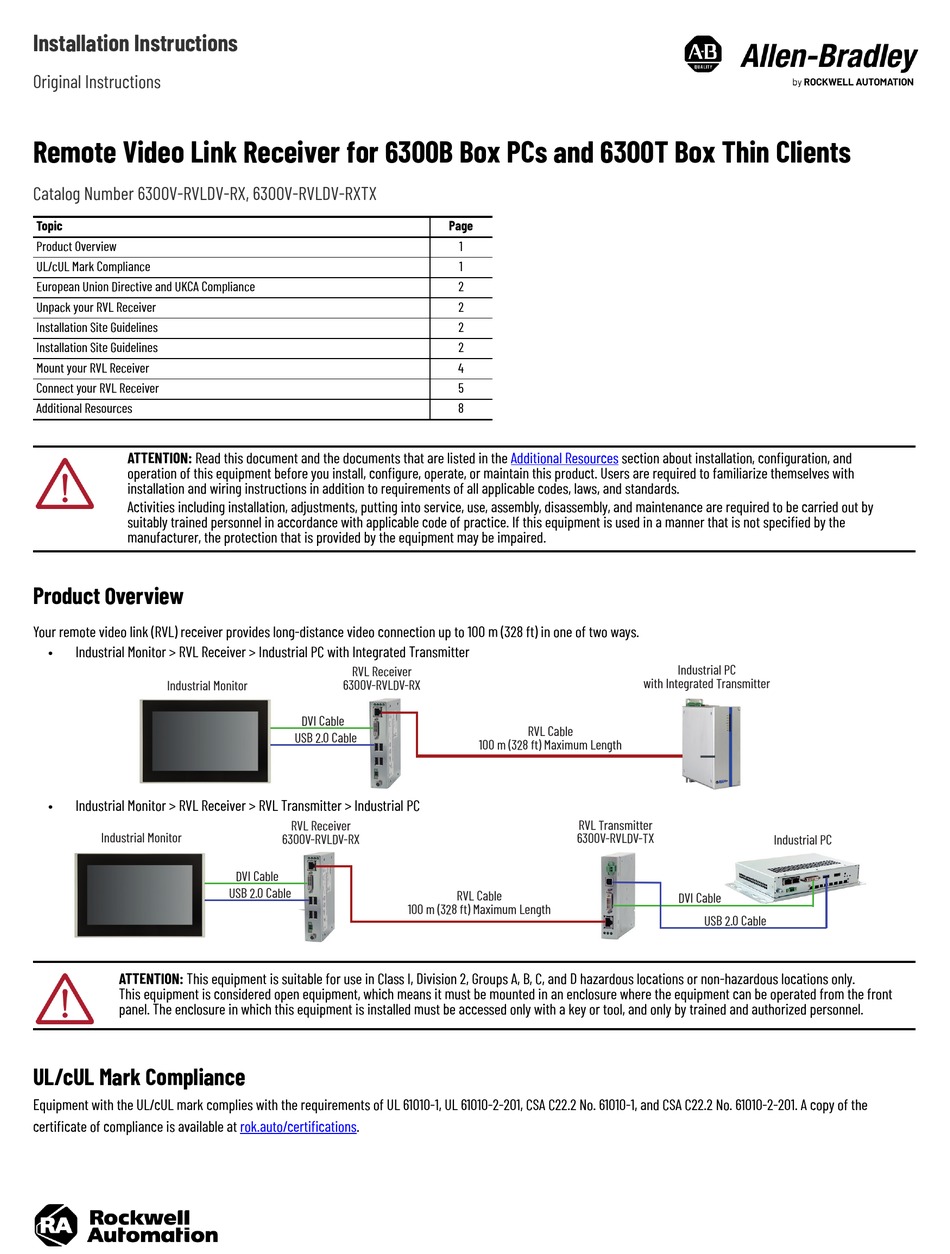

Installation Instructions
Original Instructions
Remote Video Link Receiver for 6300B Box PCs and 6300T Box Thin Clients
Catalog Number 6300V-RVLDV-RX, 6300V-RVLDV-RXTX
Topic
Product Overview
UL/cUL Mark Compliance
European Union Directive and UKCA Compliance
Unpack your RVL Receiver
Installation Site Guidelines
Installation Site Guidelines
Mount your RVL Receiver
Connect your RVL Receiver
Additional Resources
ATTENTION: Read this document and the documents that are listed in the
operation of this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize themselves with
installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards.
Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to be carried out by
suitably trained personnel in accordance with applicable code of practice. If this equipment is used in a manner that is not specified by the
manufacturer, the protection that is provided by the equipment may be impaired.
Product Overview
Your remote video link (RVL) receiver provides long-distance video connection up to 100 m (328 ft) in one of two ways.
•
Industrial Monitor > RVL Receiver > Industrial PC with Integrated Transmitter
Industrial Monitor
•
Industrial Monitor > RVL Receiver > RVL Transmitter > Industrial PC
Industrial Monitor
ATTENTION: This equipment is suitable for use in Class I, Division 2, Groups A, B, C, and D hazardous locations or non-hazardous locations only.
This equipment is considered open equipment, which means it must be mounted in an enclosure where the equipment can be operated from the front
panel. The enclosure in which this equipment is installed must be accessed only with a key or tool, and only by trained and authorized personnel.
UL/cUL Mark Compliance
Equipment with the UL/cUL mark complies with the requirements of UL 61010-1, UL 61010-2-201, CSA C22.2 No. 61010-1, and CSA C22.2 No. 61010-2-201. A copy of the
certificate of compliance is available at rok.auto/certifications.
RVL Receiver
6300V-RVLDV-RX
DVI Cable
USB 2.0 Cable
RVL Receiver
6300V-RVLDV-RX
DVI Cable
USB 2.0 Cable
100 m (328 ft) Maximum Length
Page
1
1
2
2
2
2
4
5
8
Additional Resources
section about installation, configuration, and
RVL Cable
100 m (328 ft) Maximum Length
RVL Transmitter
6300V-RVLDV-TX
RVL Cable
Industrial PC
with Integrated Transmitter
Industrial PC
DVI Cable
USB 2.0 Cable
