Microtek LightLid

Series Products

Installation and Scanning Guide

This document provides information on how to connect the LightLid to your scanner and how to scan transparent

materials with it.

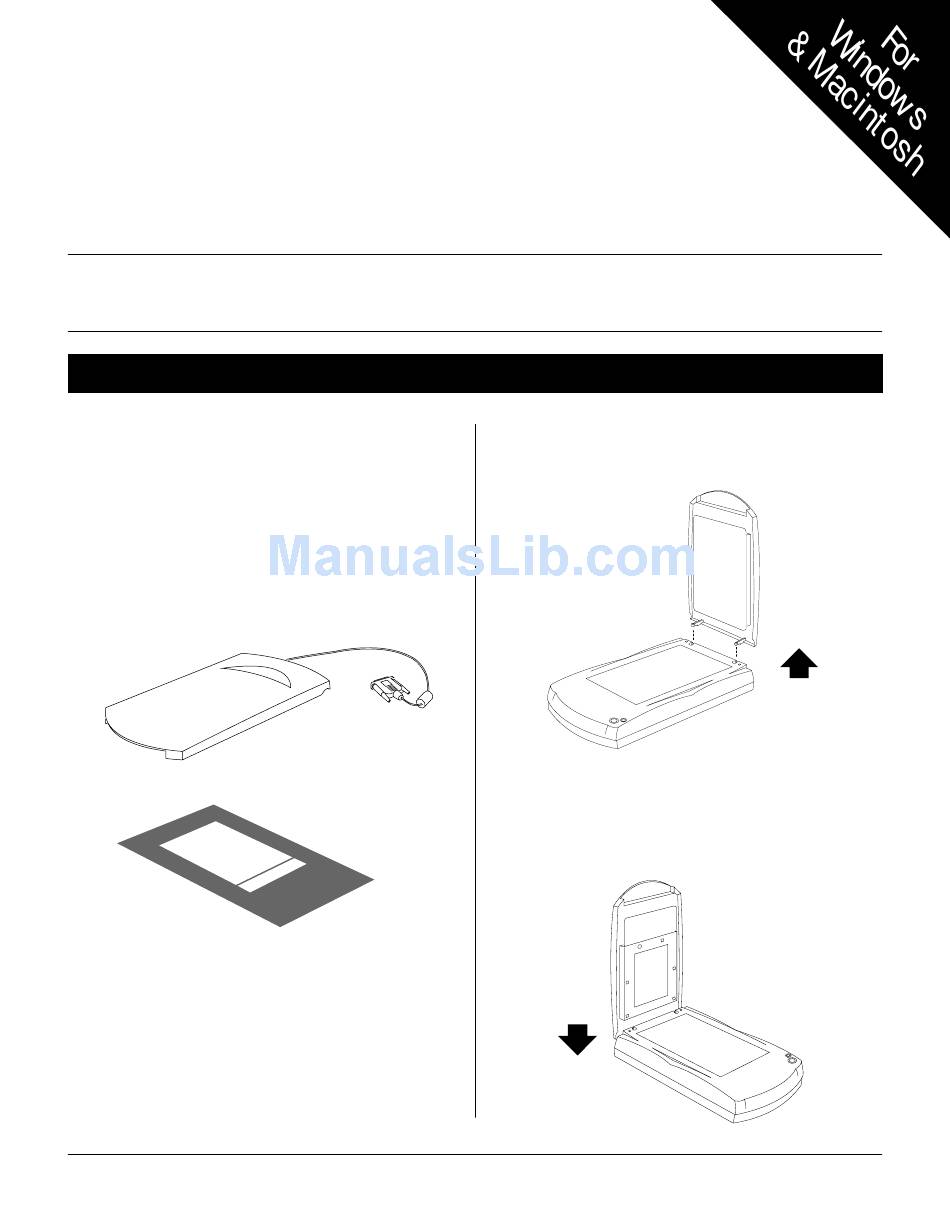

1. Unpack LightLid

The LightLid is a scanner accessory that is used to

scan transparent materials with your flatbed

scanner. Before proceeding any further, check to see

that all items are in the package. If any item is

missing, contact Microtek Customer Service.

LightLid

: Before installing the LightLid, your scanner

NOTE

should be installed and ready to scan.

2. Turn off your scanner,

then computer

Installation

Template

3. Remove the scanner

lid

Insert the two LightLid guide pins into your scanner.

I49-02802A, January 2000

Table of Contents

Do you have a question about the LightLid EL and is the answer not in the manual?

Page 1 : Before installing the LightLid, your scanner NOTE should be installed and ready to scan. 2. Turn off your scanner, then computer Copyright © 2000 Microtek International Inc. Installation 3. Remove the scanner 4. Install LightLid Insert the two LightLid guide pins into your scanner.
Page 2 5. Connect LightLid to your scanner Plug the LightLid connector into the 15-pin Accessory port on the back of your scanner. 6. Peel off the protective vinyl film Peel off the protective vinyl film from the back of the template. The protective vinyl film covers the template during shipping and prevents it from being scratched.
Page 3 9. Position the material to be scanned Place the transparent material to be scanned, face down on the scanner glass surface, inside the template. Close-up view Make sure the film being scanned does not in any way block, obstruct, or overlap the clear opening strip of the template.
Page 4 10. Scan an Image 1. Power up your scanner and then the computer. 2. Press the scanner’ s “Go” button, or double-click the ScanWizard 5 icon on the desktop to launch ScanWizard 5. 3. When ScanWizard 5 launches, it automatically performs a fast preview of the material on your scan bed and displays it in the preview area.
