e. Insert the fuse you removed from the fuse panel into the slot closest to the blades on the fuse tap.
Note
If the original fuse is a low-profile mini type, use the new 10A mini type fuse instead (included).
f. Insert a new 20A fuse into the slot furthest away from the fuse tap blades.
Input power
g. Insert the fuse tap into the empty Switched fuse slot in the fuse panel.
Caution

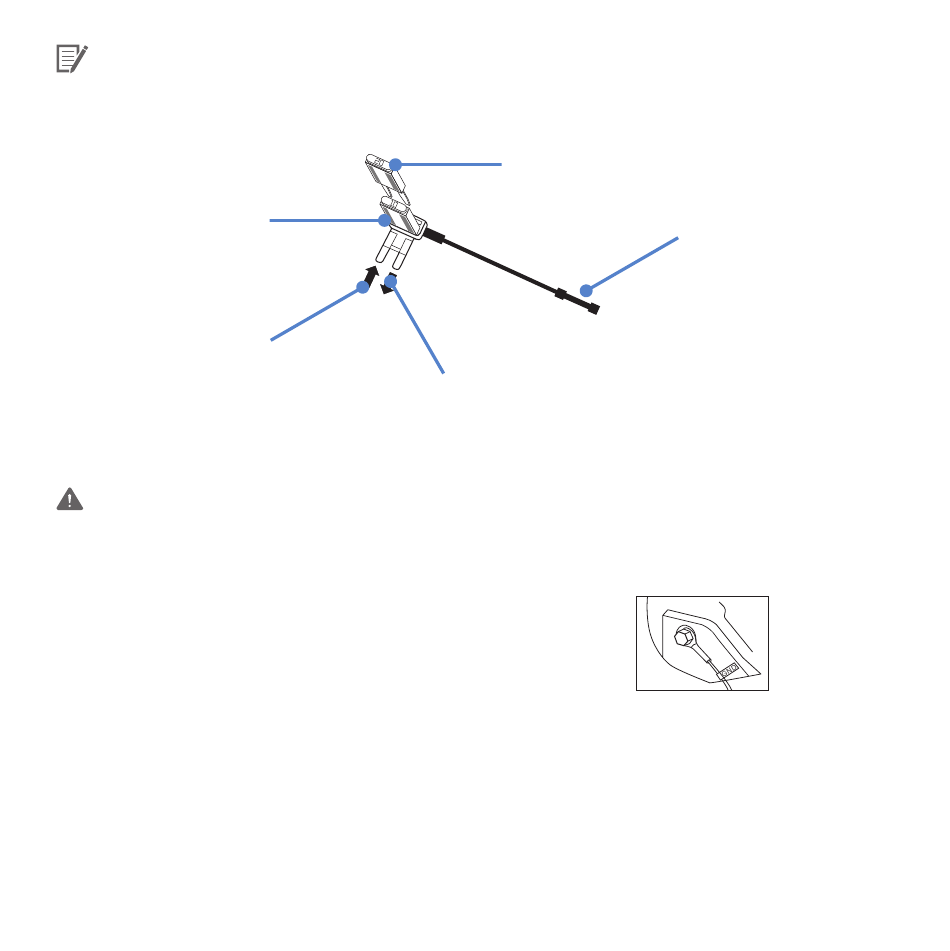

Refer to the diagram and insert the fuse tap in the correct orientation. In the correct orientation the new fuse (f.) gets
power directly from the fuse slot without putting an additional load on the original fuse (e.). If you insert the fuse tap
in the reversed orientation the additional load on the original fuse may cause it to blow.
h. Connect the ground wire (ring) to a ground point, such as a bolt, that is
directly on a bare metal part of the vehicle's frame. Secure the ground
wire to the bare metal frame (for example by securing it under the bolt).
10
BLACKVUE
e.
Output power
f.
Connector to hardwiring
power cable (ACC)
