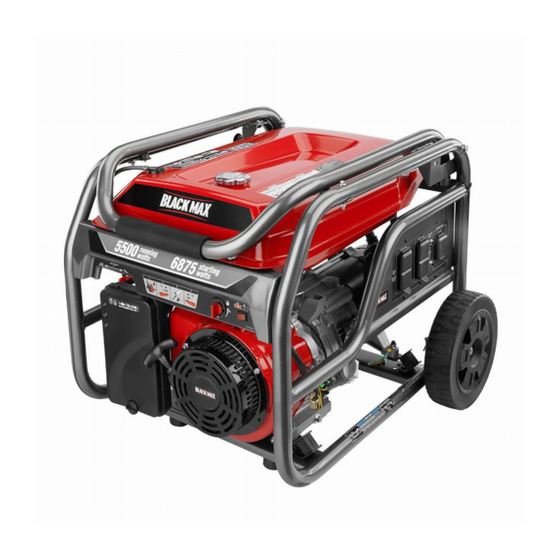

Black Max BM905530 Quick Reference Manual

WARNING:
This Quick Reference Guide is not a substitute for reading the operator's manual. To reduce the risk of injury or death, user must read and understand operator's manual before using this product. All page references refer to
the operator's manual.
IMPORTANT!
WARNING:
Using a generator indoors CAN KILL YOU IN MINUTES.
Do not connect to a building's electrical
Generator exhaust contains carbon monoxide. This is a
system unless the generator and transfer
poison you cannot see or smell.
switch have been properly installed and
the electrical output has been verified by
a qualified electrician. The connection
must isolate the generator power from
NEVER use inside a home
utility power and must comply with all
or garage, EVEN IF doors
applicable laws and electrical codes. and windows are open.
TOOLS NEEDED
Socket Wrench Adjustable Wrench

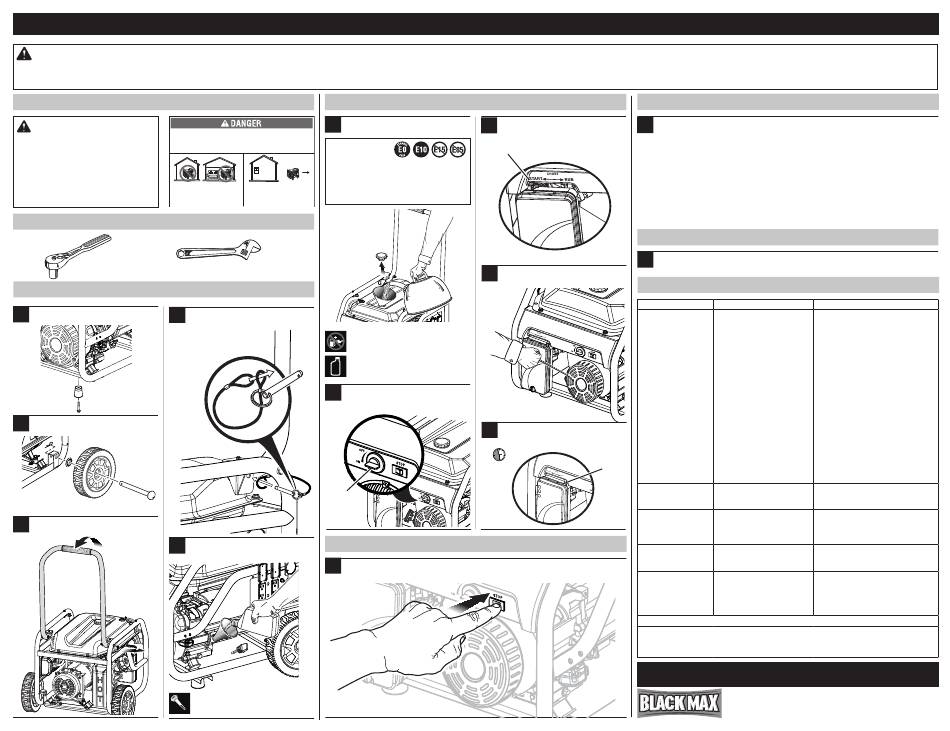

FIRST TIME ASSEMBLY
1
Install the feet (see page 12). 4 Securing the handle (see page 14).
2 Install the wheels (see page 12).
3 Raise the handle (see page 14).
Add entire bottle of lubricant provided to the
5
generator (see page 14).
Set unit on flat surface so engine is level.
Remove dipstick, wipe clean, put back in hole
(but don't screw in) and check lubricant level.
BM905530 QUICK REFERENCE GUIDE
STARTING THE UNIT
1
Add fuel (see page 14).
NOTICE:
Do not use E15 or E85 fuel in this prod-
uct. It is a violation of federal law and will
damage the unit and void your warranty.
Only use OUTSIDE and
Only use unleaded gasoline containing
far away from windows,
up to 10% ethanol
doors, and vents.
This is a 4-cycle engine. Do not mix fuel and
lubricant together.
Mix fuel stabilizer with gasoline according to
manufacturer's directions prior to filling the
tank.
2
Turn the fuel valve to ON (see page 15).
FUEL
VALVE ON
STOPPING THE UNIT
1
Press and hold the STOP switch until the engine stops (see page 15).
Connect devices to be powered by generator by following the steps below (see pages 8-10).
3 Put choke lever in START position (see page 15). 1
• Make sure the generator can supply enough continuous (running) and surge (starting) watts for the items you
will power at the same time. See page 9 for how to calculate total amount of power needed.
CHOKE LEVER IN
START POSITION
• Start the generator with nothing connected.
• Plug in and turn on the first load, preferably the largest load you have.
• Permit the generator output to stabilize (engine runs smoothly and attached device operates properly).
• Plug in and turn on the next load.
• Again, permit the generator to stabilize.
• Repeat previous two steps for each additional load.
IMPORTANT: Never add more loads than the generator capacity. Take special care to consider surge loads in
generator capacity. (See pages 8-10.)
When preparing to store the generator, allow the unit to cool for 30 minutes, then follow the guidelines listed on
1
page 18.
Pull the recoil starting grip until the engine runs
4
(See page 15).
PROBLEM
Engine will not start.
Allow engine to run for 15 - 30 seconds, then
5
move choke to RUN position (see page 15).
CHOKE LEVER
15 - 30 S
IN RUN
POSITION
Engine hard to start.
Engine lacks power.
AC receptacle does not work. Circuit breaker is tripped.
Generator makes a "spark
knock" or "pinging" noise.
If problem persists after trying the above solutions, contact customer service or a qualified service center for assistance.
NOTICE:
As the equipment owner, you are responsible for the performance of the required maintenance listed in the
Maintenance section It is recommended that you retain all receipts covering maintenance on your equipment. Neglecting or
failing to perform the required maintenance may increase emissions, decrease fuel efficiency, degrade performance, cause
irreversible engine damage and/or void your warranty.
Make the most of your purchase! Go to www.blackmaxtools.com and register your new tool online.
For questions about operating or maintaining your product, please call 1-800-726-5760.
USING THE GENERATOR
STORING THE UNIT
TROUBLESHOOTING
POSSIBLE CAUSE SOLUTION
No fuel. Fill fuel tank.
Stale gasoline or water in gasoline. Drain entire system and refill with fresh fuel.
Lubricant level is low. Engine is equipped with Low Oil Shutoff. If engine
lubricant level is low, it must be filled before unit
will start. Check engine lubricant level and fill, if
necessary.
Fuel valve is OFF. Turn fuel valve ON.
Spark plug faulty, fouled, or improperly Replace spark plug.
gapped.
Choke lever is in RUN position. Move choke lever to START position.
Engine stored without treating or draining Drain fuel and carburetor. Refuel with fresh gasoline.
gasoline, or refueled with bad gasoline.
Dirty fuel filter. Replace fuel filter or contact a qualified service center.
CO sensor LED is flashing red, indicating Leave area immediately and relocate to an open
a CO hazard. outdoor area. Ventilate area thoroughly before oc-
cupying again. Ensure the generator is located in
an open outdoor area at least 20 feet away from all
doors, windows, and occupied spaces, and point
exhaust away from occupied structures.
CO sensor LED is flashing yellow and/ The CO sensor needs to be repaired or replaced.
or making an audible chirp, indicating a Contact customer service or a qualified service
sensor fault. center for assistance.
Water in gasoline. Drain entire system and refill with fresh fuel.
Weak spark at spark plug. Replace spark plug or contact a qualified service
center.
Air filter element is clogged. Check air filter element. Clean or replace as needed.
Engine stored without treating or draining Drain fuel and carburetor. Refuel with fresh gasoline.
gasoline, or refueled with bad gasoline. If problem continues, contact a qualified service
center.
Reset the AC circuit breaker.
GFCI is tripped. Reset the GFCI.
Item plugged in is defective. Try a different item.
An occasional light "knocking" or "ping- Switch to a different brand of gasoline, making sure
ing" under heavy load is not a cause for that the octane rating is 86 or higher. If problem
concern. However, if the knocking or continues, contact a qualified service center.
pinging occurs under normal load at a
steady engine speed, the problem may
be with the brand of gasoline being used.
