DMP Electronics 1100RINT Installation Manual

1100RINT WIRELESS REPEATER
Installation Guide
WALL
TAMPER
ENABLE
DISABLE

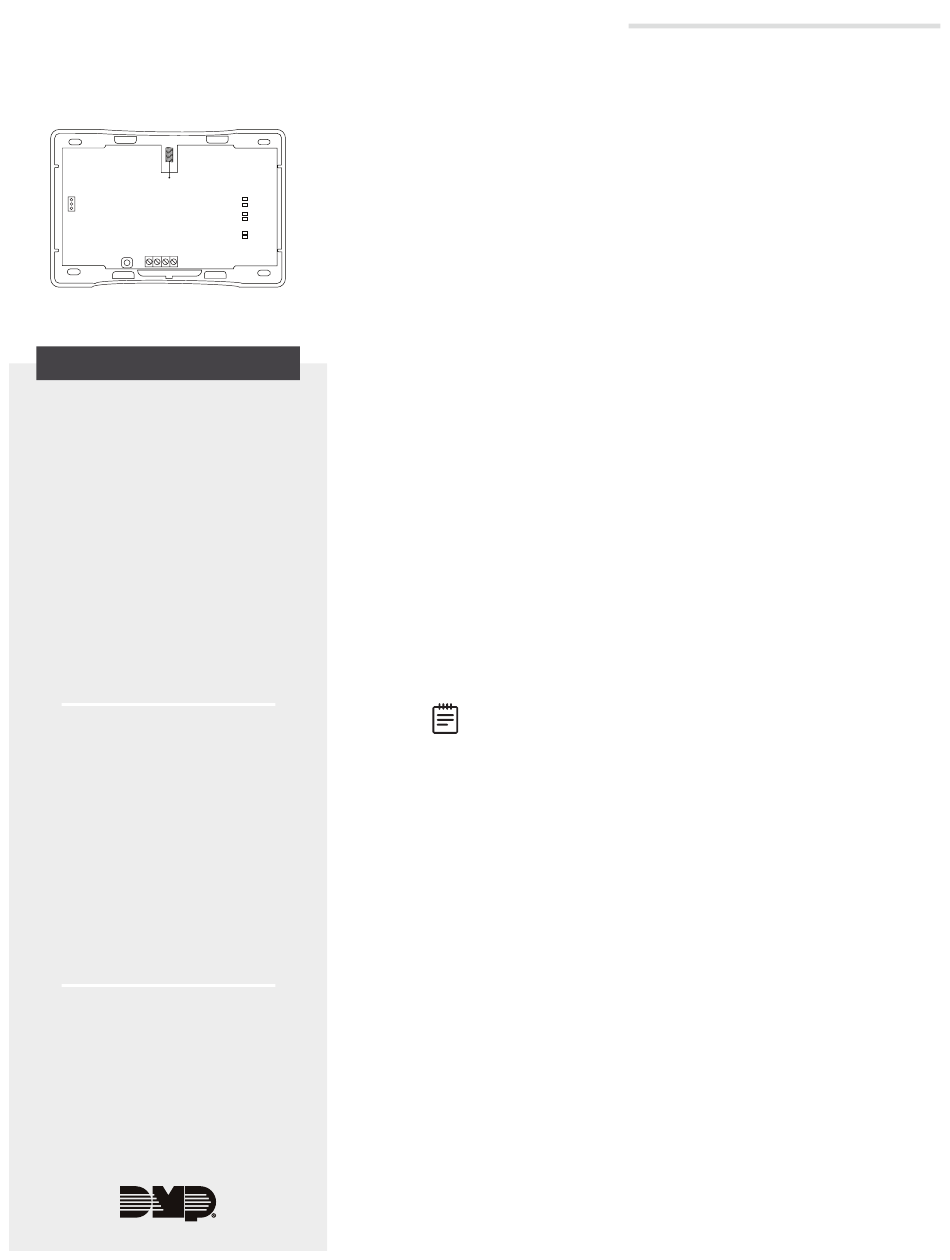

Figure 1: 1100RINT Repeater
GET STARTED
The 1100RINT Wireless Repeater
provides increased communication
range by forwarding messages
from the transmitter to the wireless
receiver. The repeater features 128
bit-AES encryption.
Up to three repeaters can be
installed on a wireless system.
The repeater is powered from a 12
VDC power supply and includes a
24-hour battery backup.
The 1100RINT Wireless Repeater
provides a built-in survey
capability to allow for single-
person installations, eliminating the
requirement for an external survey
kit.
Compatibility
• 1100INT Wireless Receivers
Version 700 and Higher
• 1100XINT Wireless Transmitters
Version 700 and Higher
• XT30INT Series Panels Version
693 and Higher
• XTLtouchINT/XTLplusINT Series
Panels Version 693 and Higher
• XR150INT/XR550INT Series
Panels Version 693 and Higher
What is Included?
• One 1100RINT Repeater
• One Lithium Polymer
Rechargeable Battery
• Hardware Pack
1
PROGRAM THE PANEL
RF RX
Refer to the panel programming guide as needed.
RF TX
PANEL RX
PANEL TX
STATUS
PWR
1. Reset the panel.
2. If using an XT Series International Panel, enter 665 (PRO) at
the keypad to access the PROGRAMMER menu. If using an
XR Series International Panel, enter 6653 (PROG).
3. Go to SYSTEM OPTIONS. At 1100 ENCRYPTION, select ALL
to only add encrypted wireless devices to the system. Select
BOTH to allow both encrypted and non-encrypted wireless
devices to be programmed.
The default passphrase appears at the ENTER PASSPHRASE
4.
prompt. Press CMD to keep the default. Press any select key
or area to change the passphrase and enter an 8-character
hexadecimal string (0-9, A-F).
5. In ZONE INFORMATION, enter the wireless zone number.
6. Enter the ZONE NAME.
7. Select AUX 1 (auxiliary 1) as the ZONE TYPE.
At WIRELESS? select YES.
8.
At SERIAL NO:, enter the repeater's eight-digit serial
9.
number. If using multiple repeaters, they must be
programmed as sequential zone numbers.
10. At SUPRVSN TIME, press CMD to accept the default time
of 240 minutes. Press any select key or area to change the
supervision time required for the wireless repeater.
Note: When an 1100INT Series receiver is installed, powered
up, or the panel is reset, the supervision time for any
programmed repeaters and transmitters are reset.
11. Program ARMED OPEN and DISARMED OPEN as TROUBLE
so that a power trouble sends a trouble alert.
12. Program ARMED SHORT and DISARMED SHORT as ALARM
so that a tamper sends an alarm alert.
13. Press CMD until STOP displays. Press a top row select key or
area to save programming.
