DMP Electronics 1100R SERIES Installation Manual

1100R SERIES WIRELESS REPEATER
Installation Guide
WALL
TAMPER
ENABLE
DISABLE
R Y G B TO PANEL

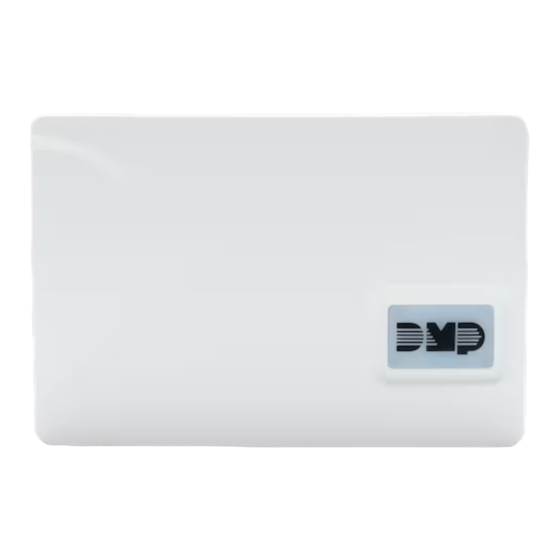

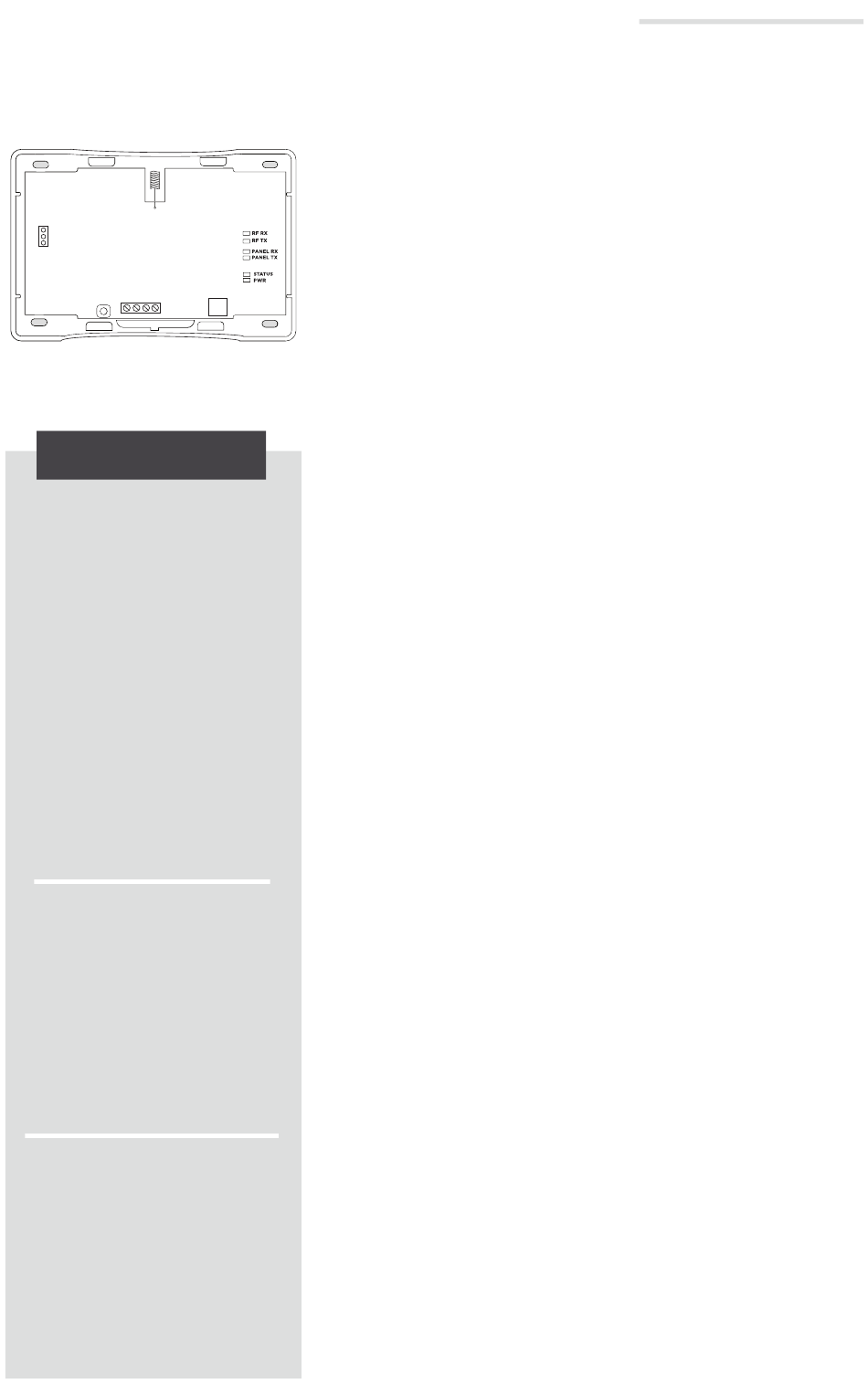

Figure 1: 1100R Wireless
Repeater
DESCRIPTION
The 1100R Series Wireless
Repeaters provide an increased
communication range by
forwarding messages from the
transmitter to the wireless receiver.
The 1100RE features
128-bit AES encryption.
Up to eight repeaters can be
installed on a wireless system.
The repeater is powered from a
12 VDC power supply and includes
a 24-hour battery backup.
The 1100R Wireless Repeater
provides a built-in survey
capability to allow for single-
person installations, eliminating
the requirement for an external
survey kit.
Compatibility
All DMP 1100 Series Wireless
Receivers using Version 106 or
higher software.
All DMP panels with a built-in
wireless receiver.
Encryption requires panel
version 183 or higher and wireless
receiver version 300 or higher.
What is Included
• One Model 1100R Repeater
• 800 mAh Lithium Polymer
Rechargeable Battery
• Hardware Pack
• One Model 376L Plug-In DC
Power Supply
1
BAT
2
SELECT A LOCATION
PROGRAM THE PANEL
Refer to the panel programming guide as needed.
1. Reset the panel.
2. At a keypad, enter 6653 (PROG) to access the
PROGRAMMER menu.
3. In ZONE INFORMATION, enter the wireless zone
number.
4. Enter the ZONE NAME.
5. Select AUX 1 (auxiliary) as the ZONE TYPE.
6. Select YES when WIRELESS? displays.
7. At SERIAL NO:, enter the repeater's eight-digit
serial number. If using multiple repeaters, they
must be programmed as sequential zone numbers.
8. At SUPRVSN TIME, press CMD to accept the
default time of 240 minutes. Press any select key
or area to select the supervision time required for
the wireless repeater.
When an 1100 Series receiver is installed, powered
up, or the panel is reset, the supervision time for
any programmed repeaters and transmitters are
reset.
9. At the NEXT ZONE prompt, select NO for more
programming options.
10. Program ARMED OPEN and DISARMED OPEN as
TROUBLE.
11. Program ARMED SHORT and DISARMED SHORT
as ALARM.
12. Press CMD until STOP displays. Press a top row
select key or area to save programming.
Mount the 1100R on a flat surface and away from large,
metal objects. Mounting on or near metal surfaces
impairs performance.
The 1100R is typically mounted between the 1100
Series wireless receiver and the 1100 Series wireless
transmitters that are out of range. Mount the 1100R as
far from the 1100 Series receiver as needed to provide
the required system range.
If the repeater is powered from an auxiliary power
supply, mount the 1100R away from the metal power
supply enclosure.
