Apply Configuration

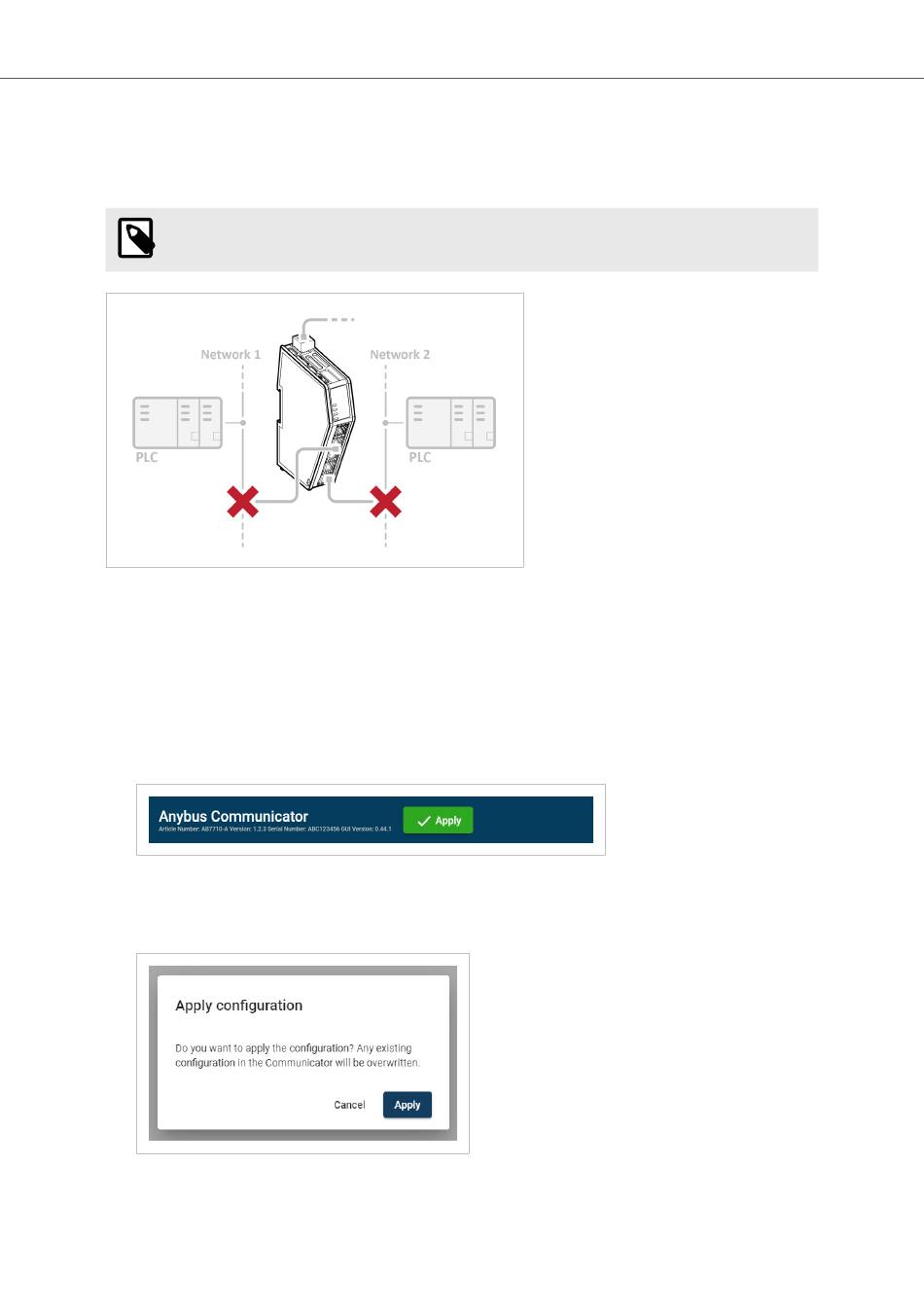

6.8. Apply Configuration
Before You Begin
NOTE
When you apply the configuration, any existing configuration is overwritten.
Figure 25.
Before you can apply the configuration, ensure that there is no active communication on the PROFINET network
or the EtherCAT network where the Communicator is connected.
Procedure
To make the settings take effect, download the configuration to the Communicator:
1.
In the web-interface header, click Apply
2.
To confirm download, click Apply.
The configured settings are downloaded and applied to the system.
SCM-1202-193 Version 1.0
®
™
Anybus
Communicator
- PROFINET IO-Device to EtherCAT Slave
Page 31 of 56
