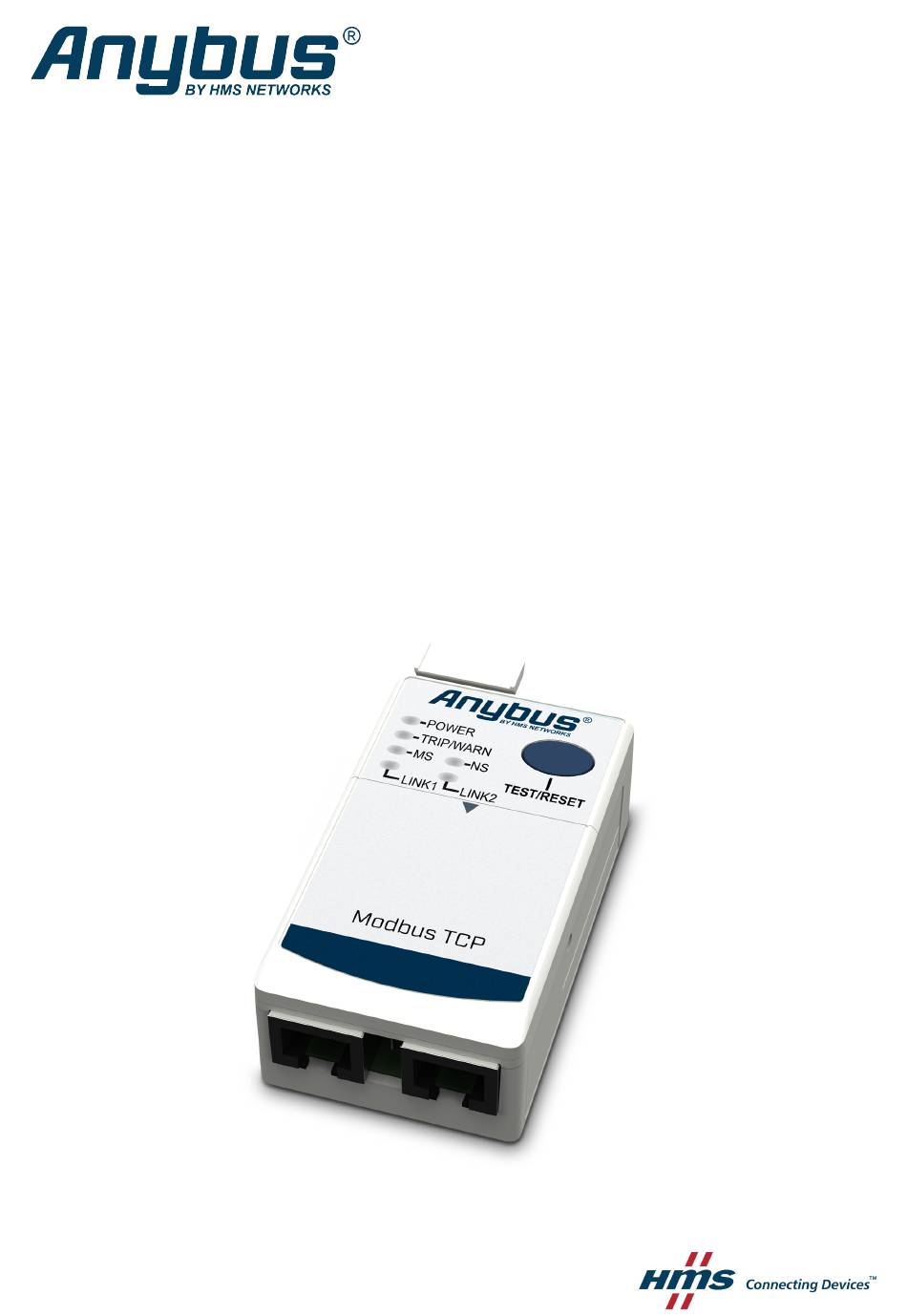

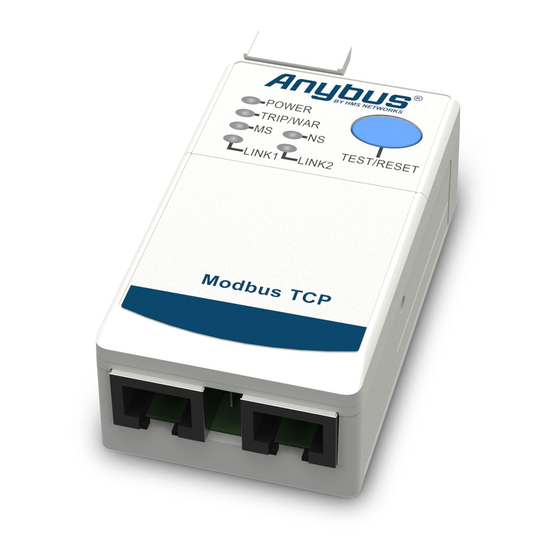

- Page 1 Anybus-E300-MBTCP E300 Communication Module for Modbus TCP USER MANUAL SCM-1202-165 1.0 en-US ENGLISH...
- Page 2 HMS Networks reserves the right to modify its products in line with its policy of continuous product development. The information in this document shall therefore not be construed as a commitment on the part of HMS Networks and is subject to change without notice. HMS Networks makes no commitment to update or keep current the information in this document.
-
Page 3: Table Of Contents
Ethernet Network Configuration ..................23 Modbus TCP Timeout and Word Order Configuration ............24 Verify Operation........................ 25 LED Guide........................25 Maintenance........................26 Web Server Password Configuration.................. 26 Web Server System Password Reset ................. 26 SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... - Page 4 Ethernet Statistics ......................29 Technical Data ........................30 Technical Specifications....................30 Reference Guides ......................31 Modbus Data Model....................... 31 Modbus Commands ....................... 31 Controlling Connection....................31 Coils ..........................32 Input Registers ......................32 Holding Registers ......................33 SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual...
-
Page 5: Preface
3 (36) Preface About This Document This manual describes the installation and configuration of the Anybus-E300-MBTCP. For information on how to configure the E300 Electronic Overload Relay, refer to the user manual for the E300 Electronic Overload Relay. For additional documentation and resources, please visit www.anybus.com/support... -
Page 6: Document Conventions
Instruction that must be followed to avoid a risk of personal injury. Instruction that must be followed to avoid a risk of reduced functionality and/or damage to the equipment, or to avoid a network security risk. Additional information which may facilitate installation and/or operation. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... -
Page 7: Trademarks
Preface 5 (36) Trademarks Anybus ® is a registered trademark of HMS Networks AB. All other trademarks are the property of their respective holders. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... -
Page 8: Safety
WARNING In case of malfunction or damage, no attempts at repair should be made. The product should be returned to the manufacturer for repair. Do not dismantle the product. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... -
Page 9: Preparation
RJ45 Straight Male to RJ45 Straight Male, Teal Robotic TPE, Weld Splatter, Flex Rated, 2 m 1585J-M8TBJM-2 RJ45 Straight Male to RJ45 Straight Male, Teal PVC, 600V Rated, 2 m Custom lengths available up to 99 meters. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... -
Page 10: E300 Communication Module Network Information
Preparation 8 (36) E300 Communication Module Network Information Label with Network Information: MAC Id, Serial Number and Firmware Revision. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... -
Page 11: Installation
9 (36) Installation E300 Relay Modules Three modules comprise the E300 Relay. All three modules are required to make a functional overload relay. Position Module Anybus-E300-MBTCP E300 Relay Control Module E300 Relay Sensing Module SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... -
Page 12: Attach E300 Communication Module
To attach theE300 Communication Module to the E300 Relay Control Module: Pull out the locking tab located on the upper left side of the E300 Relay Control Module. Attach the E300 Communication Module to the E300 Relay Control Module. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... - Page 13 Installation 11 (36) To lock the modules, push in the locking tab located on the upper left side of the E300 Relay Control Module. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual...
-
Page 14: Connecting To Modbus Tcp Network
The E300 Communication Module listens for incoming Modbus TCP connections on TCP port 502. Up to four simultaneous Modbus TCP connections are supported. Connecting to Ground Motor protection function: Ground Fault – zero sequence method (50 N). Connect the Green Wire to Functional Earth (Ground). SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... -
Page 15: Ip Address Setting Via Rotary Switches
You can also set the IP address via the BOOTP/DHCP Utility or via a web browser and MAC scanner, refer to IP Address Setting Via BOOTP/DHCP Utility, p. 14 IP Address Setting Via Web Browser and MAC Scanner, p. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... -
Page 16: Configuration
– Subnet Mask – Gateway address – Primary and Secondary DNS – Domain name. Click OK. → The Request History panel opens. The hardware addresses of modules issuing BOOTP or DHCP requests are listed. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... - Page 17 To permanently assign this configuration to the module: Select the module in the Relation List panel and click Disable BOOTP/DHCP. Result → The E300 Communication Module now use the assigned configuration and does not issue a DHCP request. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual...
- Page 18 To scan the Subnet for all available MAC addresses, click Start. Identify the IP address assigned to the MAC ID of the E300 Communication Module. The IP address has a format that is similar to: 192.168.0.100 SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual...
-
Page 19: Access The Web Server Administration Mode
The E300 Communication Module goes online with the IP address used at the time of the previous startup. Open a web browser. Click to select the Address bar and enter the IP address. Press Enter. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... - Page 20 The First run password configuration window appears. Enter Old password, which is the default password. Then enter New password and Confirm new password. To confirm the password change, click Apply Changes. The E300 Communication Module web server Home page opens. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual...
-
Page 21: Permanently Enable The Web Server
→ Now the web server is permanently enabled and can be accessed without first setting the rotary switches to 0.0.0. You are still prompted to enter user name and password before you can login. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... -
Page 22: Configuration Parameters
20 (36) Configuration Parameters In the E300 Communication Module web server you can configure the E300 Relay parameters. For detailed information about the various parameters, refer to the E300 Electronic Overload Relay user manual. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... -
Page 23: View Parameters
Select a parameter group to view. The example shows the Current Monitoring parameters. To increase the update rate of the data being viewed, enter a faster update time in the Seconds between refresh box. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... -
Page 24: Edit Parameters
When you have completed the parameter values configuration, click Apply. → The E300 Communication Module downloads the new parameter values to the device. To confirm the parameter values change, click OK in the confirmation window. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... -
Page 25: Ethernet Network Configuration
Administrator Inactivity Timeout 0 to 9999 seconds If there is no activity within the time set, the user is automatically logged Default: 300 seconds out. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... -
Page 26: Modbus Tcp Timeout And Word Order Configuration
This is only applicable for parameters that span over more than one 16-bit registers. The Little endian format places the least significant byte of the data at the byte with the lowest memory address. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... -
Page 27: Verify Operation
LED A: Indicates status for RJ45 Port G • LED B: Indicates status for RJ45 Port H • LED D, Power: For information about the Power LED indicator, refer to the E300 Electronic Overload Relay user manual. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... -
Page 28: Maintenance
When the reset is completed, the Module Status LED starts flashing red. When the LED goes out again: ► and restart the E300 Communication Module. Result → The system password and all other E300 Relay configurations are reset to the factory default value. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... -
Page 29: Troubleshooting
E300 Electronic Overload Relay. Diagnostics Overview In E300 Communication Module web server Diagnostics Overview you can overview the central processing unit (CPU) usage, web server errors and connection status as well as Modbus connection statistics. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... -
Page 30: Protection Trip Status
View the trip and warning status on the E300 Communication Module web server Projection Trip Status page. To Reset the test: To close the trip relay contact, press and immediately release the Test/Reset button. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... -
Page 31: Network Settings
Network Settings On the Network Settings page you can view the Network Interface, Ethernet Interface and Ethernet port configuration. Ethernet Statistics On the Ethernet Statistics page you can view statistics for the Ethernet ports. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... -
Page 32: Technical Data
Additional technical data can be found in the product web page Technical Specifications tab at www.anybus.com. Have the product article number available, to search for the product specific support web page. You find the product article number on the product cover. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... -
Page 33: A Reference Guides
No other Modbus TCP connection can control the outputs until the controlling connection is either closed or timed out. For information about which coils and holding registers that control the outputs, refer to the Controls output column in Coils, p. 32 Holding Registers , p. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... -
Page 34: Coils
30017 0010 Phase C current 30018 0011 30019 0012 Average % FLA 30020 0013 Ground Current 30021 0014 Phase A-B voltage 30022 0015 Phase B-C voltage 30023 0016 Phase C-A voltage 30024 0017 Frequency SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... -
Page 35: Holding Registers
0020 Current Transformer Primary 40034 0021 Current Transformer Secondary 40035 0022 Data Link 0 40036 0023 Data Link 1 40037 0024 Data Link 2 40038 0025 Data Link 3 40039 0026 Data Link 4 SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual... - Page 36 0FAA Trip Sts Voltage 44012 0FAB Warn Sts Voltage 44013 0FAC Trip Sts Power 44014 0FAD Warn Sts Power 44015 0FAE Trip Sts Control 44016 0FAF Warn Sts Control 44017 0FB0 Trip Sts Analog SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual...
- Page 37 Significant Octet 46014 177D Gateway Address Least Significant Octet 46015 177E Ethernet Interface Configuration 0=DHCP (default) 1=static 46016 177F Save configuration Save network interface configuration to non volatile storage (NVS) Always returns 0 when read. SCM-1202-165 1.0 en-US Anybus-E300-MBTCP User Manual...
