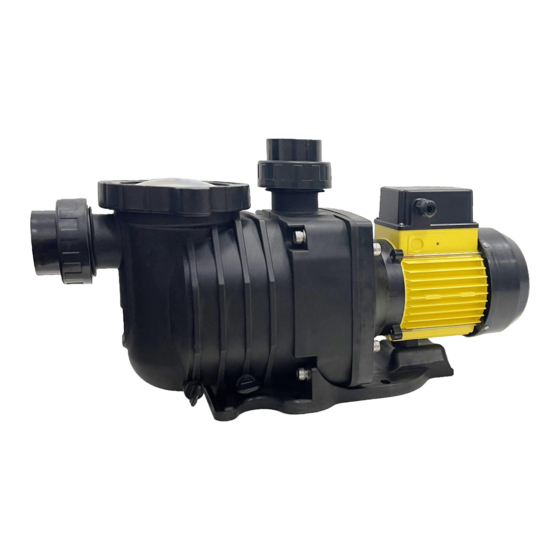

- Page 1 MANTEINANCE MANUAL AMBRA Circulation water pump Read carefully Ver.01–2021-06-18...
- Page 2 ▪ Seal support made of glass and polyamide ▪ Windings impregnated with epoxy resin ▪ Connections to be glued with union TECHNICAL DATA ▪ Dimension Model Weight Ambra 50 Ø63 Ø63 11,20 kg Ambra 75 Ø63 Ø63 12,35 kg Ambra 100 Ø63...
- Page 3 AMBRA pag. 3 di 8 MANTEINANCE MANUAL Imax Qmax Hmax model AMBRA 50M 0,37 2850 AMBRA 50T 0,37 2850 AMBRA 75M 0,75 0,55 2860 AMBRA 75T 0,75 0,55 2850 AMBRA 100M 0,75 2870 AMBRA 100T 0,75 2870 AMBRA 150M 2880...
- Page 4 AMBRA pag. 4 di 8 MANTEINANCE MANUAL RECOMMENDATIONS AND WARNINGS The electrical installation must be performed by a qualified professional, in compliance with the technical and safety regulations in force. This pump is not equipped with a thermal switch, so it must be installed under a thermal relay and differential protection in compliance with the technical and safety regulations in force.
- Page 5 AMBRA pag. 5 di 8 MANTEINANCE MANUAL recommends anchoring them to third-party structures using suitable supports. (fig. D) The connection pipes must not have a diameter smaller than that of the pump outlets and must be installed perpendicularly and well centered with respect to the pump connection, to prevent the pump and the pipe from being subjected to improper stress.
- Page 6 AMBRA pag. 6 di 8 MANTEINANCE MANUAL The pump can be properly grounded by checking that the electrical connections and clamps are tight. The pump is able to support a voltage variation equal to ± 10% with respect to the nameplate data: failure to comply with this condition will result in a reduction in the useful life of the pump.
- Page 7 AMBRA pag. 7 di 8 MANTEINANCE MANUAL − The vibrations of the machine. In case of anomaly, stop the machine immediately − The state of deterioration of the components, periodically replacing those worn by normal use (eg O-rings, gaskets, bearings) −...
- Page 8 NOTE − CPA srl excludes any liability for non-compliance with the safety standards in force for the individual technical sectors affected by this document. − The information contained in this manual may vary at the discretion of the editor, without notice, together with the changes to the product in question in this document: it will be the responsibility of the customer to verify the persistent correspondence of the product to the information sheet when placing the order.
