Summary of Contents for The Source AK-100SD

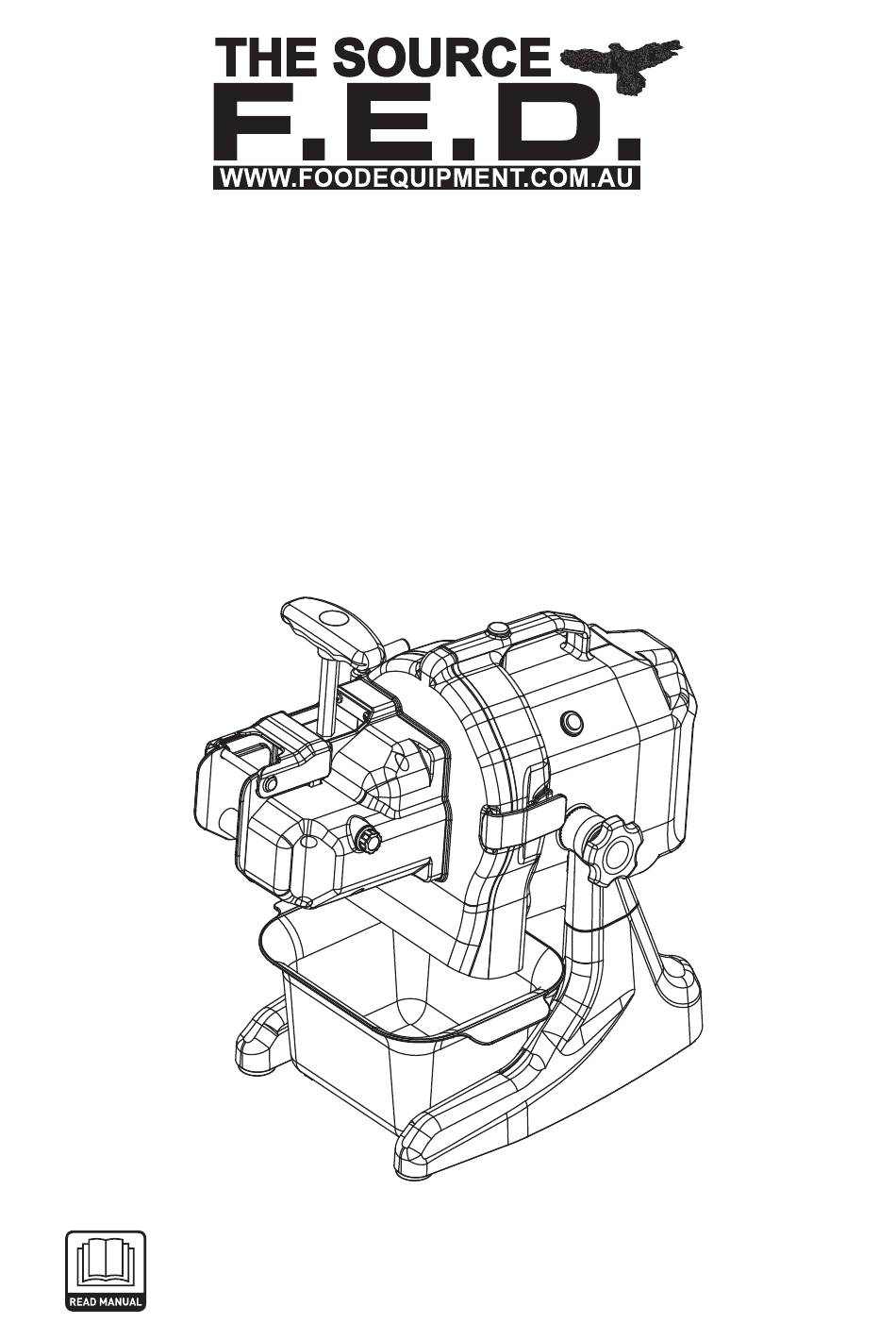

- Page 1 INSTRUCTION MANUAL Original instructions for Multi Slicer Machine AK-100SD Keep these instructions with the appliance. You should read this user manual carefully before using the appliance.
-
Page 2: Intended Use
Dear Customer, Thank you for purchasing this appliance. Please take a few minutes before starting operation of the appliance and read the following operating instructions. 1. Intended use 1.1 This machine is designed for commercial used only and must not be used for household. - Page 3 2.1.11 Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. To pull the plug out of the socket, always pull on the plug and not on the cord. 2.1.12 Ensure that the cord (or extension cord) is positioned so that it will not cause a trip hazard.
-
Page 4: Product Description
2.2.6 Caution! Securely route the power cord if necessary, in order to prevent unintentional tripping over and falling. 2.2.7 Do not use the appliance before it is properly assembled. 2.2.8 This appliance is not intended to be operated by means of an external timer or separate emote-control system. - Page 5 POWER SPEED THICKNESS N.W./G.W. PACKING SIZE 220V-240V~ 1-5mm 1500 rpm 50/60Hz, (±0.2mm) 15.6/17.2 AK-100SD 300W 56.5x37.5x52 cm 1-4mm 115V~60Hz 1725 rpm (±0.2mm) Remark: Technical specification is subjected to change without prior notification. 4 Introduction Preparation for first use 4.1.1 Check to make sure the appliance is undamaged. In case of any damage, contact your supplier immediately and do NOT use the appliance.
- Page 6 4.2 The manufacturer will be not responsible for following cases: 4.2.1 If the machine is tampered with or safety functions are installed by non-authorized staff. 4.2.2 If the components are replaced by unauthorized parts. 4.2.3 If the instruction in this manual is not carefully followed. 4.2.4 If the machine surfaces are treated with unsuitable substance or solvent.
- Page 7 4.4.3.5 Install the S blade -- Hold the S Blade with hexagonal wrench, turn the handle clockwise to lock the S blade. 4.4.4 Electric connection DANGER-CAUTION: Electric connection to the power outlet should be operated by skilled personnel. Check for the perfect efficiency of the plant grounding system. Make sure that the line voltage (V) and frequency (Hz) correspond to the machine ratings (refer to the machine identification plate and wiring diagram).
- Page 8 4.5 OPERATING 4.5.1 Preparation 4.5.1.1 Make sure the appliance is unplugged from the electrical power supply, the switch is on “OFF” position. Check the front cover, pressing assembly and S blade are properly installed into appliance. 4.5.1.2 Before you start with the operation, you should make sure that the shaft is rotating in an anticlockwise direction.
- Page 9 4.5.4 Trouble removal Trouble Possible cause Remedy Power plug is not inserted Connect the power plug to a socket correctly. outlet. The power switch Front cover assembly is is not working Lock the front cover correctly, and make not locked, the magnetic the magnetic switch connected.
-
Page 10: Circuit Diagram
5 Circuit diagram... -
Page 11: Exploded View And Spare Parts Lists
6 Exploded view and spare parts lists English Name English Name English Name Locked cover Rear connecting screw Capacitor bracket Pressing assembly Flexible coupling Power cord Front cover assembly Motor fixing plate Rubber feet Oil seal Motor Cable tie Fastener Bottom base Output axis Case back cover...
