Intel    Dialogic   
D/480JCT-2T1
Quick Install Card for PCI
Part Number 05-2055-001
Copyright © 2003 Intel Corporation

Before You Begin

Electrostatic Discharge
CAUTION
All computer boards are electrostatic sensitive.
Handle all static sensitive components, boards
and computers at a static-safeguarded work area.
To prevent damage caused by static electricity:
• Wear a grounded, static-dissipative wrist strap for
the entire hardware installation.
• Work at a static-safeguarded work area.
A Static Safe Work Area
Static-Dissipative
Mat
Static-Dissipative
Wrist Strap
Common
Ground
Point

Configuring the Hardware

NOTE: This product allows you to use the factory
default hardware settings for quick installation and
operation. However, you should review the following
information and select your desired options.
1
1.
SW100—Rotary switch used to set Board Identification.
2.
Span 2 Alarm/Status LEDs
3.
Span 1 Alarm/Status LEDs
4.
Span 2 Network Connector—RJ-48C connector to
external T-1 digital telephone network interface
5.
Span 1 Network Connector—RJ-48C connector to
external T-1 digital telephone network interface

Alarm/Status LEDs:

Red LED (Loopback)—Indicates remote loopback mode.
Green LED—Indicates board is powered up and receiving
signal from external T-1 source.
Yellow LED—Indicates loss of frame synchronization at
far end external network.
Red LED—Indicates loss of frame synchronization on
incoming line from external network.

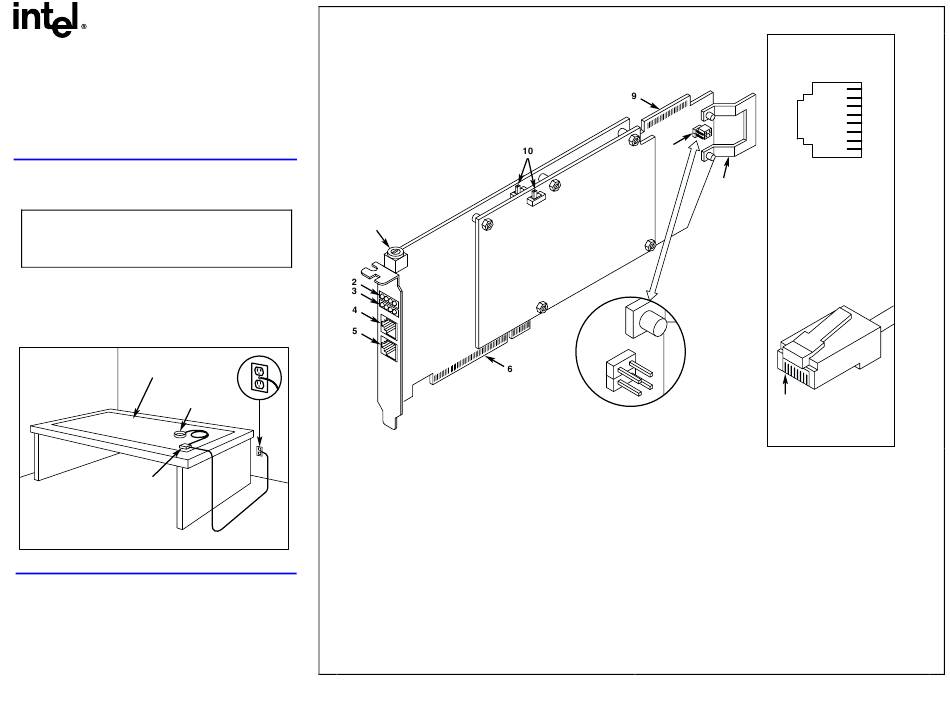

Physical Description

8
7
0 0
2
P 7
1
3
6.
PCI Bus Edge Connector
7.
ISA Edge Retainer
8.
P700—Jumpers used to terminate the CT Bus.
9.
CT Bus Edge Connector
10. SW500, SW600—Slide switches used to set remote
loopback modes.
NOTE: CT Bus signals must be terminated only on boards at
each end of the CT Bus cable.
Pinouts for the
RJ-48C
1
2
3
4
5
6
7
8
1 RVC_RING
2 RCV_TIP
3 CHASSIS GROUND
4 XMIT_RING
5 XMIT_TIP
6 CHASSIS GROUND
7 CHASSIS GROUND
8 CHASSIS GROUND

Pinouts for the RJ-48C

Modular Jack on Bracket
Pin 1
Network Interface
Cable Connector
