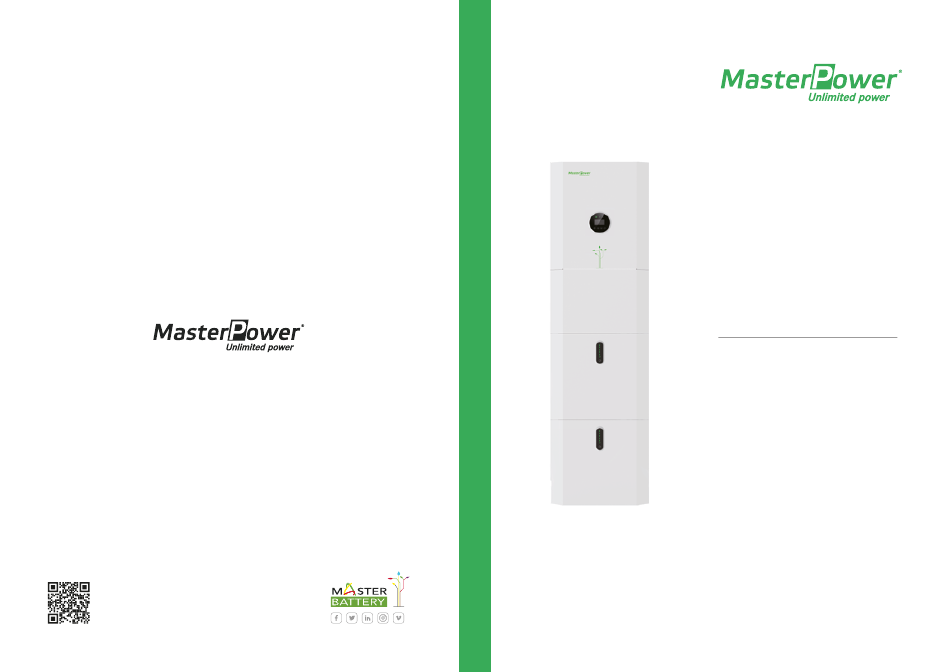

- Page 1 INSTALLATION, OPERATION & MAINTENANCE MANUAL GreenE 8K/10K/12K ENERGY STORAGE SYSTEM Master Battery, S.L. Master Battery, S.L. Paseo de Extremadura, 39, 28935 Móstoles, Madrid, Spain Tel: +34 918 021 649 | Fax: +34 917 750 542 info@masterbattery.es | www.masterbattery.es 202208 Ver: 2.0...
-
Page 2: Table Of Contents
Contents 1 Introduction 1.1 System Introduction ................1.2 Operation Modes ................1.3 Safety Introduction ................................1.4 Battery Safety Datasheet 1.5 General Precautions ................1.6 Parts List ................1.7 System Appearance ................1.8 Liability Limitation ................2 Installation 2.1 Installation Site and Environment ................ -
Page 3: Introduction
User Manual 1 Introduction 1.1 System Introduction GreenE 8K/10K/12K can be applied in DC- coupled systems (mostly new installation), AC-coupled systems (mostly retrofit) and Hybrid-coupled systems (mostly retrofit, and PV capacity-increase), as the following schemes show: Figure1: DC-coupled Storage System-Scheme... -
Page 4: Operation Modes
User Manual User Manual BAT PRIORITY: Under this mode, the battery is only used as a backup power supply when the grid fails and as long as the grid works, the batteries won’t be used to power the loads. The battery will get charged with the power generated by the PV system or from the grid. -
Page 5: Safety Introduction
The GreenE 8K/10K/12K must not be touched or put into service until 5 1.3.8. Information on environmental conservation and recycling minutes after it has been switched off or disconnected to prevent an electric shock or injury. -
Page 6: Battery Safety Datasheet
1.4.2 Safety Datasheet • The transportation of GreenE 8K/10K/12K must be made by the manufacturer or An instructed personal. These instructions shall be recorded and repeated. For detailed information please refer to the provided battery safety datasheet. -
Page 7: Parts List
User Manual User Manual 1.6 Parts List Accessory - Cable (PACK20.4) Check the following parts list to ensure it is complete. Delivers a total system separately on site to client, this consists of: Inverter Accessory - Cable (PACK10.2) - Page 8 User Manual User Manual Accessory - Cable (PACK30.6) Accessory - Cable (PACK40.8)
-
Page 9: System Appearance
User Manual User Manual 1.7 System Appearance Accessory - Mechanical Top cover Accessory - Floor stand support Figure 4: GreenE 8K/10K/12K Delivery Scope Object Description Hybrid Inverter EMS Display Screen Cable Box (connected to Inverter) PACK5.1 (Battery 1) PACK5.1 (Battery 2) - Page 10 User Manual User Manual 1.7.1 Cable Box Part Figure 5: Inverter without Cable Box Covers-Front View Figure 7: Cable Box Part without Covers Object Description DVC* class Object Description DVC* class PV1, PV2 DVC C BACKUP DVC C ON GRID DVC C DRM OR PARALLEL2 DVC A...
-
Page 11: Liability Limitation
GreenE 8K/10K/12K on the other side, the wall or structure shall have a suitable non-combustible barrier. If the mounting surface itself is not made of The GreenE 8K/10K/12K is naturally ventilated. - Page 12 User Manual User Manual If the GreenE 8K/10K/12K is mounted at a wall or at a distance of 300mm from the wall or the 2.2 Installation structure separating it from the habitable space, the distances to other structures or objects must be increased.
- Page 13 User Manual User Manual 2.2.2 Inverter Installation NOTE: The type B RCD must be installed on the backup port of the system according to local Step 6 - Inverter Installation. regulations. Step 4 - Remove the debris baffle and secure the battery to the wall with screws and gaskets. Figure 13: Inverter Installation Step 7 - Hang the inverter onto the mounting panels, adjust the entire system and ensure that the...
- Page 14 User Manual User Manual Step 8 - Please make AC cables on site. 3. Insert the crimped conductors L, N and PE into the corresponding terminals and tighten the screw with a hex key wrench screwdriver (size: 2.5, 1.2~2.0 N.M). Ensure that all Step 8.1 - Please follow the AC cable requirements below.
- Page 15 User Manual User Manual 7. Use tool to clamp the AC wiring terminal and wire rod; screw the nut, but do not tighten Step 8.2 - Connect the Backup and Grid cables in advance according to the connector mode, and it.
- Page 16 User Manual User Manual Step 9 - Connect the BAT communication cable of the cable box from Step 13 to the topmost battery Step 10 - Connect the power cables of the bottom battery from Step 4 to the side terminals of the top at the right side.
-
Page 17: External Ct Connection
User Manual User Manual Step 11 - Close the battery covers and connect the PV-MC4 connectors to the system (connection on NOTE: both sides). Also, connect all AC cables, the meter communications cable METER, and the Recommended AC circuit breaker rating is 32A for grid, 25A for backup. Ethernet cable LAN. -
Page 18: Dred Port Connections
User Manual User Manual 2. Install the waterproof component and screw on the waterproof sheath nut. Please follow below figure to assemble DRM connector. 3. Open the external CT wiring port, the arrow points to the direction of the power grid, put the wire into the external CT card slot, and buckle the buckle. -
Page 19: Single Line Diagram
User Manual User Manual 2.7 Single Line Diagram The single line diagrams of DC-, AC- and Hybrid-coupled system are as below: Figure 27: Hybrid-coupled system 3 System Operation 3.1 Switch On Figure 25: DC-coupled system When turning on the system, it is very important to follow the steps below to prevent damage to the system. -
Page 20: Switch Off
3. If the battery pack is on fire, do not try to extinguish but evacuate people immediately. When the GreenE 8K/10K/12K energy storage system appears to be running abnormally, you can turn There may be a possible explosion when batteries are heated above 150°C. When the battery off the grid-connected main switch that directly feeding the BESS, and turn off all load switches within pack is burning, it leaks poisonous gases. -
Page 21: Ems Introduction And Set Up
Temperature, Stop overcurrent, light light failure, charging protection Figure 29: GreenE 8K/10K/12K EMS Interface Figure 30: PACK Flash Normal light three Object Name Description times According to battery indicator Grid connection Flash... -
Page 22: Display And Setting
User Manual User Manual 4.2 Display and Setting Menu Menu Menu Menu Menu Menu Menu Menu Default Comment Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 Level 8 Selection 4.2.1 General settings The battery is only used as a backup power supply when After the machine is installed, you can use it by following the steps below. - Page 23 User Manual User Manual CT self-check steps: Menu Menu Menu Menu Menu Menu Menu Menu Default Comment Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 Level 8 Selection Step 1 - Open the external CT wiring port, the arrow points to the direction of the power grid, put the 9.
-
Page 24: Configuration Menus Overview
User Manual User Manual 4.3 Configuration Menus Overview Menu Menu Menu Menu Menu Menu Default Comment Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Selection Menu Menu Menu Menu Menu Menu Default Comment Level 1 Level 2 Level 3 Level 4 Level 5... - Page 25 User Manual User Manual Menu Menu Menu Menu Menu Menu Default Menu Menu Menu Menu Menu Menu Default Comment Comment Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Selection Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Selection...
- Page 26 User Manual User Manual Menu Menu Menu Menu Menu Menu Default Menu Menu Menu Menu Menu Menu Default Comment Comment Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Selection Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Selection...
- Page 27 User Manual User Manual Menu Menu Menu Menu Menu Menu Default Menu Menu Menu Menu Menu Menu Default Comment Comment Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Selection Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Selection...
-
Page 28: Battery Storage And Recharging
User Manual User Manual 5 Battery storage and recharging Menu Menu Menu Menu Menu Menu Default Comment Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Selection 5.1 Battery storage requirements PV: xx kWh Meter: xx kWh 1. -
Page 29: Stick Logger Quick Guide
User Manual User Manual 6 Stick Logger Quick Guide 6.3 Logger Status 6.1 Download APP 6.3.1 Check Indicator Light Lights Implication Status Description (All lights are single green lights). Step 1 - Scan the QR Code on the right side and download the APP. Light off: Fail to connect to the router. -
Page 30: Abnormal State Processing
User Manual User Manual 6.4 Abnormal State Processing 6.5 Usage Methods and Notices for Reset Button 6.5.1 Usage methods and key-press descriptions for reset button If the data on platform is abnormal when the stick logger is running, please check the table below and according to the status of indicator lights to complete a simple troubleshooting. -
Page 31: Create A Plant
User Manual User Manual 7.2 Create a Plant 7.4 Network Configuration Click "Add Now " to create your plant. After the logger is added, please configure the network to ensure normal operation. Go to "Plant Details"-"Device List", find the target SN and click "Networking". Please fill in plant basic info and other info here. -
Page 32: Alarm Code
User Manual User Manual Step 2 - Connect to AP network Click "Go to connect" and find the right "AP_XXXXX" network (XXXXX 8 Alarm Code and Error Code refers to logger SN).If the password is required, you can find the password on the logger 8.1 Alarm Code body. -
Page 33: Error Code
User Manual User Manual 8.2 Error Code Fault diagnosis table Codes English description Types Codes English description Soft Time Out (1) Restart the inverter and wait until it functions normally; Soft Time Out INV Volt Short (2) Contact customer service if error warning continues. GFCI Sensor Fault (1) Cut off all the power and shut down all the machines;... - Page 34 User Manual User Manual Types Codes English description Types Codes English description (1) Restart the inverter, restart the machine after a few minutes of (1) Wait one minute for the inverter to restart; Over Load Warning cooling, and observe whether the machine can return to normal. (2) Check whether the load is in compliance with the specification;...
-
Page 35: Product Specifications
User Manual User Manual 10 Product Specifications MODEL MF-GREENE-8K MF-GREENE-10K MF-GREENE-12K PV Terminal Battery Specifications PACK5.1 Vmax. PV 1100Vd.c. Electrical Rated Voltage 720Vd.c. Energy Capacity 5.1kWh MPPT Voltage Range 140~1000Vd.c. Battery Type LFP (LiFePO MPPT Range (full load) 380~850Vd.c. 420~850Vd.c. 480~850Vd.c. - Page 36 User Manual User Manual Table 9.1 Grid specification (single-phase) Backup Load Terminal Parameter Rated Voltage 230/400Vac Output Voltage Output Frequency Grid Specification Boot wait time (S) Rated Frequency 50/60Hz Range (Vac) Range (Hz) Rated Output Current 10.7Aa.c. 13.3Aa.c. 13.3Aa.c. China 187-252 49.5-50.2 Maximum Continuous Output Current...
-
Page 37: Routine Maintenance
User Manual User Manual 11 Routine Maintenance 11.2 Notes 11.1 Maintenance Plan After the equipment is out of operation, please pay attention to following notes while maintaining: ▪ ▪ Check if wire connections are loose. Related safety standards and specifications should be followed in operation and maintenance. ▪... - Page 38 User Manual Exclusion of Liability In the following circumstances, company has the right to refuse to honor the quality guarantee: ▪ The free warranty period for the whole machine/components has expired. ▪ The device is damaged during transport. ▪ The device is incorrectly installed, refitted, or used. ▪...
