Multi-application - LiFePO4 Power
UE-12Li50
Issued Date
Issued Version
1. General Information
This specification defines the performance of rechargeable LiFePO4 battery pack
MASTER BATTERY, S.L., describes the type, performance, technical characteristics, warning and caution of the
battery pack.
2. Specification
NO.
Items
Normal Specification
1
Nominal Voltage
2
Normal Capacity
3
Internal Resistance
4
Series application
Standard Charge
5
Operation temperature range @charging
6
Normal charge voltage
Recommended float charge voltage
7
(for Standby use)
8
Allowed MAX charge current
9
Recommended charge current
>
2016-02-24
>
V01
Polígono industrial La Dehesa
C/ Dehesa Vieja,nº2 Nave 16
28052 Madrid (Spain)
Tel. (+34) 918 021 649
Fax. (+34) 917 750 542
info@masterbattery.es

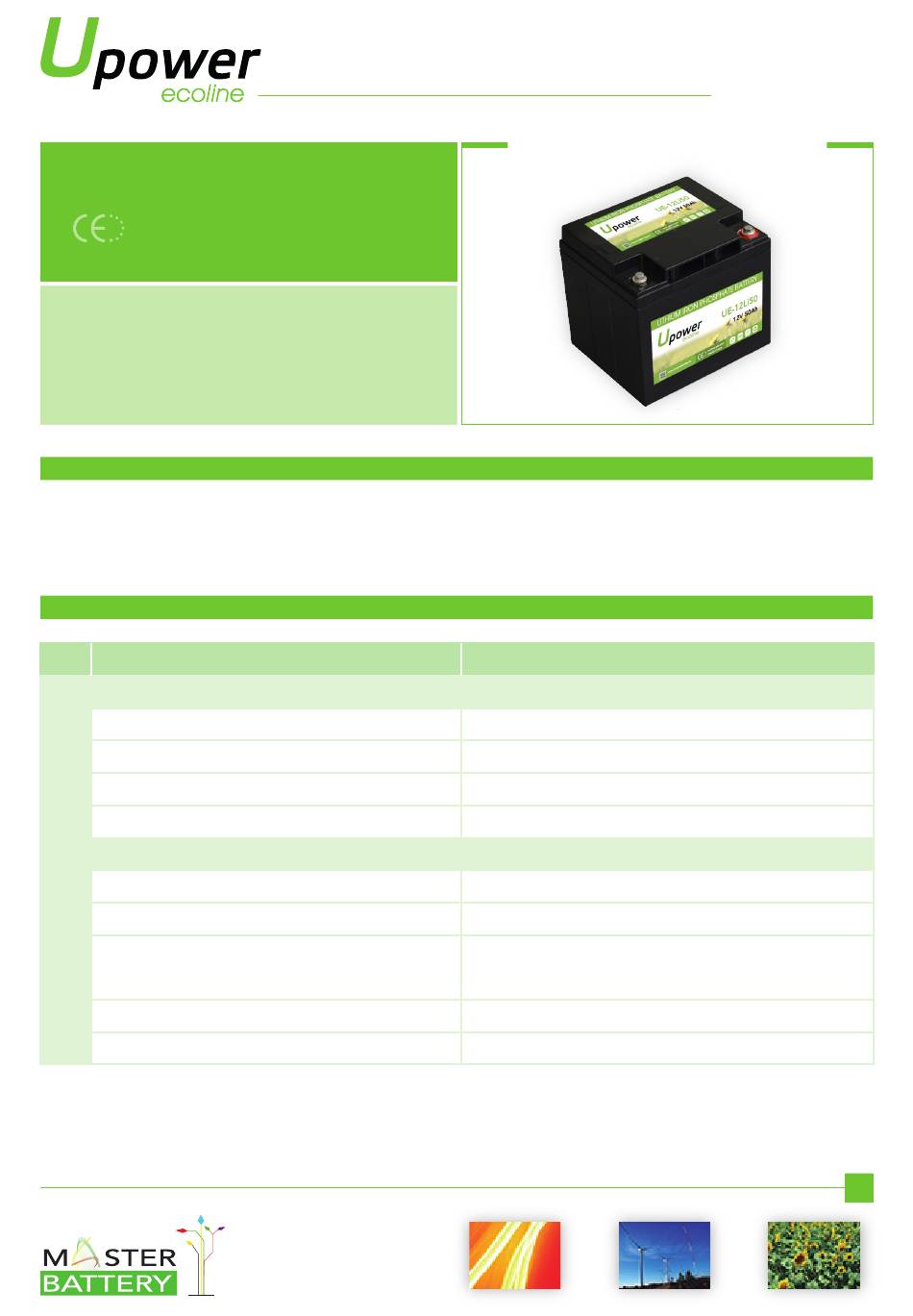

LITHIUM IRON PHOSPHATE BATTERY
UE-12Li50
Description
12.8V
50Ah
≤20mΩ
Not allowed
0~45°C
14.6±0.1V
13.8±0.1V
50A @ Battery initial Temp 25±5°C
≤25A
www.masterbattery.es
manufactured by
01
01
01
01
