Multi-application - LiFePO4 Power
UE-12Li30BL
Issued Date
Issued Version
1. General Information
This specification defines the performance of rechargeable LiFePO4 battery pack
MASTER BATTERY, S.L., describes the type, performance, technical characteristics, warning and caution of the
battery pack. The battery pack support Bluetooth communication function. Through Android and IOS APP, can
read the battery status and information. Especially due to the Android system's openness, different smart phone
manufacturer will have their own different Bluetooth hardware version and customized feature Android systems.
So the APP may not work well on some smart phones (with Android system) due to compatible issue.
It is necessary for the customer to confirm whether the phone is compatible for the APP.
2. Specification (@Battery initial Temp25±5°C)
NO.
Items
Rated Capacity
1
Minimum Capacity
2
Energy
3
Nominal Voltage
4
Outgoing Voltage
5
Internal resistance
6
Limited charge voltage
7
Floating charge voltage
8
Standard charge current
9
Maximum charge current
Standard discharge current
10
11
Maximum discharge current
12
Peak discharge current
>
2016-12-13
>
V00
Polígono industrial La Dehesa
C/ Dehesa Vieja,nº2 Nave 16
28052 Madrid (Spain)
Tel. (+34) 918 021 649
Fax. (+34) 917 750 542
info@masterbattery.es

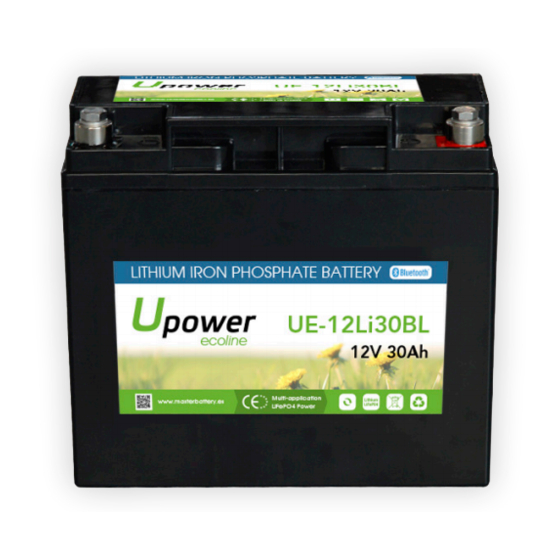

LITHIUM IRON PHOSPHATE BATTERY
UE-12Li30BL
Description
30Ah
28.5Ah
0.384KWh
12.8V
≥12.8V
≤40mΩ
14.6±0.1V
13.8±0.2V
15A
40A
15A
40A
150A/Continuous for 3s
www.masterbattery.es
manufactured by
01
01
Advertisement
Table of Contents
Related Manuals for Master Battery UPOWER Ecoline UE-12Li30BL
Summary of Contents for Master Battery UPOWER Ecoline UE-12Li30BL
- Page 1 UE-12Li30BL manufactured by MASTER BATTERY, S.L., describes the type, performance, technical characteristics, warning and caution of the battery pack. The battery pack support Bluetooth communication function. Through Android and IOS APP, can read the battery status and information. Especially due to the Android system’s openness, different smart phone manufacturer will have their own different Bluetooth hardware version and customized feature Android systems.
- Page 2 UE-12Li30BL www.masterbattery.es Items Description Discharge cut-off voltage 8.0V Length: 196±2mm Dimension Width: 165.5±2mm Height: 174±2mm Weight Approx: 5.3±0.5Kg Charging: 0~45°C Operating Temperature Discharging: -20~60°C Recommended operating temperature: 15°C~35°C Residual capacity: ≤3%/month; ≤15%/years Self-discharge rate Reversible capacity: ≤1.5%/month; ≤8%/years Less than 1 month: -20°C~35°C，45% RH~75％ RH Less than 3 months: -10°C~35°C，45% RH~75％ RH Storage Temperature &...
- Page 3 UE-12Li30BL www.masterbattery.es 4. Product Performance Items Criteria Testing Method Rated Capacity 30Ah Rest for 1 hour after fully charged, then discharge with 0.33C current until the battery reaches the discharge cutoff voltage. Repeat above process for three times, if the discharge time is not less than 120 Minimum Capacity 28.5Ah minutes, you can stop and define the Discharging...
- Page 4 UE-12Li30BL www.masterbattery.es Items Content Specification Over-charge protection for each cell 3.80±0.03V Over charge Over-charge release for each cell 3.60±0.05V Over-charge release method Under the release voltage Over-discharge protection for each cell 2.0±0.08V Over discharge Over-discharge release for each cell 2.3±0.1V Over-discharge release method Charging recovery Discharge over current protection...
- Page 5 Please read and follow the specification and caution remarks on battery surface before use the battery. Improper use may cause heat, fire, rupture, damage or capacity deterioration of the battery. MASTER BATTERY, S.L. descri- bes is not responsible for any accidents caused by the usage without following our specification.
- Page 6 UE-12Li30BL www.masterbattery.es 9. Battery Operation Instruction 9.1 Charge and discharge 9.1.1 Charging current: Do not surpass the largest charging current that specification stipulated. 9.1.2 Charging voltage: Do not surpass the highest limited voltage that specification stipulated. 9.1.3 Charging temperature: within temperature scope that specification stipulated. 9.1.4 Charge with constant current, then with the constant voltage, no reverse charge, which is dangerous.
