SpyCentre Security® Since 1993
How to charge the battery:
● Connect the recorder to a PC or USB power supply with the provided USB to USB cable
● It takes 6-8 hours to fully charge
●
Orange light
●
Green light
= Fully Charged but not recording
●
A blinking orange light
●
A blinking green light
●
Red light
= No card, card fail or cards memory full
Note: Ensure the unit is fully charged and insert an SD card up to 256GB. If you are using
a 64GB card or larger, you must format the card through the ZMax 86 Micro Stick for it to
record video files.
How to format 64-256GB Micro SD cards:
● Insert an SD card and plug the device in for power, but do not turn it on. The orange
charge light will come on
● Insert a pin or something small and thin into the "Upgrade" hole and release when the
orange charging light flashes red
● Press the "Upgrade" button again and release when the flashing red light starts to flash
green
● Disconnect the camera from the power source, and the SD card will now be formatted
with this camera

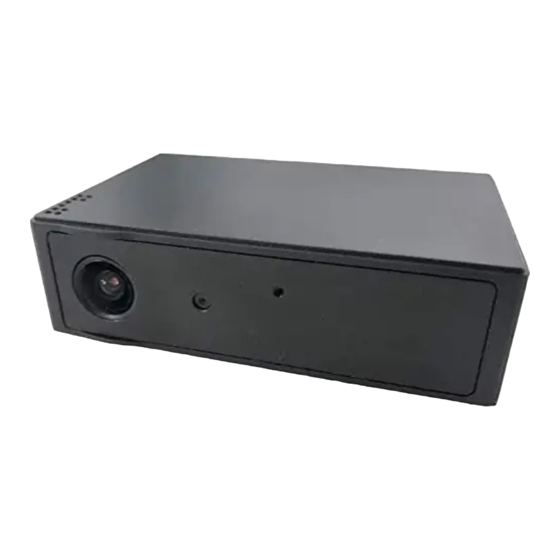

6757 - 1080P ZMax MicroCam
= Charging but not recording
= Charging and recording
= Charging complete and recording
1-800-292-77488
Advertisement
Table of Contents
Related Manuals for Spycentre Security 1080P ZMax MicroCam
Summary of Contents for Spycentre Security 1080P ZMax MicroCam

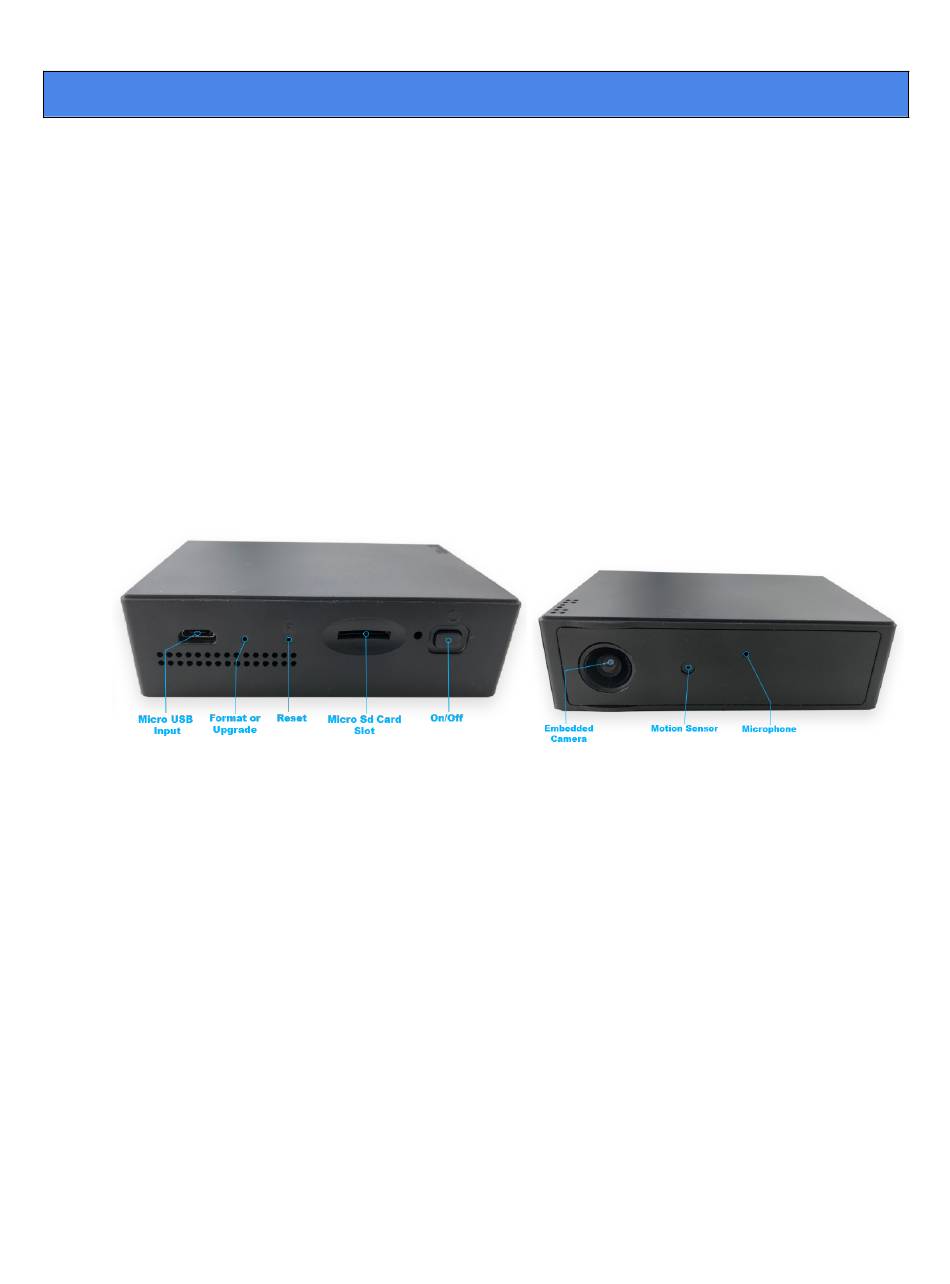

- Page 1 SpyCentre Security® Since 1993 1-800-292-77488 6757 - 1080P ZMax MicroCam How to charge the battery: ● Connect the recorder to a PC or USB power supply with the provided USB to USB cable ● It takes 6-8 hours to fully charge ●...
- Page 2 How to turn on the camera: ● Hold the power button on the right side of the unit for 3-5 sec. The indicator light will turn a solid green color; once the indicator light is flashing green, the device is now recording ●...
- Page 3 How to playback files on a Mac computer: ● Connect the device to a computer with the included USB cable or remove the micro SD card from the device and connect it to the computer with an SD card reader ●...
- Page 4 How to delete files on a Mac computer: ● Open the “Zetta” folder ● Right-click on the file you wish to delete and select “Delete” ● While the device is still plugged into the Mac, go to your trash folder and empty the trash Note: If the above step is not completed on a Mac, the recorded files will not be entirely deleted from the device.
- Page 5 ● To change all files to default, open with VLC Media Player: Right-click and choose “Properties,” then click on the “Change” button next to “Open With” and change it to VLC, then press ok. Now the files will default open with VLC Note: If the memory folder of the recorder does not automatically open when connected to a PC, disconnect the device and perform the following.
