- Page 1 OWNER’S MANUAL...
-
Page 2: Table Of Contents
Safety Precautions � � � � � � � � � � � � � � 3 TOP PANEL � � � � � � � � � � � � � � � � � � � 6 REAR PANEL � � � � � � � � � � � � � � � � � � 7 CHANGING THE BATTERY �... -
Page 3: Safety Precautions
ENGLISH Before using this device, be sure to read this manual thoroughly for safe use of it� After that, keep this manual in a safe place and read it whenever necessary� Safety Precautions === Be sure to observe the following precautions === In order to use this device properly, the contents to be observed are explained, classified as follows�... - Page 4 Warnings Never disassemble or modify the device In case of an abnormality such as smoke, burning smell or abnormal sound,immediately stop using the device� Immediately unplug the AC adapter from the outlet� Do not operate with wet hands� <<A short circuit or an electric shock may occur�>>...
- Page 5 Cautions When not in use for a long time, be sure to unplug the AC adapter from the outlet for safety� <<A fire may occur�>> Do not apply excess force, drop nor give strong physical impact <<A failure or injury may occur�>> Do not use thinner, alcohol, and the like for cleaning <<It may cause a failure�>>...
-
Page 6: Top Panel

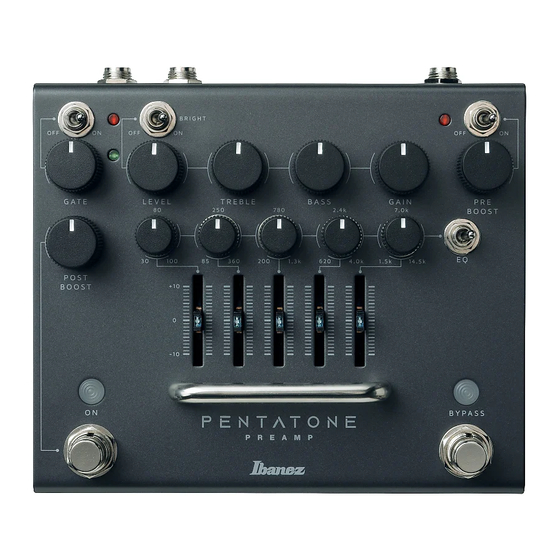

TOP PANEL NOISE GATE DISTORTION PRE BOOST 5-BAND EQ POST BOOST BYPASS... -
Page 7: Rear Panel
REAR PANEL CHANGING THE BATTERY Unplug the instrument when not in use to prolong the battery life� When battery power is running low, LEDs on the top panel gets dim or does not light� Replace the battery�... -
Page 8: Operation
OPERATION PRE BOOST On/off switch Turns the PRE BOOST function on/off� Indicator Red LED lights when the PRE BOOST is turned on� PRE BOOST Controls the boost level� When turning this knob all the way to the left, no sound outputs� DISTORTION BRIGHT Boosts the high frequencies�... - Page 9 5-BAND EQ On/off switch Turns the 5-BAND EQ function on/off� When the 5-BAND EQ is turned on, blue LEDs on the slider light up� Frequency Selects the center frequency of each band to be boosted or cut� Regarding the frequency range of each band, refer to the specification table� Slider Controls the amount of boost or cut that applied to each frequency band�...
- Page 10 Turning the knob clockwise, increases the threshold which means the signal will be muted faster� BYPASS On/off switch True bypass switch turns the PENTATONE PREAMP on/off� Indicator Red LED lights when the PENTATONE PREAMP is turned on�...
- Page 11 (AC/DC adapter etc�) When using this jack, the internal battery is switched off� REMOTE Connect the Ibanez IFS2L footswitch (sold separately)� You can turn the PRE BOOST and the 5-BAND EQ on/off remotely� When the footswitch is connected, the toggle switches on the pedal for the PRE BOOST and the 5-BAND EQ ON/OFF are disabled�...
-
Page 12: Specifications Of 5-Band Eq
Specifications of 5-BAND EQ Freq� band Low mid High mid High 100Hz 360Hz 1�3kHz 4�0kHz 14�5kHz Center 80Hz 250Hz 780Hz 2�4kHz 7�0kHz 30Hz 85Hz 200Hz 620Hz 1�5kHz... -
Page 13: Specifications
Specifications Input Impedance 300k ohms Output Impedance 1k ohms Maximum Output Level +7�2 dBu One 9V Battery (006P) or external Power Supply AC Adapter (Use DC9V Required Current 110 mA@9V 146mmW x 128mmD x 59mmH Size [mm] Size [inch] 5�8"W x 5�0"D x 2�3"H Weight 1�0kg, 2�2lb (Including Battery) -
Page 14: System Block Diagram
System Block Diagram Dry signal detection OUTPUT Center freq. level GATE INPUT PRE BOOST GAIN BASS TREBLE BRIGHT LEVEL POST BOOST Pre boost 5 band-parametric EQ Distortion Noise gate Post boost... - Page 15 HOSHINO GAKKI CO.,LTD. Printed in China JUN221212...
- Page 16 www.ibanez.com...
