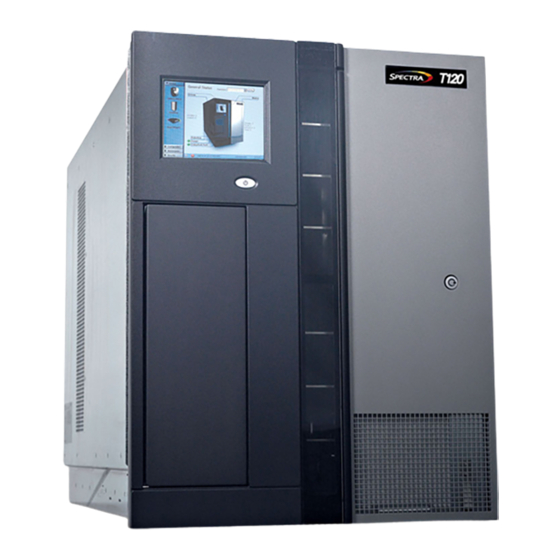

Spectra T120 Service Quick Reference Manual

Service Procedure Quick Reference
Tape Drive Replacement
T120
Tools & Supplies

Estimated Time

ESD Protection

Library Power

Data I/O Operations

Robotic Movement

Admin./Superuser
BlueScale Login

Considerations

Not a substitute for official published procedural guide
Detailed instructions/videos located at support.spectralogic.com

Replacement drive

USB flash drive (FAT32)
o For collecting Auto-support Log File (ASL)
20 minutes
Required
On
Discontinue

Drive being replaced is the exporting controller for the partition

Verify with customer that data I/O to drive being replaced has halted
*Data I/O to non-affected drives can continue
Continue
Required

Replacement drive must be reinstalled into same physical drive slot in chassis,
host applications identify drives by their position in chassis

Prior to inserting replacement drive into library, verify compatibility of
replacement drive sled connector with library drive slot (or compare with drive
being replaced)
o If incompatible, check replacement drive packaging for adapter. If no
adapter shipped, contact Spectra Technical support

Replacement drive must be same LTO generation and host connection type as
drive being replaced

Drive module weighs approx. 15 lb. (7 kg), use care when handling

Ensure host interface cabling is connected to correct port on new drive.
Connecting cabling to wrong port can prevent host system from recognizing
new drive

SCSI Drives (legacy): If replacing a SCSI drive, Spectra Logic recommends host
be powered down PRIOR to replacing drive. Also, ensure that SCSI terminators
(if present on drive to be replaced) are transferred to new drive
August 2017 V2
