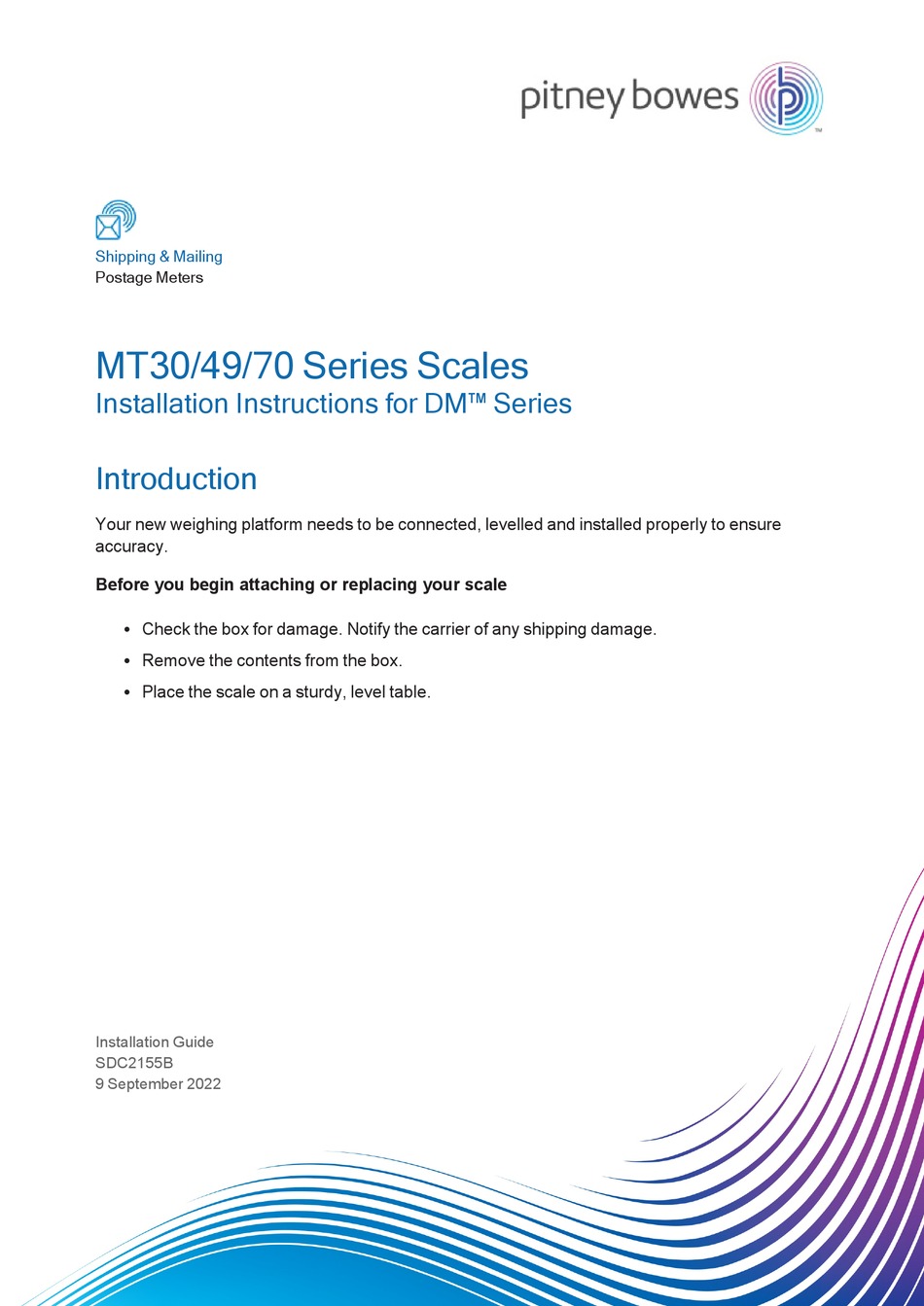

Shipping & Mailing
Postage Meters
MT30/49/70 Series Scales
Installation Instructions for DM™ Series
Introduction
Your new weighing platform needs to be connected, levelled and installed properly to ensure
accuracy.
Before you begin attaching or replacing your scale
Check the box for damage. Notify the carrier of any shipping damage.
l
Remove the contents from the box.
l
Place the scale on a sturdy, level table.
l
Installation Guide
SDC2155B
9 September 2022
Advertisement
Table of Contents
Related Manuals for Pitney Bowes MT30 Series
Summary of Contents for Pitney Bowes MT30 Series
- Page 1 Shipping & Mailing Postage Meters MT30/49/70 Series Scales Installation Instructions for DM™ Series Introduction Your new weighing platform needs to be connected, levelled and installed properly to ensure accuracy. Before you begin attaching or replacing your scale Check the box for damage. Notify the carrier of any shipping damage. Remove the contents from the box.
- Page 2 1. Connect the USB cable to the Weighing Platform Plug the square end of the enclosed USB cable into the connector on the bottom of your weighing platform as shown. Pitney Bowes Installation Guide September 2022...
- Page 3 Remove the top cover of the weighing platform. Lift the corner(s) and adjust the leg(s) by turning them until the bubble is in the centre of the circle as shown. Replace the top cover. Pitney Bowes Installation Guide September 2022...
- Page 4 Model MT49, 70 Remove the Weighing Platform's top cover. Lift the corner(s) and adjust the leg(s) by turning them until the bubble is in the centre of the circle as shown. Replace the top cover. Pitney Bowes Installation Guide September 2022...
- Page 5 Insert the USB cable into one of the rectangular USB ports on the back of your meter. Note: If no USB ports are available in the meter you may need to use a USB hub. Attach the Weighing Platform to the hub. Pitney Bowes Installation Guide September 2022...
- Page 6 Note: For first time scale installation, you will need to enter a Location Code (see below). If this is a scale replacement, proceed to page 7. Refer to the map to find the correct Location Code for your scale. Follow the prompts on your meter's display to enter the correct location code. Pitney Bowes Installation Guide September 2022...
- Page 7 USB lead from the back of your meter. Place a piece of mail on the scale. Press the Class key, then select the desired class and fee. Check the screen for the correct postage amount. Pitney Bowes Installation Guide September 2022...
- Page 8 3001 Summer Street Stamford, Connecticut 06926 www.pitneybowes.com PB Form SDC2155-gb Rev.B © Pitney Bowes Limited, 2022 We have made every reasonable effort to assure the accuracy and usefulness of this guide, however we cannot assume responsibility for errors or omissions or liability for the misuse or misapplication of our products.
