6.1 TRANSMITTER CONFIGURATION

The transmitter is comprised of the following sub-assemblies (Figure 6-1):
5100-99-IT
SPL21810
SPL21823
SPL21824

6.2 ENCLOSURE REPLACEMENT

The enclosure should be replaced if the cover threads or conduit threads have been damaged, or if the
enclosure has been damaged sufficiently that it no longer meets the required NEMA classification.
To replace the enclosure follow the transmitter removal instructions, remove the damaged enclosure from its
conduit, install a new enclosure and replace the transmitter and sensor assembly.
NOTE: Refer to Appendix G for service information for the 5100-25-IT.

6. SERVICE

Transmitter
Aluminum Enclosure
316SS Enclosure
Transmitter Assembly

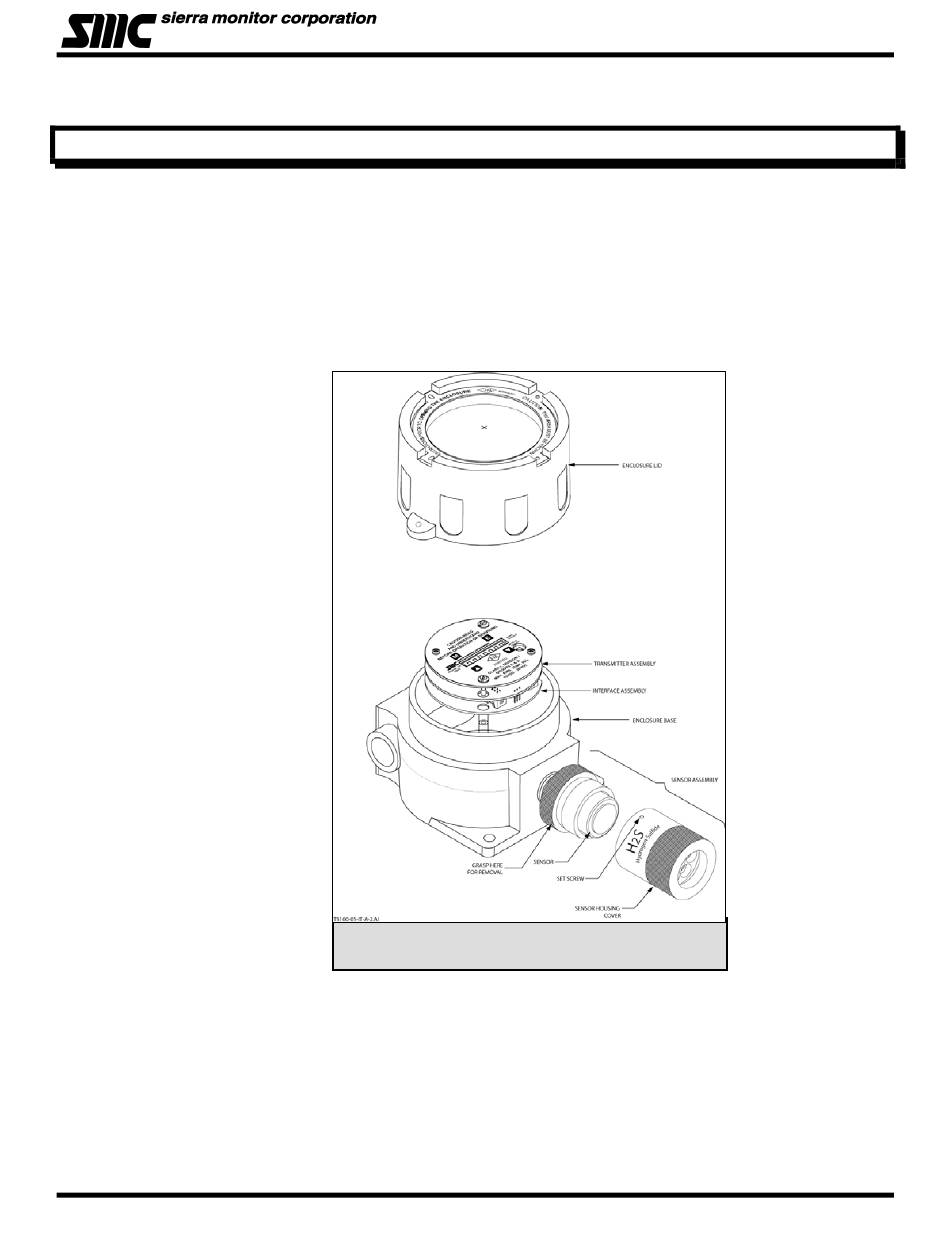

Figure 6-1
Transmitter Components
Page: 23
Model 5100-99-IT 4-20 mA Module
