4.1 INTRODUCTION – HUMAN-MACHINE INTERFACE SYSTEM
The transmitter utilizes a visual menu system operated by means of a magnet. A magnetic tool (5358-50) is
supplied for this purpose. The menu system is used to configure alarm set-points, calibrate the transmitter,
and for maintenance procedures and alarms acknowledge.

4.2 HUMAN-MACHINE INTERFACE

The transmitter menu system is operated by means of directing the magnet stick toward each of four
independent hall-effect magnetic switches.
functions as if it is a manually activated panel key. The keys are located above and below the faceplate
display and are labeled
•
Key : MODE
M
•
Key : ENTER
E
•
Key ▲: UP (+)
•
Key ▼: DOWN (-)
Key M
Key /\

4. OPERATION

The enclosure lid should remain on the unit.
, , ▲ and ▼ as shown in Figure 4-1. The key functions are as follows:
M E

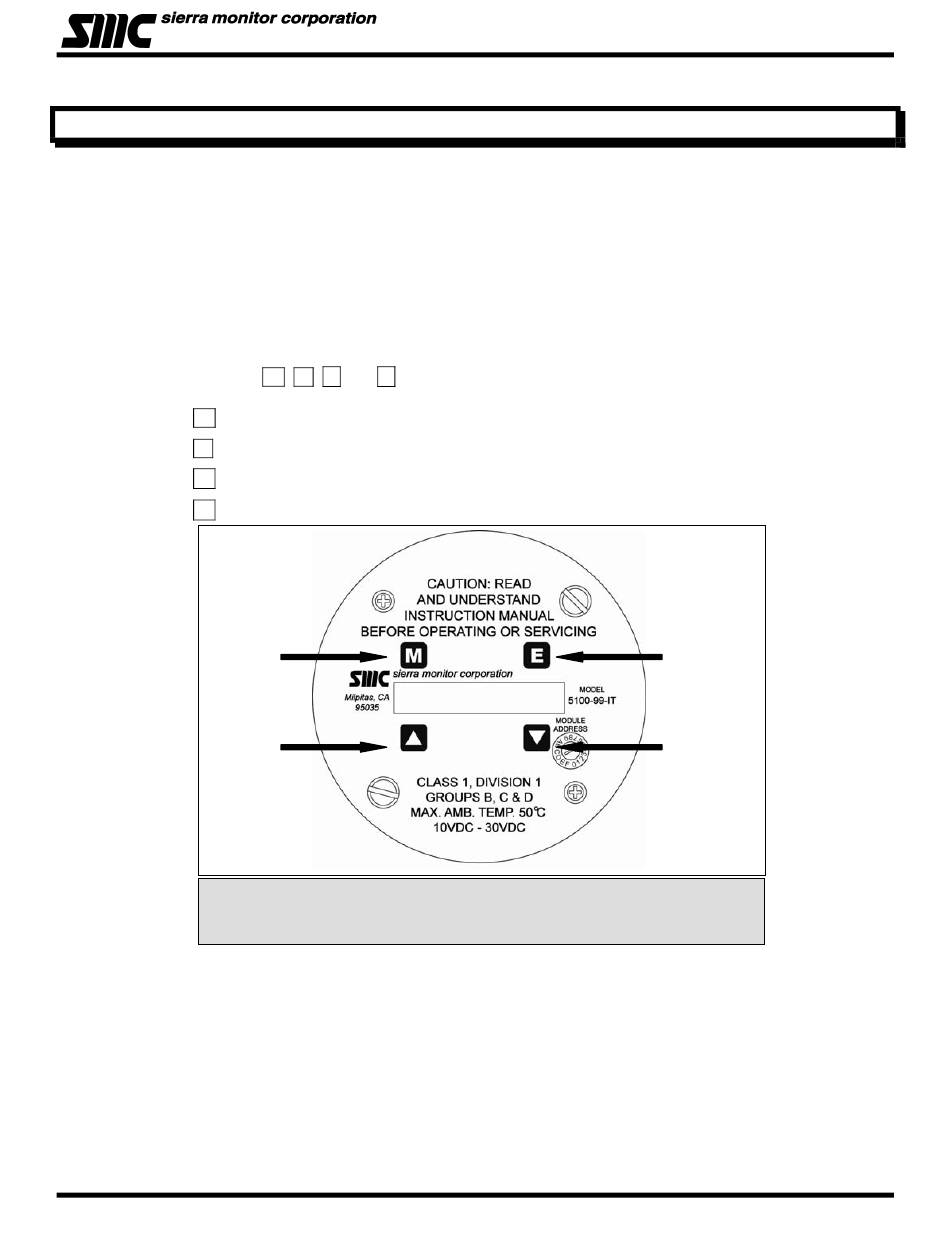

Figure 4-1:
IT Transmitter – Menu Switch Locations
Page: 15
Model 5100-99-IT 4-20 mA Transmitter
Key E
Key \/
Each switch
