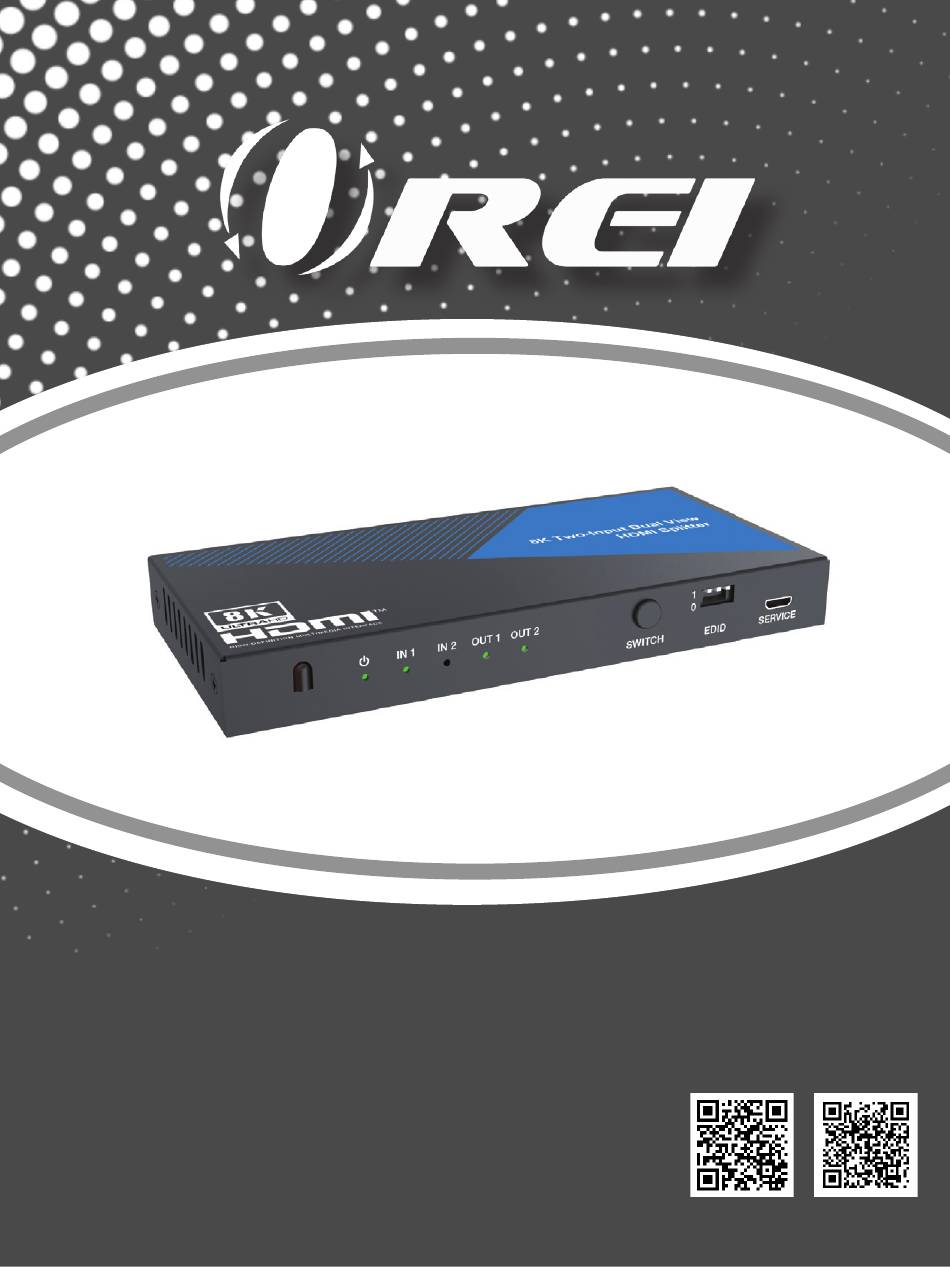

- Page 1 BK-22 8K Two-Input Dual View Follow us on Youtube and Facebook HDMI Splitter U S E R M A N U A L www.orei.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions IR Remote Application Example Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this prod- uct. - Page 3 OREI Live Technical Support Hours US team (US/Canada/Mexico): Monday-Friday, 9 a.m. - 6 p.m. Central Time Support Email - info@orei.com |Support Number - 877-290-5530 Chat Live on www.orei.com Send us an instant message now. Our Technical Support Team will respond momentarily.
-
Page 4: Introduction
Introduction This 8K Two-Input Dual View HDMI Splitter can not only switch any of the two HDMI input signals, but also distribute it to two displays simultaneously. It supports video resolution up to 8K@60Hz 4:2:0. It supports advanced EDID management. As able to be used either as a splitter or a switcher, this multifunctional product can be widely applied in scenarios of demonstration, video conference, multime- dia teaching and other occassions requiring for big-screen demonstration. -
Page 5: Features
Features HDMI 2.1 and HDCP 2.3 compliant Support 40Gbps video bandwidth Support video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit VRR, FVA, ALLM supported Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD 2x2 Switch with Dual Output Built-in Equalizer, Retiming and Driver... -
Page 6: Specifications
Specifications Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Video Bandwidth 40Gbps Video Resolution Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit Color Depth 8-bit, 10-bit, 12-bit Color Space RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 HDR, HDR10, HDR10+, Dolby Vision, HLG pass through LPCM, Dolby Digital/Plus/EX, Dolby True HD,DTS,... - Page 7 Specifications Mechanical Housing Metal Enclosure Silkscreen Color Black Dimensions 145mm (W) × 68mm (D) × 17mm (H) Weight 265 g Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (Non-condensing) Power Consumption (Max) 6.15W (Max)
-
Page 8: Operation Controls And Functions
Operation Controls and Functions Front Panel IN 1 IN 2 OUT 1 OUT 2 SWITCH EDID SERVICE Rear Panel OUT 1 OUT 2 IN 1 IN 2 DC 5V Name Function Description IR Window IR input signal receiving window. The power LED lights in green when the device is working, POWER LED and red when the device is in standby. - Page 9 Operation Controls and Functions Name Function Description Use the DIP switch to set EDID. 111 - Copy OUT1 port sink EDID (as factory default) 110 - HDMI 1080p@60Hz, Audio 2ch PCM 101 - HDMI 4K@60Hz 4:4:4, Audio 2ch PCM, HDR 100 - HDMI 4K@60Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY, 011 - HDMI 4K@60Hz 4:4:4, EDID DIP...
-
Page 10: Ir Remote
IR Remote : Power on the product or set it to standby mode. OUTPUT 1/2 : Press 1/2 button to select HDMI signal source IN 1/2 to the corresponding OUT 1/2 port. : Press this button to cyclically switch HDMI signal source IN 1/2 to the corresponding OUT 1/2 port. -
Page 11: Application Example
Application Example 8K TV 1 DVD or Blu-ray Player Power Supply OUT 1 OUT 2 IN 1 IN 2 DC 5V 8K TV 2 page 11... - Page 12 8K Two-Input Dual View HDMI Splitter www.orei.com © 2022...
