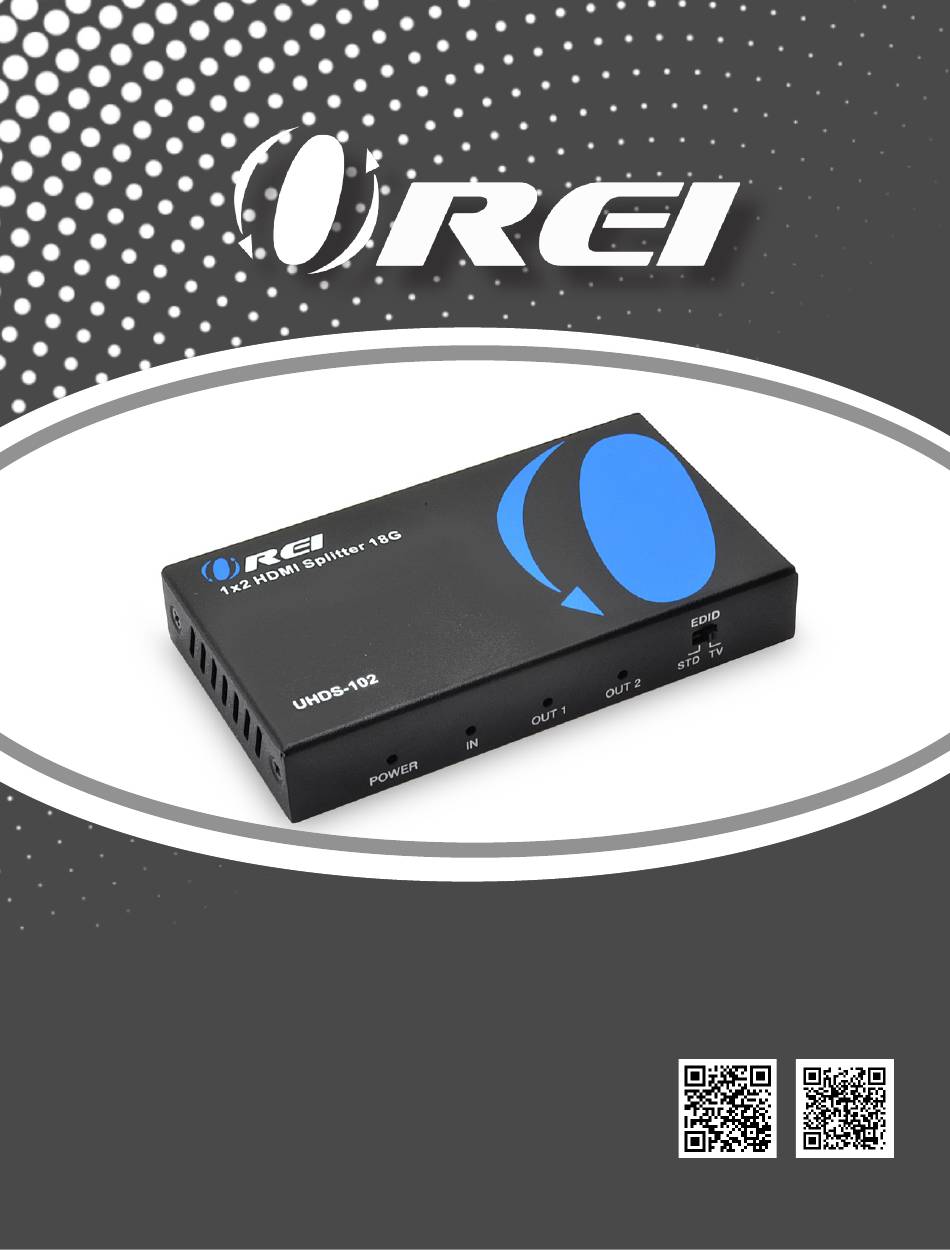

- Page 1 1×2 HDMI 18Gbps Follow us on Youtube and Facebook Splitter U S E R M A N U A L www.orei.com...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction page 04 2. Features page 05 3. Package Contents page 05 4. Specifications page 06 5. Operation Controls and Functions page 07 6. Application Example page 09 Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. - Page 3 OREI Live Technical Support Hours US team (US/Canada/Mexico): Monday-Friday, 9 a.m. - 6 p.m. Central Time Support Email - info@orei.com |Support Number - 877-290-5530 Chat Live on www.orei.com Send us an instant message now. Our Technical Support Team will respond momentarily.
-
Page 4: Introduction
Introduction 1x2 HDMI 18Gbps Splitter is an advanced solution for splitting a HDMI content to 2 HDMI outputs synchronously. It provides high performance audio and video up to 4K2K@60Hz (4:4:4) and is capable of receiving, retiming and transmitting up to 18Gbps of bandwidth with no data loss. -
Page 5: Features
Features HDMI 2.0b, HDCP 2.2 compliant Up to 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4 VESA format up to QSXGA@60Hz Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio Built-in equalizer, retiming and driver Smart EDID, STD(1080p) mode and TV(copy OUT1) mode Compact design for an easy and flexible installation Package Contents 1×2 HDMI 18Gbps Splitter... -
Page 6: Specifications
Specification Technical Video Bandwidth 600MHz/18Gbps Input Port 1×HDMI Type A (19-pin female) Output Ports 2×HDMI Type A (19-pin female) Video Resolution 4K2K@24/25/30/60Hz ESD Protection Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) Mechanical Chassis Material Metal Silkscreen Color Black Power Consumption Weight 165g Power Supply... -
Page 7: Operation Controls And Functions
Operation controls and functions Name Function Description POWER LED This blue LED illuminate when the device is connected with power supply. IN LED This blue LED illuminate when the Source is connected to the device. OUT LED These blue LEDs will light up to indicate which HDMI output port is connected to an active TV/ display/monitor. - Page 8 Operation controls and functions Name Function Description EDID TV When in ‘TV’ mode (COPY OUT1), INPUT EDID is set to COPY OUT1, the unit supports Downscaler function: If the HDMI OUT1 port is connected with 1080P TV, all output is bypass; If the HDMI OUT1 port is connected with 4K TV, 4K output is bypass, 1080P output will be Downscaled.
-
Page 9: Application Example
Application Example page 09... - Page 10 Application Example page 10...
- Page 11 1×2 HDMI 18Gbps Splitter www.orei.com © 2020...
