Orei HD12-EX132-K User Manual

1080p uncompressed 1x2 hdmi splitter over 40meter cat6 with ir

Download this manual

Thank you for purchasing the OREI HDMI Extender. For optimum

performance and safety please carefully read the instructions and

keep them for future reference.

· IMPORTANT SAFETY NOTICE

1. Do not mix up the transmitter unit (TX) and the receiver unit (RX),

IR blaster extension cable and IR receiver extension cables before

installation.

2. Do not unplug while the device is in use.

3. Power the device using the included 5V DC power supply adapter

only. If using other adapters please make sure the specs are identical.

4. Static electricity will damage this item. Please follow ESD protection

guidelines while installing this device.

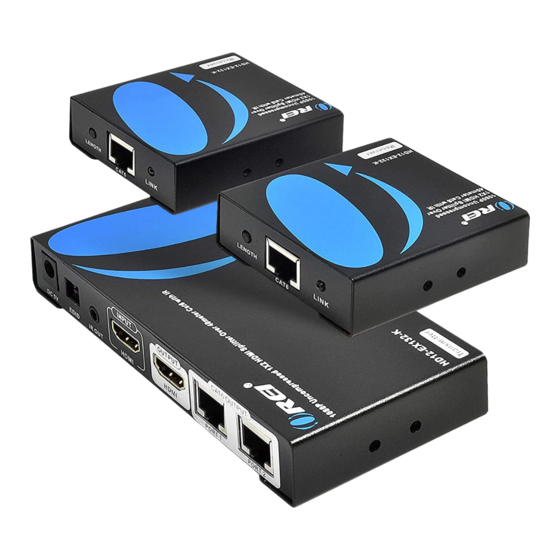

The OREI HD12-EX132-K HDMI extender kit includes 1 transmitter

and 2 receives which allows you transmit 1080P HDMI signal to 2

displays up to 132 ft via Cat/6A/7 LAN cable. This kit supports IR

passback with wide IR frequency between 20~60KHz.

DC5V/1A x2pcs

1. Distribute 1 HDMI source to 2 HD displays over Lan Cables

2. Supports 1080P signal up to 132 ft over LAN

3. Supports CAT6/6A/7 LAN Cables

4. Plug & play easy set-up without software installation

5. Support 20-60KHz IR passback

6. Support one HDMI loop-out and EDID management

· FUNCTION

Need help?

Do you have a question about the HD12-EX132-K and is the answer not in the manual?

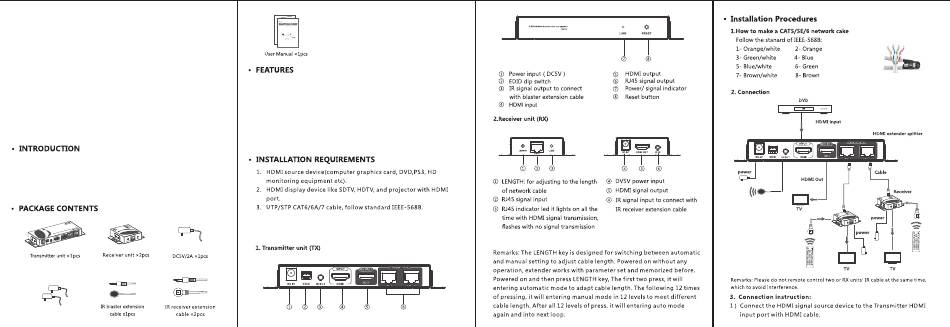

Page 1 Thank you for purchasing the OREI HDMI Extender. For optimum performance and safety please carefully read the instructions and keep them for future reference. · IMPORTANT SAFETY NOTICE 1. Do not mix up the transmitter unit (TX) and the receiver unit (RX), IR blaster extension cable and IR receiver extension cables before 1.
