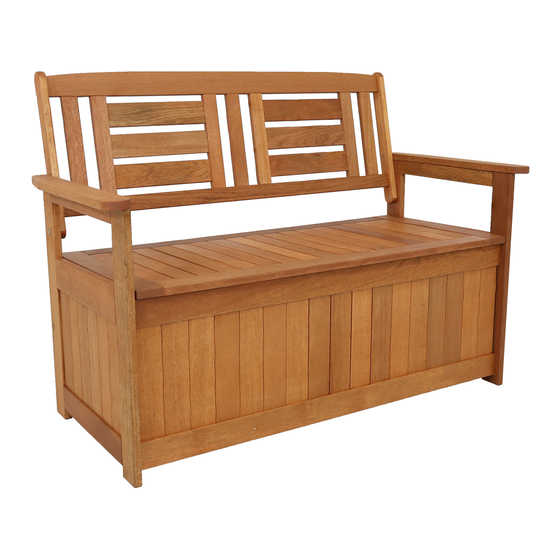

MERANTI WOOD STORAGE BENCH
Assemble components on a soft, clean surface to avoid damaging the finish. Save this manual for future reference.
2-PERSON
RECOMMENDED
CHOKING HAZARD — This item contains small parts that can be
swallowed. Keep children and pets away during assembly.
If the hex key is not fully inside the notch, the hex key could slip
out, causing damage to the bolt head. Repeated hex key slipping
will cause the notch to become rounded, making it difficult or
impossible to tighten the bolt with the hex key.
88891
Purchase Date:
Thank you for choosing Sunnydaze Decor. We stand behind our brand and the quality of the items we sell.
Replacement parts or products will be sent at our discretion within the 1-year warranty period. Proof of purchase, with
the date of purchase as well as photos of the merchandise defect, must be provided. Photos are used to determine
the cause of defects and for future quality control. Register your warranty at
If you have any questions, comments or concerns, feel free to contact us by phone at 833-982-1977, by email:
customerservice@sunnydazedecor.com, or via our contact us page at
Inspect packaging to ensure all
parts are accounted for before
disposing of packing materials.
WARNING
Tip: Always fully insert
the hex key inside the
designated notch of
the bolt.
/
/
Order/Customer Reference Number:
FRN-893
No.
A
B
C
D
440
pounds
200 kg
Weight Capacity
E
F
G
H
I
J
K
L
M
N
O
10/2021
https://tiny.cc/SunnydazeWarranty
https://tiny.cc/SunnydazeContact
Parts
Backrest
Right Arm
Left Arm
Front Panel
Back Panel
Lid
Bottom Panel
JCBC M6x60 Grub Screw
JCBC M6x40 Bolt
JCBC M6x16 Bolt
Coupling Nut
Curved Washer
Hinge (L&R)
Hex Key
Spanner
Qty.
1
1
1
1
1
1
1
8
4
12
8
8
2
1
1
Page 1 / 3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunnydaze Decor MERANTI FRN-893
Summary of Contents for Sunnydaze Decor MERANTI FRN-893
- Page 1 Order/Customer Reference Number: Thank you for choosing Sunnydaze Decor. We stand behind our brand and the quality of the items we sell. Replacement parts or products will be sent at our discretion within the 1-year warranty period. Proof of purchase, with the date of purchase as well as photos of the merchandise defect, must be provided.
- Page 2 ASSEMBLY Read carefully and understand assembly before beginning. Do not fully tighten bolts until all components have been loosely assembled. STEP 1 STEP 2 B: 1 D: 1 C: 1 E: 1 H: 8 K: 8 L: 8 • Insert 4x JCBC M6x60 Grub Screw (H) into the inside •...
- Page 3 STEP 5 STEP 6 A: 1 F: 1 J: 6 • Align Lid (F) with the top of Hinge (M) and secure by • Affix Backrest (A) to the arms using 4x JCBC M6x40 hand-tightening 3x JCBC M6x16 Bolt (J) Bolt (I), as shown.
