2-PERSON
RECOMMENDED
HELPFUL HINT
Sunnydaze advises reading this manual fully, and assembling the item soon after purchase. Check that all
parts are accounted for and familiarize yourself with the assembly before beginning.
Assemble components on a soft, clean surface to avoid scratching/damaging the finish.
Save this manual for future reference.
WARNING!
CHOKING HAZARD — This item contains small parts that can be swallowed. Keep children away during assembly.
PH004-3
Purchase Date:
/
/
Order/Customer Reference Number:
Thank you for choosing Sunnydaze Decor. We stand behind our brand and the quality of the items we sell.
Replacement parts or products will be sent at our discretion within the 1-year warranty period. Proof of purchase, with
the date of purchase as well as photos of the merchandise defect, must be provided. Photos are used to determine
the cause of defects and for future quality control. Register your warranty at
If you have any questions, comments or concerns, feel free to contact us by phone at 888-881-4668, by email:
customerservice@nethealthshops.com, or via our contact us page at

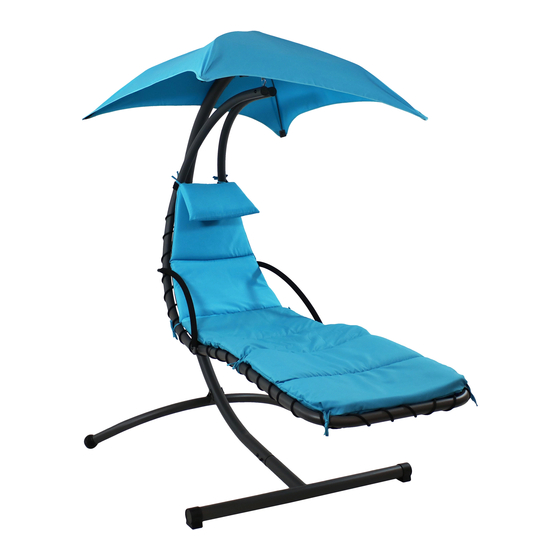

FLOATING CHAISE
LOUNGE CHAIR
02/2020
https://tiny.cc/SunnydazeWarranty
https://tiny.cc/SunnydazeContact
CAUTION
This chair is not designed for use as a swing. Bouncing,
swinging, or any other significant movements while
in the chair may cause serious injury.
This stand must be on a level, stable surface. Make
sure the safety strap is attached correctly, and all
hardware is securely tightened before each use.
Weight Limit: 260 lbs.
Weight Limit: 260 lbs.
Page 1 / 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Floating Chaise and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sunnydaze Decor Floating Chaise

  • Page 1 Order/Customer Reference Number: Thank you for choosing Sunnydaze Decor. We stand behind our brand and the quality of the items we sell. Replacement parts or products will be sent at our discretion within the 1-year warranty period. Proof of purchase, with the date of purchase as well as photos of the merchandise defect, must be provided.
  • Page 2 COMPONENTS Inspect packaging to ensure all parts are accounted for before disposing of packing materials. Lower Support Pole Upper Support Pole Front Base Back Base Left Seat Back Pole Qty. 1 Qty. 1 Qty. 1 Qty. 1 Qty. 1 Right Seat Back Pole Right Seat Pole Left Seat Pole Front Seat Frame...
  • Page 3 ASSEMBLY STEP 1 • Connect Lower Support Pole (A) to Back Base (D) using M8x80 Bolt Set (U). • Slide Front Base (C) through the loop on Safety strap (Z), then into the lower support pole, as shown. • Align the holes of the front base and lower support pole and secure with 2x M6x15 Bolt (Y), as shown.
  • Page 4 STEP 4 • Place Umbrella Canopy (S) onto Umbrella Frame (L). • Slide the ribs into the plastic caps that are sewn into the ends of the umbrella canopy. NOTE: The canopy is intended to fit tightly. Some force may be required but take care not to bend the ribs of the umbrella frame.
  • Page 5 STEP 7 • Unscrew the nut on Quick Link (O) and hang the link on Eye Bolt (AA). • Hang the assembled chair by placing Closed S-Hook (N) in Quick Link (O). • Screw the nut on the quick link closed, ensuring it is tightly fastened.
  • Page 6 STEP 10 • Tie Chair Cushion (R) onto the chair. USE & CARE Under normal use, Sunnydaze outdoor furniture will last for years. It is important to follow basic use & care tips to prolong the life of your floating lounger. •...
