Feider Machines FAS3000-A Instruction Manual

Garden blower vacuum
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

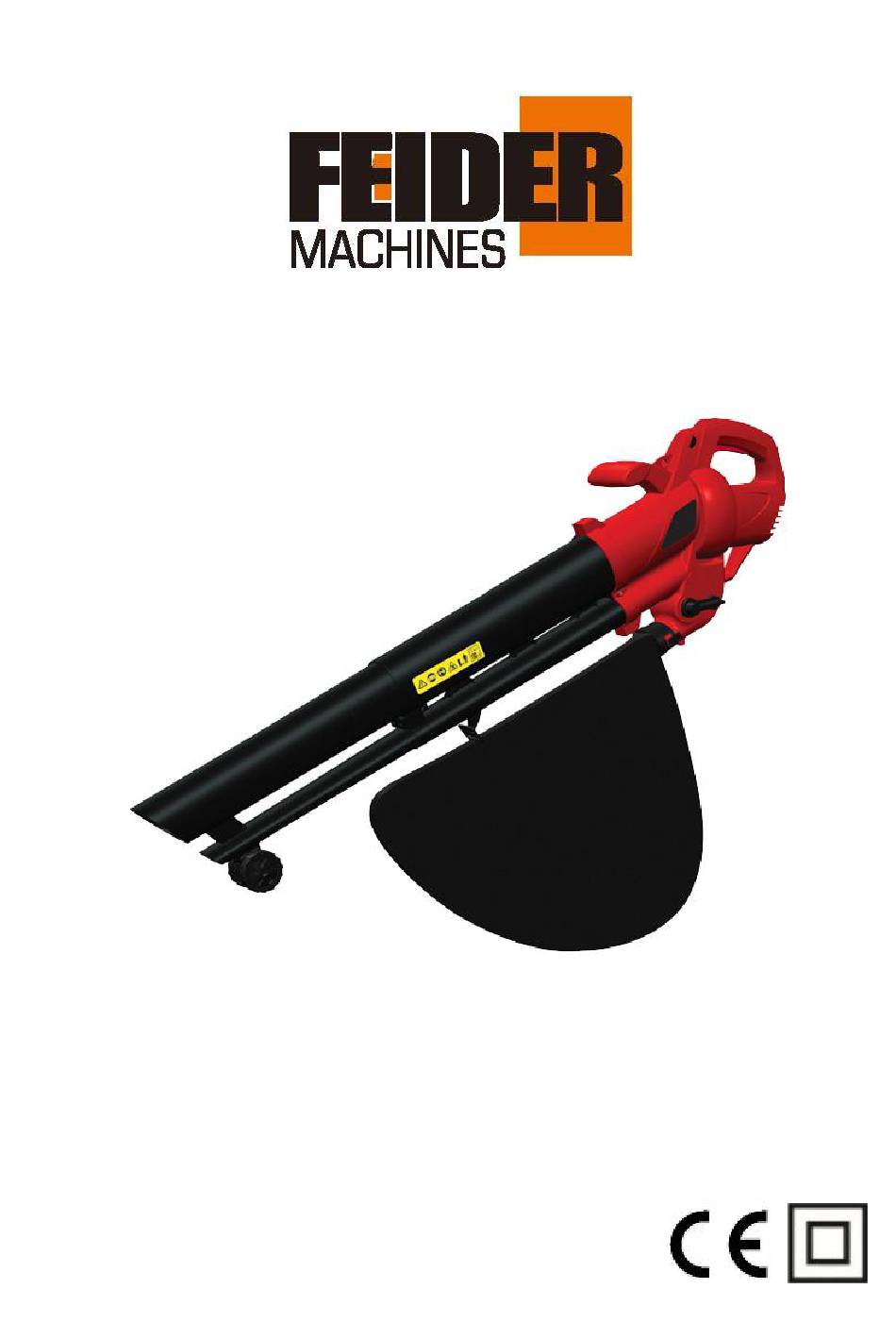

ORIGINAL INSTRUCTIONS
Garden Blower Vacuum
Instruction Manual
FAS3000-A
CAUTION: Read and follow all Safety Rules and Instructions before operating this
equipment
BUILDER SAS
32, rue Aristide Bergès - ZI 31270 Cugnaux – France
Fabrique en PRC
1

Advertisement

Table of Contents
loading

Related Manuals for Feider Machines FAS3000-A

Summary of Contents for Feider Machines FAS3000-A

  • Page 1 ORIGINAL INSTRUCTIONS Garden Blower Vacuum Instruction Manual FAS3000-A CAUTION: Read and follow all Safety Rules and Instructions before operating this equipment BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Fabrique en PRC...

  • Page 2: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS 2. YOUR PRODUCT 3. ASSEMBLY 4. OPERATION 5. MAINTENANCE AND STORAGE 6. DISPOSAL 7. DECLARATION OF CONFORMITY 8. WARRANTY 9. PRODUCT FAILURE 10. WARRANTY EXCLUSIONS...

  • Page 3: Safety Instructions

    1.SAFETY INSTRUCTIONS Safe operating practices hand-held mains-operated electrical garden vacuums, and garden blower/vacuums with or without shredding means and garden blowers Training a) Read the instructions carefully. Be familiar with the controls and the correct use of the machine. b) Never allow children or people unfamiliar with these instructions to use the machine.
  • Page 4 c)Do not wear loose clothing or jewellery that can be drawn into the air inlet. Keep long hair away from the air inlets. d) Operate the machine in a recommended position and only on a firm, level surface. e) Do not operate the machine on a paved or gravel surface where ejected material could cause injury.
  • Page 5 b) Keep your face and body away from the feed intake opening. c)Do not allow hands or any other part of the body or clothing inside the feeding chamber, discharge chute, or near any moving part. d) Keep proper balance and footing at all times. Do not overreach.
  • Page 6 i) If the machine becomes clogged, shut-off the power source and disconnect the machine from supply before cleaning debris. j) Never operate the machine with defective guards or shields, or without safety devices, for example debris collector in place. k)Keep the power source clean of debris and other accumulations to prevent damage to the power source or possible fire.
  • Page 7 before making any inspections, adjustments, etc. Maintain the machine with care and keep it clean. b) Store the machine in a dry place out of the reach of children. c)Always allow the machine to cool before storing. d) When servicing the shredding means be aware that, even though the power source is switched off due to the interlock feature of the guard, the shredding means can still be...
  • Page 8 Additional instructions  This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision instruction concerning use of the appliance by a person responsible for their safety.
  • Page 9  Do not use accessories other than those recommended by the manufacturer; Non- recommended accessories can damage the unit and/or cause injuries.  Do disassemble tool yourself. Disassembly, repair or inspection must be made exclusively by qualified personnel.  Use the tool fully assembled and secure. Before using, check if the protections and safety devices are in place.
  • Page 10  Avoid using the machine in bad weather, especially when there risk thunderstorms and lightning.  In case of accident, immediately stop using the machine. Turn off and unplug it and check the problem. Do not use the machine while the machine is damaged.
  • Page 11  Do not point the tool in front of people; this can lead to accidents and injuries.  Do not put any objects inside the tube and inside the tool.  Before using the product and after any shock, please check it for signs of wear or damage. ...
  • Page 12 disconnected from the supply; damaged cords can lead to contact with live parts.  Keep extension cords away from moving hazardous parts to avoid damages to the cords which can lead to contact with live parts.  When a cable is damaged or entangled, please stop immediately to use the tool.
  • Page 13  Disconnect electrical supply before opening inlet cover or installing pick up tubes. Never operate unit without inlet cover secured or pick-up tubes in place.  Always inspect the area before starting the appliance to remove debris and hard or sharp objects that can be blown or cause damaged during operation ...
  • Page 14 common sense when operating a power tool. Do not operate tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. Residual risks Even if you use this product in compliance with all safety requirements, the potential risks of injury and damage remain.
  • Page 15 the fingers, hands or wrists. Risk increases at low temperatures. e. Inhalation of particles of material blown/vacuumed f. Unattended projections g. Contact with foreign objects h. Contact with the tool in operation i. Hearing loss in the absence of correct hearing protection Explanation of symbol a.
  • Page 16 Wear an eye protection Keep bystanders away Guarantee sound power level Remove plug from the mains immediately if the cable is damaged or cut. Intended use This vacuum blower is intended to be used for the vacuuming and the blowing of leaves, dust, and similar little materials.

  • Page 17: Your Product

    9. Wheel 4. Front handle 10. Attachment for shoulder 5. Blower tube harness 6. Motor housing 11. Speed control roller Technical specifications Model FAS3000-A Rated input power 3000W Rated no-load speed 15000/min Rated Voltage 230-240V~50Hz Blower velocity 250 km/h Maximum blower air output 10.7m...

  • Page 18: Assembly

    3. ASSEMBLY a. Tube assembly Slide the upper tube into the motor housing, then tighten the screws and make sure the tube is firmly fixed with motor housing. Insert the 2 lower tubes (one into upper tube and the smaller below) and push them until they are connected firmly together.

  • Page 19: Operation

    Caution: In the interests of safety the tubes should not be dismantled after they have been assembled Attach the collect bag to the hook on upper tube and the outlet on the bottom of motor housing. 4. OPERATION Before starting the machine, make sure that collect bag is fitted and the shoulder harness is adjusted to a suitable working position.
  • Page 20 c. Speed Control You can adjust the power of the air flow with the control knob. The power goes to 1 to 6 (from the lower to the highest power). Turn the knob to adjust the power of the airflow, according the work performed. When stop to use the machine, put the knob to the position 1.
  • Page 21 - Work in order to gather the debris in one or more lots. Use the vacuum mode to collect the heap. You can also pick up the pile of debris with a broom (or rake) and a shovel. - When the operation is finished, release the ON/OFF switch. - Throw away the debris in a trash bin.

  • Page 22: Maintenance And Storage

    5. MAINTENANCE AND STORAGE WARNING! Do not use products that can damage the device (abrasive, corrosive, alcohols, steam cleaners, abrasive cloths, scrapers, etc.). Do not install the appliance in a dishwasher for cleaning! The unit must be completely switched off, unplugged, and cool before cleaning.

  • Page 23: Declaration Of Conformity

    ZI, 32 rue, Aristide Bergès – 31270 Cugnaux - France Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 States that the designated below machine: Garden Blower Vacuum FAS3000-A Serial number: 20210126810-20210127109 Developed, designed and manufactured in accordance with the requirements of directives:...

  • Page 24: Warranty

    8. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 25: Product Failure

    9. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 26: Warranty Exclusions

    10. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
