- Page 1 ORIGINAL INSTRUCTIONS INSTRUCTIONS MANUAL PETROL SWEEPER FBAE200 / FBAE200ES Warning: Please read this manual carefully before using the equipment! BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC...
- Page 2 HAZARD SYMBOLS AND MEANINGS WARNING! WARNING! Read the instructions before operating the machine. DANGER! Ejected objects. Do not turn the brush towards onlookers or animals. DANGER! Keep people, children and animals away from the work area. DANGER! Always use hearing protectors. Wear ear protection against noise DANGER! Always use eye protectors.
- Page 3 INTRODUCTION Please read this entire manual prior to operating the equipment. It instructs you how to safely and easily set up, operate and maintain your machine. Please be sure that you, and any other persons who will operate the machine, carefully follow the recommended safety practices at all times. Failure to do so could result in personal injury or property damage.
-
Page 4: General Safety Precautions
GENERAL SAFETY PRECAUTIONS WARNING READ MANUAL PRIOR TO INSTALL Improper installation, operation, or maintenance of this equipment could result in serious injury or death. Operators and maintenance personnel should read this manual as well as all manuals related to this equipment and the prime mover thoroughly before beginning installation, operation, or maintenance. - Page 5 GENERAL SAFETY PRECAUTIONS WARNING DO NOT MODIFY MACHINE OR ATTACHMENTS Modifications may weaken the integrity of the attachment and may impair the function, safety, life and performance of the attachment. When making repairs, use only the manufacturer’s genuine parts, following authorized instructions.
-
Page 6: Main Components
sweeping application. Road surface cleaning shall only be operated by specially trained personnel. The user must know how to assemble, handle, operate and maintain this machine. People not trained must have a formation given by a professional. Always transport the tool by the handles. Do not lift the tool and do not use any device to transport it. Always wear protective equipment, which shall include at least eye protection, hearing protection, helmet, trousers, and protective shoes. -
Page 7: Package Contents

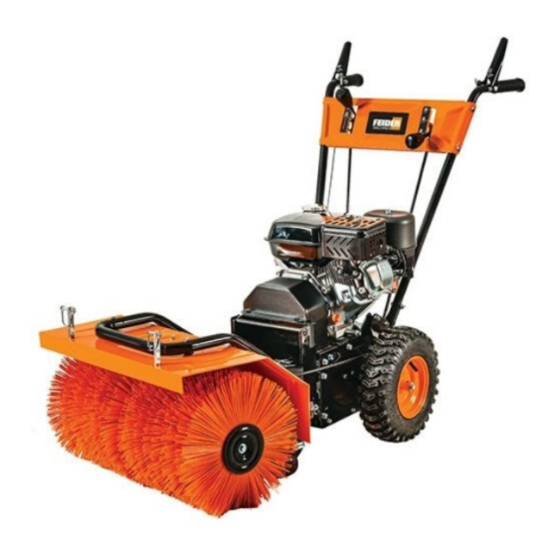

A. Chassis F. Brush Safety Guard B. Engine G. Brush C. Fuel Tank H. Caster Wheels D. Handle I. Wheel E. Dashboard J. Fixing accessories equipment PACKAGE CONTENTS Pos. Description Handle with pre-installed rods and wires Handle fastening screws Handle fastening bolts Spark plug removal key Nuts and bolts... - Page 8 NOTES: 1. Cautiously open the packaging, paying attention not to lose components. 2. Consult the documentation in the box, including these instructions. 3. Remove all the unassembled parts from the box. 4. Remove the machine from the box. Dispose of the box and packaging in compliance with local regulations. ASSEMBLY Please note that during assembly, maybe you’ll need a helper! 1.
- Page 9 2. Handle assembly The handle is delivered with the dashboard already assembled. The machine handle assembly screws, gear control fastening screws and nuts and bolts to secure the brush directional control are delivered in a separate package found in the machine packaging. Install as follows: a) Bring the two tubes at the ends of the handle (fig.
-
Page 10: Engine Operation
b) Insert the articulated joint (fig. 6.A) on the brush directional control in the lever hole (fig. 6.C) to connect it to the drive. c) Secure the nut (fig. 6.B). ENGINE OPERATION NOTICE: THE MOTOR IS DELIVERED WITHOUT OIL AND GASOLINE. Oil Filling: Place the motor in a horizontal position. -
Page 11: Operation
NOTICE: Do not turn off the motor by switching on the choke, as this may result in damage to the motor. OPERATION CAUTION A SWEEPER IS A DEMANDING MACHINE. Only fully trained operators or trainee operators under supervision of a fully trained person should use this machine. - Page 12 While operating sweeper DANGER FALL HAZARD - DO NOT OPERATE NEAR UNGUARDED EDGES. This sweeper is not intended for roof top use. When operating sweeper, adhere to all government rules, local laws and other professional guidelines for your sweeping application. Minimize flying debris - use the slowest rotating speed that will do the job.
- Page 13 The terms swing and angle are used interchangeably. Brush Direction The brush direction is regulated by a lever (fig. 9B) that tilts it in the required direction. Move the lever forward or rear in one of the 3 available positions to tilt the brush. ·...
- Page 14 OPERATION Snow Snow is removed more easily when it is still fresh. Pass back over the already cleared zones to remove snow residue. If possible, clear the snow in the direction of the wind. Check the distance and the direction of the removed ...
- Page 15 Height adjustment of Caster Wheels & Brushes Once the brushes get worn it is necessary to adjust the height of the brushes, i.e. how close they are to the surface to sweep. This adjustment takes place by moving the plastic rings of the brush caster wheels. See as follows: 1.
- Page 17 4. The upper pedal (fig.12 B & fig.13 B) will be released from the connection (fig.12 E). 5. Raise up the engine part to release attachment. To Connect Engine part with Attachments (Sweeper / Snow thrower head) 1. Put the sweeper / snow thrower head on an open area. 2.
-
Page 18: Service & Repair - General
SERVICE & REPAIR - GENERAL Repair or adjust the sweeper in a safe area, away from traffic and other hazards. Before adjusting or servicing remove spark plug wire from spark plug. STORAGE NOTICE: Do not store the sweeper with weight on the brush. Weight will deform the bristles, destroying the sweeping ... -
Page 19: Maintenance
MAINTENANCE MAINTENANCE SCHEDULE BEFORE AFTER PROCEDURES 25 HOURS EACH USE HOURS EACH USE Hardware - Inspect & tighten Engine & Air Filter - check & clean if necessary Oil, engine - check level Wash Unit - Remove Grease & Debris Maintenance If you need to change the belts, please contact the distributor or local agent. -
Page 20: Technical Data
TECHNICAL DATA FBAE200 FBAE200ES Measured sound power level: 101.56 dB(A) K= Measured sound power level: 101.56 dB(A) K= 2,5 dB(A) 2,5 dB(A) Measured sound pressure level: 87,8 dB(A) K= Measured sound pressure level: 87,8 dB(A) K= 2,5 dB(A) 2,5 dB(A) - Page 21 32 rue Aristide Berges -Z1 31270 Cugnaux - France Tel: +33 (0) 5.34.508.508 Fax: +33 (0) 5.34.508.509 Declare that the machine designated below PETROL SWEEPER FBAE200 / FBAE200ES 20210905745-20210905762 Serial number: 20210905763-20210905780 Conforms to the provisions of the Machinery Directive 2006/42/EC and the national regulations transposing it;...
- Page 22 WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identifed as defective by the designated distributor.
- Page 23 PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.
- Page 24 WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
