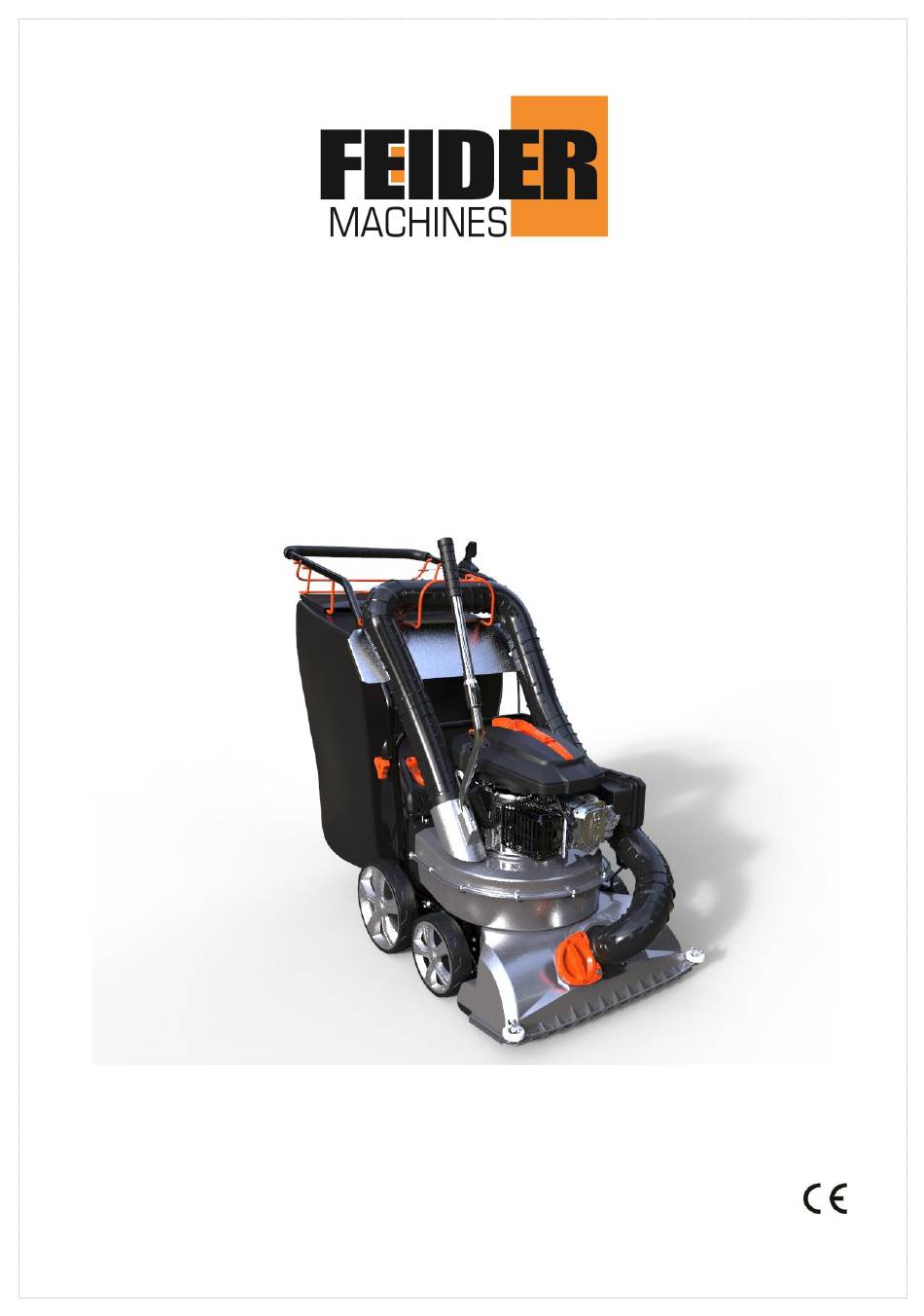

- Page 1 ORIGINAL INSTRUCTIONS PETROL WALK BEHIND VACCUM BLOWER & SHREDDER FAST175T-1 / FAST175P-1 USER MANUAL WARNING: PLEASE READ THE MANUAL CAREFULLY BEFORE USING THE TOOL. BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France MADE IN PRC...
-
Page 2: Included Accessories
●Note: Because the manual of this product is not divided into high and low configuration independent versions, The internal description is a full-featured version of the machine. So the description of the function that is not available on the machine you purchased will appear in it. For this we use the "△"... -
Page 3: Table Of Contents
Table of Contents Included accessories....................................2 Table of Contents....................................3 Chapter 1 Safety and specification introduction..........................4 Chapter 2 Assembly instructions................................8 Chapter 3 Product specification................................13 Chapter 4 Instructions for use................................14 Chapter 5 Lubrication instructions..............................21 Chapter 6 Engine description................................21 Chapter 7 Machine cleaning and storage............................21 Chapter 8 Machine maintenance instructions............................22 Chapter 9 Maintenance planning cycle...............................23 Chapter 10 Troubleshooting and solutions............................24... -
Page 4: Chapter 1 Safety And Specification Introduction
WARNING: If any of the labels are damaged or missing, replace them before operating the equipment. Chapter 1: Safety and specification introduction Intended use This blower is meant to be used for blowing leaves, dust or garden debris into a desired direction. It must not to be used for blowing water, chemical products, flammable material, metal or wood and other dangerous objects. - Page 5 c) Before checking, cleaning or working on the machine. Do not tilt the machine while the power source is running. Operate the machine at the lowest possible engine speed to do the job. Like this, vibration and noise levels as well as the tool’s wear can be kept to a minimum.
- Page 6 Maintenance and storage When the machine is stopped for servicing, inspection, or storage, or to change an accessory, shut off the power source and make sure that all moving parts have come to a complete stop. Allow the machine to cool before making any inspections, adjustments, etc. Maintain the machine with care and keep it clean.
- Page 7 4）Parameter mark Fig.5.1 Self-propelled parameter marker Fig.5.2 Hand push parameter marker ——————————————————————————————————————————————————————————————— 5）LOGO mark Fig.6...
-
Page 8: Chapter 2 Assembly Instructions
Chapter 2: Assembly instructions …… ●Your machine cannot be used immediately after it has been removed from the box. Please understand the name and function of each part on the second page of this manual, and then assemble it with the installation steps described in the following figure. Note: The shape of the part contained in the assembly diagram is not inconsistent with the actual part shape. - Page 9 — Assembly 3）Collection bag fixing bracket assembly Insert the left and right ends of the collection bag fixing bracket into the corresponding four holes on the upper handrail bar assembly. Assembly guide Fig. Assembly completion diagram Fig. — Assembly step 4）Hose bracket assembly Insert the left and right ends of the hose bracket into the corresponding two holes on the upper grab bar assembly.
- Page 10 baffle hanging board Fig.10-4 Assembly left hanging board Fig.10-5 Press the baffle and open the rear cover Fig.10-6 Insert back cover bracket Fig.10-7 Insert in place Fig.10-8 Installation completion diagram...
- Page 11 — Assembly step 6） Roller brush assembly Lift the suction port, pull the quick release trigger and open the quick release cover. △ Align the square end of the roller brush into the square shaft, insert the bearing end into the quick-release bracket bearing mounting position, and pull the quick release trigger and fasten the upper cover.
- Page 12 Hose tail port Fig.12-3 Screw the interface Fig.12-4 Complete the installation diagram — Assembly step 8）Placement of the suction port baffle Barbs the baffle on the hose fixing bracket。 △ ●Note: This is where the baffle is placed when the hose is not being used for suction. Fig.13-1 Hanging baffle Fig.13-2...
-
Page 13: Chapter 3 Product Specification
Chapter 3: Product specification Host parameter Accessory parameters ● ● Machine model FAST175T-1 FAST175P-1 engine DY1P70FA DY1P70FA Engine power 4 kW 4 kW Engine emissions 173 cm³ 173 cm³ Fuel capacity 1.5 L 1.5 L Hose length 2500 mm Oil capacity 0.6 L... -
Page 14: Chapter 4 Instructions For Use
Chapter 4: Instructions for use Warning: Before reading the instructions for use, make sure you understand the above and keep it in mind. 1） Start the machine ●Before starting, please check if the accessories you have assembled are completely fixed. 1. - Page 15 2） Adjust the height of the suction inlet 1. Pull the height adjustment handle out of the gear position slot and provide the height adjustment range according to the parameter table of this manual (page 11) and select one gear position adjustment height from the 5 gear positions according to your use area or situation. (See Fig 19-1, 2, Lowest position Highest position Height up...
- Page 16 Roller brush rotation Swept into the trash direction direction Fig.21-4 Working diagram 4）-2、The role of Roller brush disk and the precautions for use 1. Roller brush disc is divided into Cleaning disk and Comb brush。（See Fig 22-1、2） Fig.22-1 Sweepers Fig.22-2 Comb brush 2.
- Page 17 5. Reasonable work area ●Ground and lawn covered by fallen leaves. (See Fig 27-1, 2) Fig.27-1 Fallen leaves on the lawn Fig.27-2 Fallen leaves on the lawn ●Ground and lawn with more leaves(Please see the picture 28-1, 2） Fig.28-1 Fallen leaves on the road surface Fig.28-2 Scattered garbage on the road 5）...
- Page 18 3. Start the machine，Point the hose mouth at the trash。（see fig 31） ●Note: When loading and unloading the hose, please turn off the engine first. ●Note: The suction port baffle is only used when the auxiliary hose is vacuumed. Fig.31 Using a hose 6）-2.
- Page 19 ●Note: When using this function, please turn off the machine. ● Note: When fully closed, check that the rear panel bezel securely locks the rear cover. ●Note: When fully closed, please check if the switch rocker arm has been closed by the rear cover ●Note: It is strictly forbidden to remove the auxiliary hose when the machine is working.
- Page 20 7）Instructions for using the collection bag Please assemble the collection bag according to the steps in the assembly instructions "Assembly Step 4" Collection Bag Assembly" (page 7-8). 2. During the use of the machine, the dust inhaled by the machine may cause the venting holes of the collecting bag to become clogged or cause the air to return when the collecting bag is full.
-
Page 21: Chapter 5 Lubrication Instructions
Chapter 5: Lubrication instructions Note: Stop the engine before maintenance. 1. The ball bearings, gears and shafts on each wheel must be lubricated once with oil. ●Note: When moving, when the gears and bearings are abnormal, you should stop and prepare to add grease. 2. -
Page 22: Chapter 8 Machine Maintenance Instructions
2）storage ●The following steps should be taken to prepare the machine for storage. 1. Empty the fuel tank after use in the last quarter. a）Empty the fuel tank with a suction pump. Be careful! Do not discharge gasoline in a closed room or near an open flame. do not smoke! This can cause an explosion or fire. b）Start the engine and let it run until it runs out of all remaining gasoline. -
Page 23: Chapter 9 Maintenance Planning Cycle
2. Air filter maintenance vent Check the air filter for dirty before and after each use. If it is too dirty, it will cause the engine to start hard, black smoke, and no power. If the filter element is paper, remove the filter element and remove the dust attached to it;... -
Page 24: Chapter 10 Troubleshooting And Solutions
Chapter 10: Troubleshooting and solutions problem possible reason Corrective Action Priority Engine cannot start Throttle wrench is not in the Move the throttle choke to the correct position correct position There is no fuel in the fuel tank Add the same amount of gasoline according to the fuel volume provided in the parameter table of this manual (page 11). -
Page 25: Chapter 11 Environmental Protection
Collection bag full Clean up the garbage in the collection bag Self-propelled is very Self-propelled failure Contact service agent repair difficult Clutch belt damage Replacement belt Clutch belt is not on the pulley Reinstall the belt Clutch belt wear Adjust the tension √√√... -
Page 26: Chapter 12 Declaration Of Conformity
Chapter 12: Declaration of conformity EC- Declaration of Conformity BUILDER SAS 32 Rue Aristide Bergès, 31270 CUGNAUX - FRANCE declare that the following Appliance complies with the appropriate basic safety and health requirements of the EC Directives (see item 4) based on its design and type, as brought into circulation by us. -
Page 27: Chapter 13 Warranty
Chapter 13: WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identifed as defective by the designated distributor. -
Page 28: Chapter 14 Product Failure
Chapter 14: PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 29: Chapter 15 Warranty Exclusions
Chapter 15: WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
