Luminext Zhaga Wirepas OLC400 Installation Instruction

Version : 1.0
Date: 15-09-2021
INSTALLATION INSTRUCTION: Luminext Outdoor Lamp Controller OLC400 Zhaga Wirepas

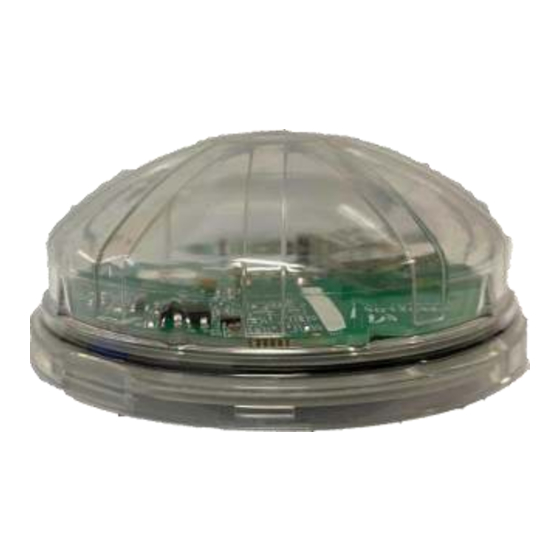

The Luminext OLC400 Zhaga Wirepas is a product in the Luminext program for dynamic dimmable street lighting with
remote management. The OLC400 Zhaga Wirepas is suitable for fixtures with a Zhaga connector and D4i driver. The
OLC400 Zhaga Wirepas controllers automatically forms a wireless-sensor-and-control network that is self-organizing
and self-synchronizing in combination with other OLC400's and a RF4 gateway.

Safety

•
Installation and maintenance should be performed by qualified personnel only.
•
Adhere strictly to this installation instruction to avoid danger and damage to the OLC300S.
•
Do not use the OLC400 Zhaga Wirepas if it is damaged.
•
The electrical installation must be in conformance with the national legislation and relevant standards.
•
The mains connection of the OLC300S must be provided with a 2A fuse and a possibility to disconnect the
mains.
•
The OLC300S must be mounted in an IP65 classified housing.

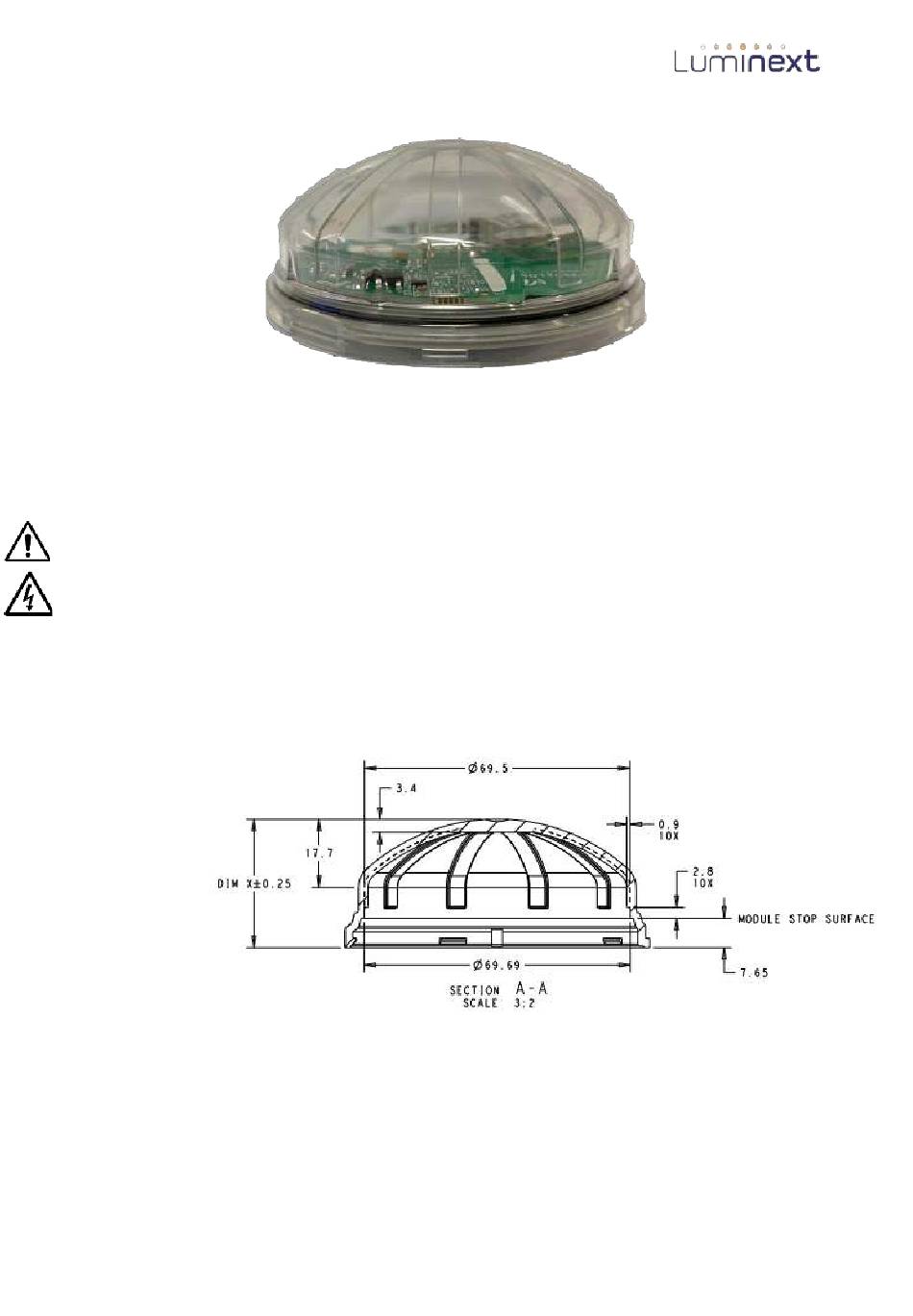

Dimensions of housing

Note: all measurements are in mm
