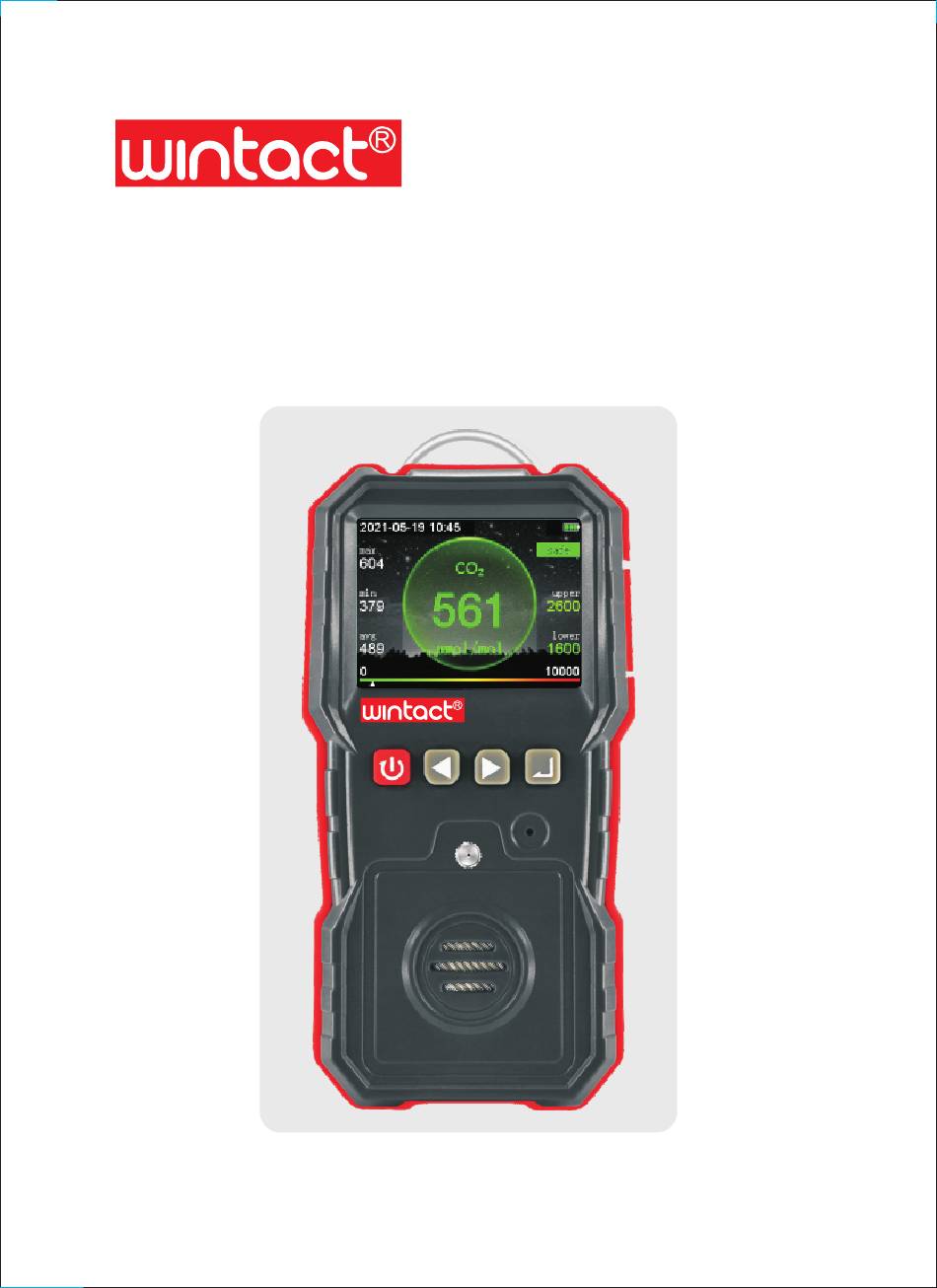

- Page 1 MODEL: WT8807 Carbon Dioxide Monitor Instruction Manual WT8807...
-
Page 2: Table Of Contents
CONTENTS Ⅰ. Introduction ---------------------------------------- 01 Ⅱ. Safety instruction --------------------------------- 01 Ⅲ. International safety knowledge ---------------- 02 Ⅳ. Explosion protection precautions ------------- 02 Ⅴ. Features -------------------------------------------- 02 Ⅵ. Name of parts -------------------------------------- 03 Ⅶ. Operation manual --------------------------------- 04 1. Main Menu Interface ---------------------------- 04 2. -
Page 3: Ⅰ. Introduction
Ⅰ. Introduction Carbon Dioxide Monitor adopts high-quality gas sensors,which displays safety and reliability with accurate measurement and stable performance. It has excellent sensitivity and repeatability, easy to use and maintain, and meets the requirements by safety monitoring in industrial site for high reliability of the equipment. -
Page 4: Ⅲ. International Safety Knowledge
Ⅲ. International safety knowledge This operation must refer to instruction.Please be careful. Complying with eu standard. Explosion-proof sign: Ex ib IIB T3 Gb. Ⅳ. Explosion protection precautions Warning! 1. Charging in the off state is unable to turn on the gas detection alarm for detection. -
Page 5: Ⅵ. Name Of Parts

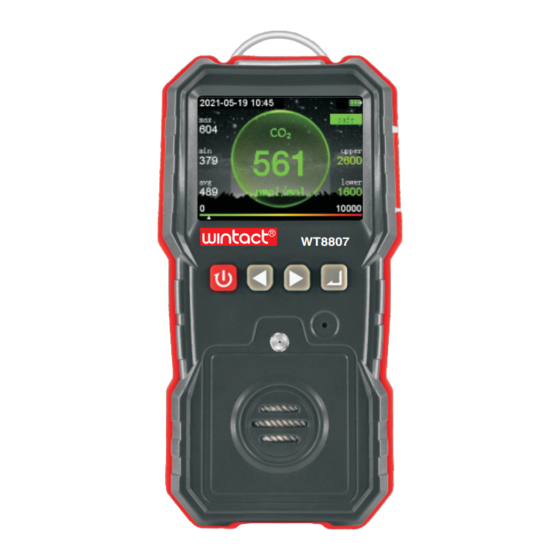

Ⅵ. Name of parts Alligator clips on the back Transparent window for alarm indicator LCD display USB charging interface Power/Back Right button button Left button Enter button Buzzer alarm hole Gas sensing hole Power/Back button : long press on/off button, short press to return. -
Page 6: Ⅶ. Operation Manual
Ⅶ. Operation manual 1.Main Menu Interface (Figure 1) (1) Long press Power/Back button for about 2 seconds. After powering on, the instrument enters into the countdown interface (for the sensor takes about 20 seconds to stabilize).After the countdown is over, the main menu screen will appear (Figure 1). -
Page 7: Real-Time Measurement Interface
2.Real-time Measurement Interface(Figure 2) (1) This interface only displays Real-time measurement values; the left side shows the maximum,minimum and average value,where the average value which is the value measured in the last 4 minutes; the right side shows the high and low alarm values, and the middle shows real-time values. (2) When checking concentration, if the concentration value is greater than the low alarm value, the instrument will trigger low alarm state. - Page 8 Press " " button to return to main menu,and press " " button to choose previous or next page.After selecting page number, press " " button to choose one record and enter into record selection interface, as shown in Figure 4. (2) In record selection interface shown in Figure 4, press "...
- Page 9 (5) Figure 7 shows deletion interface. After selecting "Yes" and confirm,the recorded data will be deleted. (6) Figure 8 shows selected deletion interface. Pressing " " button and " " button to input the serial number to be deleted, select "OK" and press "...
-
Page 10: Alarm Setting Interface
4.Alarm Setting Interface(Figure 9) (1) The alarm settings for each sensor can be set separately under this interface. (2) There are two alarm modes: light and sound, which can be respectively set to be on or off. When the realtime measured value is greater than the set high alarm value or low alarm value , the alarm which is set to be on will be triggered. -
Page 11: Ⅷ. Specifications
Ⅷ. Specifications Gas detection Measuring range 0~10000μmol/mol[1] Resolution Accuracy ±40μmol/mol±3%[2][3] Response time (90%) About 2 minutes LCD displays real-time data and system state, Indication mode LED and sound indication alarm Temperature: -10~55℃ Storage Conditions Humidity:<85%RH non-condensing Temperature: 0~50℃ Operation Conditions Humidity:<85%RH non-condensing Working voltage DC 3.7V (Lithium battery capacity 1800mAh) -
Page 12: Ⅸ. Charging Function Description
Ⅸ. Charging function description When the power is insufficient or the voltage cannot be turned on due to undervoltage, please charge in time and charge it.During the charging process, the alarm light will flash and the meter will no longer detect the gas concentration and display it dynamically.Indicates the number of battery packs. -
Page 13: Ⅺ. Product Accessories List
Ⅺ. Product accessories list Thanks for your purchasing our product, please check the following components after you unpacking the box. If there is any missing or wrong page manual,please contact the local dealer. Quantity Accessory name Carbon Dioxide Monitor(Contain Alligator clips) 1PCS USB charging cable 1PCS... - Page 14 Version：WT880 -EN-00...
