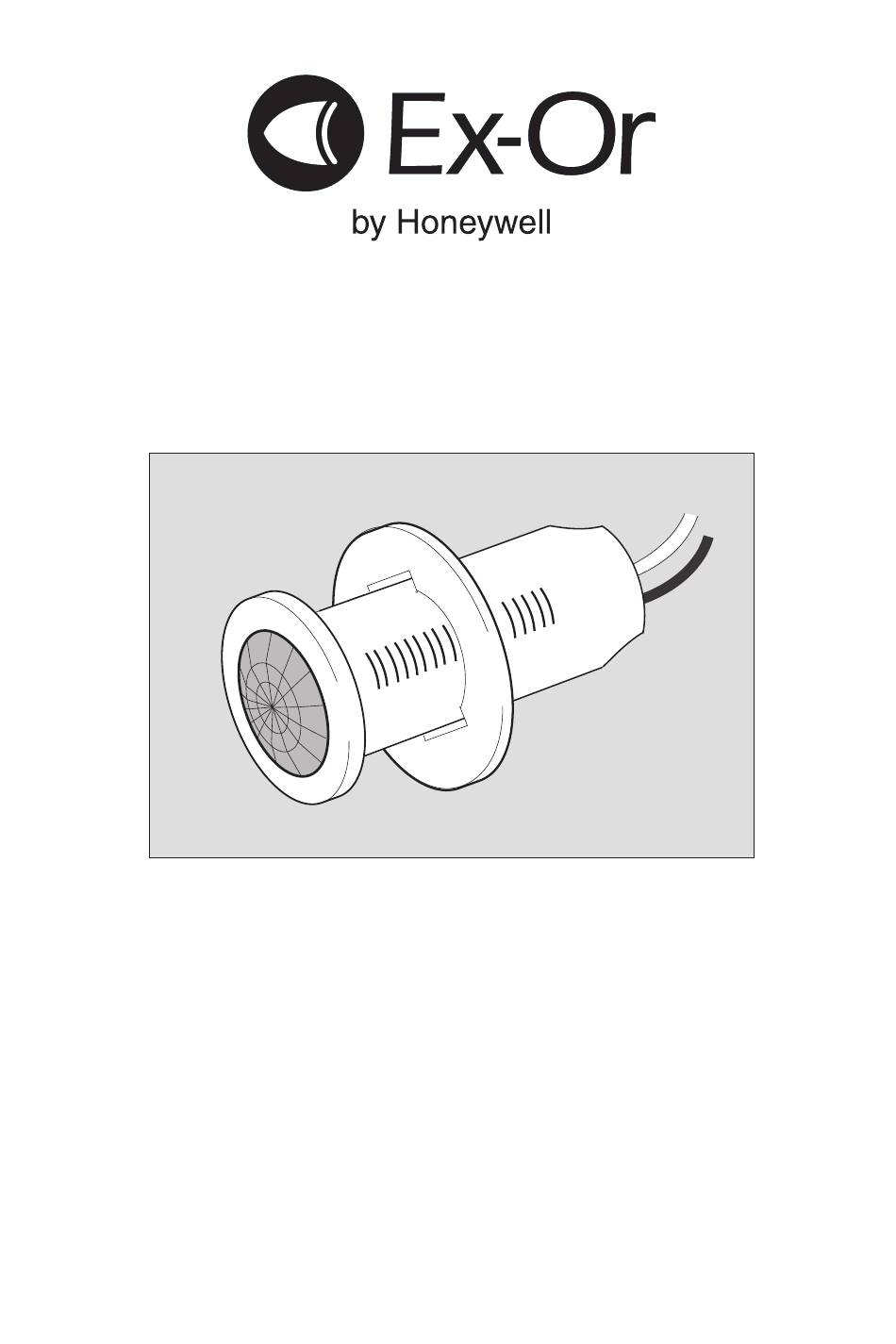

- Page 1 MLS2000PF MLS Digital Detector with photocell Installation and Commissioning Instructions Note: QuickSet Pro required for commissioning...
- Page 2 MLS Digital Detectors are the high-performance, communicating, presence detectors at the heart of the advanced lighting management system known as The Ex-Or MLS Digital. This detector is equipped with a passive photocell designed to hold lights off when areas become occupied if the daylight contribution is high and to switch lights on in occupied areas as the daylight contribution falls.
- Page 3 Setting the Photocell The light level should be set at a time when the ambient light level is equal to the level at which it would be desirable for the photocell to become active. This can be achieved in the following ways: 1.
- Page 4 Electrical Connections MLS2000PF Brown - Live Blue - Neutral Green/Yellow - Earth (no internal connection) Black - Live out Violet + ve MLS Bus Grey - ve 115mm 65mm Technical Data MLS CABLE: 1.5mm unscreened twisted-pair : see Application No AN4001 MAXIMUM RECOMMENDED MOUNTING HEIGHT: 3.0m...
