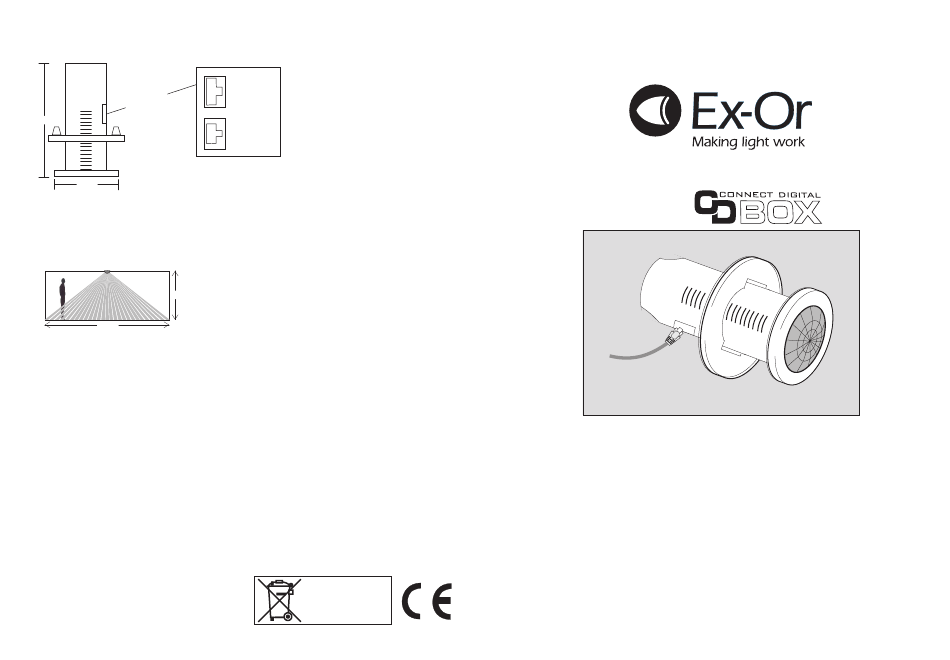

Electrical Connections
Patch Lead
Connection Socket
115mm
65mm
Technical Data
MAXIMUM RECOMMENDED MOUNTING HEIGHT: 3.0m
RANGE: Cone-shaped detection pattern, diameter (at floor level) = 2.4 x mounting height
2.5m
6.0m
OPERATING VOLTAGE: SELV
OUTPUT: Digital DSI - can also be programmed for DALI.
Also switches fixed-output ballasts via the CD Box.
PHOTOCELL: Regulating (operational only in Scene 1)
OFF DELAY: 5-60 minutes
DEPTH REQUIRED BEHIND CEILING: 125mm
WEIGHT: 100g approx
COLOUR: White
MATERIAL: Flame retardant PC/ABS
IP RATING: 4X
Ex-Or
Haydock Lane, Haydock, Merseyside WA11 9UJ
Tel: +44 (0)1942 719229
Fax: +44 (0)1942 272767
Email: technicalsales.ex-or@honeywell.com
www.ex-or.com
Connect patch
lead here
Do not use
lower socket
At the end of their useful life
the packaging and product
should be disposed of via a
suitable recycling centre.
Do not dispose of with normal
household waste.
Do not burn.
W4093G

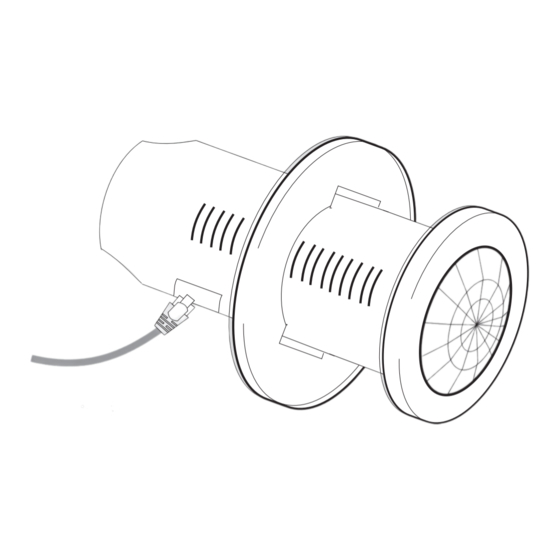

MLS CONNECT Digital Detector
for use with
CDW10U5
MLS2000CDR
Installation and Commissioning
Instructions
Note: HP2000 required for commissioning
Advertisement
Table of Contents
Related Manuals for Ex-Or MLS CONNECT MLS2000CDR
Summary of Contents for Ex-Or MLS CONNECT MLS2000CDR
- Page 1 At the end of their useful life the packaging and product Tel: +44 (0)1942 719229 should be disposed of via a suitable recycling centre. Fax: +44 (0)1942 272767 Do not dispose of with normal household waste. Email: technicalsales.ex-or@honeywell.com Do not burn. www.ex-or.com W4093G...
- Page 2 The patch leads are available in 2m, 3m, 5m and 10m lengths. These must not be joined to make longer links and only leads supplied by Ex-Or should be used. When installing patch leads, care must be taken to protect the iv) Press UPLOAD at any time to transfer all current settings from the handset to the product.
