Ex-Or MS1001F Installation And Commissioning Instructions

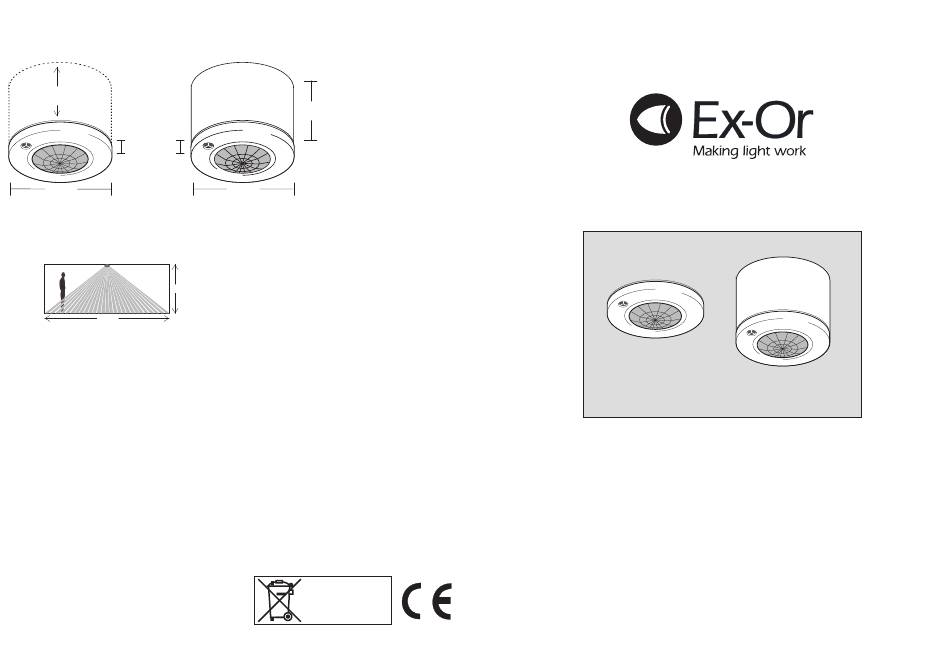

Dimensions

Flush Version
62mm
deep behind ceiling
Flange:
10mm deep
100mm

Technical Data

MAXIMUM RECOMMENDED MOUNTING HEIGHT: 3 metres
RANGE: Cone-shaped detection pattern, diameter (at floor level) = 2.4 x mounting height
2.5m
6.0m
OPERATING VOLTAGE: 230V 50Hz (UK & Europe)
RECOMMENDED CIRCUIT PROTECTION: 10 Amps
MAXIMUM LOAD: 6 Amps resistive or fluorescent
2
TERMINAL CAPACITY: 2 x 2.5mm
Off Delay: 20 minutes (fixed) and a 10-second Walk Test Mode
DEPTH REQUIRED BEHIND CEILING (for flush version): 62mm from front flange plus an
allowance for the minimum bend radius of the cables
WEIGHT: 200g approx
COLOUR: White
MATERIAL: Flame retardant PC/ABS
IP RATING: 4X
Ex-Or
Haydock Lane, Haydock, Merseyside WA11 9UJ
Tel: +44 (0)1942 719229
Fax: +44 (0)1942 272767
Email: technicalsales.ex-or@honeywell.com
www.ex-or.com
Surface Version
62mm
100mm
At the end of their useful life
the packaging and product
should be disposed of via a
suitable recycling centre.
Do not dispose of with normal
household waste.
Do not burn.
W4390A
MS1001F / MS1001SM
Bronze Series LightSpot
MS1001F
MS1001SM
Installation and Commissioning
Instructions
Note: HP2000 (or HP10) required for commissioning
