Description

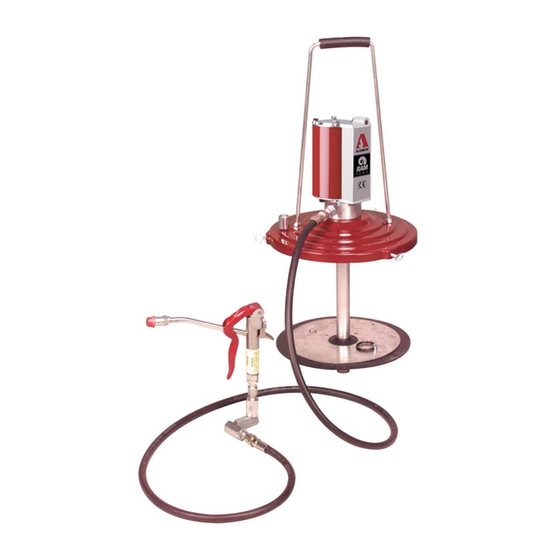

The major components of the high-pressure
portable pump assembly in the 9911 model series
consist of a(n):
• air-operated motor
• double-acting reciprocating pump tube
• control valve assembly, z-swivel, and delivery
hose
• cover and handle assembly
• follower plate
• two-wheel hand truck (Model 9911-Z1 only)
Pump Assembly
The high-pressure (50:1 ratio) pump included
with the assembly is designed to deliver a range of
greases [up to NLGI # 3] and operate directly from
their original 35-pound container.
Models 9911-H1 and 9911-Z1
Model 9911-Z1 includes a two-wheel hand truck
to aid transport. See Figure 1.
Specifications
IMPORTANT: For detailed informa-
tion on the pump tube (including
specifications and performance data)
refer to SER 9911-1/9950-1.
For information on the motor, please
refer to SER 339413.
This document contains confidential information that is the property of Alemite Corporation
670827
and is not to be copied, used, or disclosed to others without express written permission.
Service Guide
High-Pressure Portable Pump
Alemite Corporation
167 Roweland Drive, Johnson City, Tennessee 37601
www.alemite.com
©
Copyright
2004 by Alemite Corporation
Pump
Two-Wheel
Model
Hand Truck
lbs
9911-H1
Not Included
21
9911-Z1
Included
34
Figure 1 High-Pressure Portable Pump
Models 9911-H1 and 9911-Z1 - Model 9911-Z1 Shown
9911-H1
9911-Z1
Model
Width x Height
Weight
(including container)
kg
Inches
9.5
12 x 29.5
30.5 x 75
15.5
14-1/2 x 38
36.8 x 96.5
SER 9911-H1
Revision (5-04)
Cm
Advertisement
Table of Contents
Related Manuals for Alemite 9911-H1
Summary of Contents for Alemite 9911-H1
- Page 1 167 Roweland Drive, Johnson City, Tennessee 37601 www.alemite.com © Copyright 2004 by Alemite Corporation SER 9911-H1 This document contains confidential information that is the property of Alemite Corporation 670827 Revision (5-04) and is not to be copied, used, or disclosed to others without express written permission.
- Page 2 SER 9911-H1 High-Pressure Portable Pump Figure 2 High-Pressure Portable Pump Models 9911-H1 and 9911-Z1 - Exploded View Revision (5-04) Alemite Corporation...
- Page 3 High-Pressure Portable Pump SER 9911-H1 Item Numeric Order Part No. Description Notes Part # (Item #) 9911-1 Pump Assembly, High-Pressure See SER 9911-1/9950-1 6320-3 (13) 44734 Adapter, 1/2 " -27 x 3/8 " NPTF (m) 9911-1 317875-7 Hose Assembly, Material...
- Page 4 SER 9911-H1 High-Pressure Portable Pump Assembly Cover Assembly and Follower 3. Install Grip (4) onto Handle (5). NOTE: Refer to Figure 2 for component 4. Screw Nut (6) onto each end of the Handle. identification on all assembly procedures. 5. Install the ends of the Handle into Cover (8).
