Jacuzzi DELFINO Addendum For Installation Instructions

BATH
WHIRLPOOL
Important: If you are installing the convenient drain/overflow device (C945000) in the Delfino
intending to use it as a drain and fill bath tub, please read this installation instruction carefully before
beginning rough-in. Also review page 4 of the DELFINO OWNER'S MANUAL.

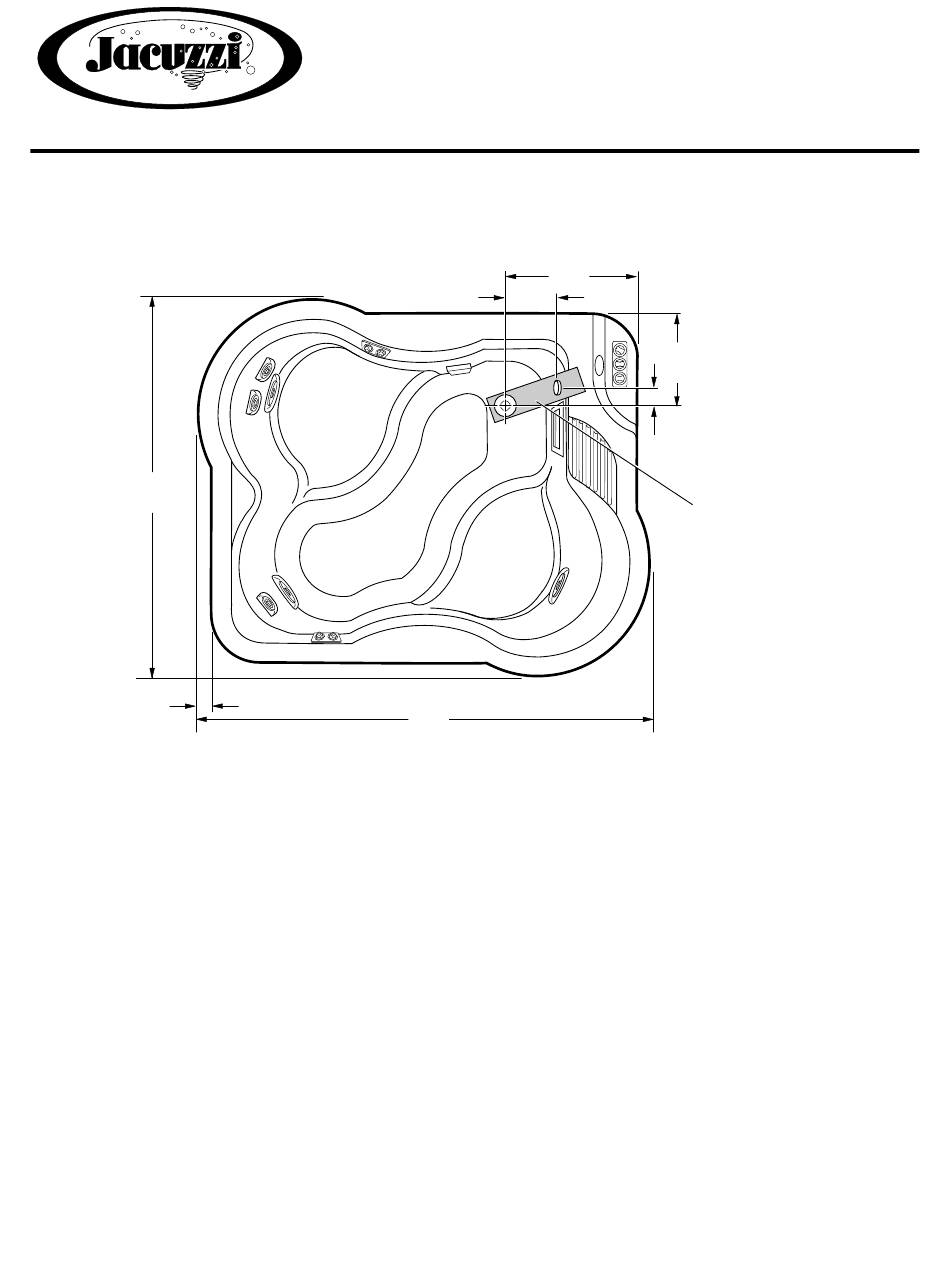

ROUGHING-IN REFERENCE
60" *
2"
Framing and Support
The drain/overflow for the Delfino extends below the
bottom of the unit. Note that this requires a cut-out in the
floor.
The base attached to the bottom of the spa must be
supported along its entire bottom surface. To ensure
proper drainage of the spa, it must be level. If the surface
of the spa location is not level, we recommend that a bed
of mortar or plaster be applied underneath the base at the
time of final setting in an amount sufficient only to level the
NOTE: Use the full-scale corrugated paper template printed inside the Delfino packaging to define the
limits of the hole required for a "sunken" installation.
R
INSTALLATION INSTRUCTIONS
72" *
ADDENDUM
TO THE DELFINO
22"
10-1/4"
* Add 1/4" to this dimension before roughing in.
spa and not to raise it. Level the spa along the top edge of
the rim after the setting bed is applied. Allow plaster to set
completely before applying weight inside or on top of the
spa.
The rim is not designed to support weight. If finish
material is to overlap or contact the spa, the added weight
must be fully self-supporting.
The floor structure beneath the Delfino must be able to
support a total weight of 1965 lbs. (spa, water, and people).
™
™
15-3/4"
4-3/8"
MAKE 18" X 5" CUT-OUT
IN FLOOR
and are
