Summary of Contents for SOUNDIMPRESS HY502-2CH
- Page 1 USER MANUAL English HY502-2CH STEREO SoundImpress – because the best is just about good enough.

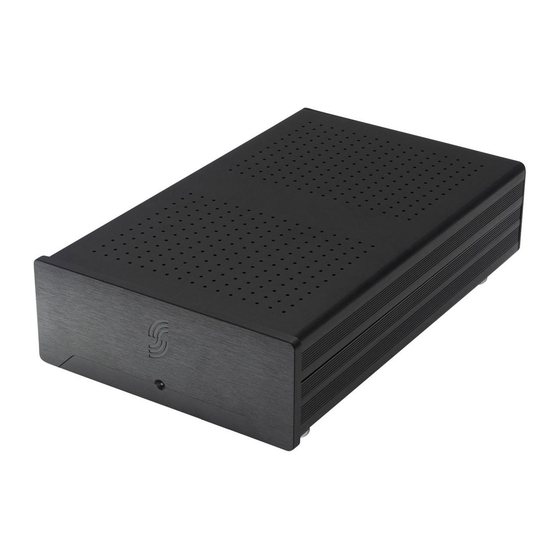

- Page 2 I N T R O D U C I N G HY502-2CH SoundImpress HY502-2CH Stereo 500WPC | Ncore® | Powered by Hypex This SoundImpress amplifier is a self- • Ncore® technology contained high-end class-D stereo • Impressive performance despite load ...
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION SAFETY INSTRUCTIONS WARRANTY TERMS DISPLAY OF CONTROL FUNCTIONS GET STARTED SPECIFICATIONS... - Page 4 SoundImpress HY502 Stereo Amplifier 500WPC | Ncore® | Powered by Hypex Small and powerfull The HY502-2CH is a compact, high performance, This amplifier can deliver all its power from as two channel and no-nonsense class-D power low as 2 ohm impedance combined with low amplifier.
-
Page 5: Safety Instructions
SAFETY INSTRUCTIONS SAVE THESE SAFETY REQUIREMENTS FOR FUTURE REFERENCE. HEED ALL WARNINGS AND SAFETY REQUIREMENTS MARKED IN THIS MANUAL AND ON THE AMPLIFIER. OBJECTS AND LIQUIDS - Never push objects C LEANING Unplug this product from the of any kind into this product as they may touch electrical outlet before cleaning. -
Page 6: Warranty Terms
WARRANTY TERMS LIMITED WARRANTY - Sound Imports warrants this device for a period of five years after the original date of purchase against defects due to faulty workmanship or materials arising from Normal Use of the device. The warranty covers working parts that affect the function of the device. It does NOT cover cosmetic deterioration caused by fair wear and tear, or damage caused by accident, misuse or neglect. -
Page 7: Display Of Control Functions
DISPLAY OF CONTROL FUNCTIONS Right channel output (+) Left channel output (-) Right channel output (-) On / off switch Right balanced input Fuse tray " Left channel output (+) Power input ' Left balanced input Attention: Risk of electric shock. "... - Page 8 DISPLAY OF CONTROL FUNCTIONS Front panel with engraved logo Dimmable LED indicator Bottom view Switch for LED indicator ' See the next page for an explanation of the LED switch. H Y 5 0 2 - 2 C H | P a g e 8...
- Page 9 DISPLAY OF CONTROL FUNCTIONS 0 --- LED OFF 1 --- Normal brightness 2 --- Max brightness H Y 5 0 2 - 2 C H | P a g e 9...
-
Page 10: Get Started
CONNECTION - The HY502-2CH has two sets of speaker connections which are identical in function (parallel connection). Connect the Right speaker terminals marked “R +” and “R-” to the corresponding “+” and “-“ terminals of your designated right speaker. -
Page 11: Specifications
SPECIFICATIONS Rated power output (RMS) 2 x 500 watts at 4 ohms 2 x 350 watts at 8 ohms Minimum load 4 ohm Signal-to-noise ratio (SNR) 124 dB Distortion 0.0018% (20-20,000 Hz at 0.5 x rated power output) Efficiency Frequency response 10 - 48,000 Hz Circuit Topology Ncore®... - Page 12 Do you wish to read this manual in a different language? Or prefer a digitial version? Scan the QR code! SoundImports Peizerweg 97A 9727AJ Groningen Nederland Tel: +3185-0711860 E-mail: info@soundimports.nl Btw-nummer: NL861325254B01 KvK-nummer: 78268753...
