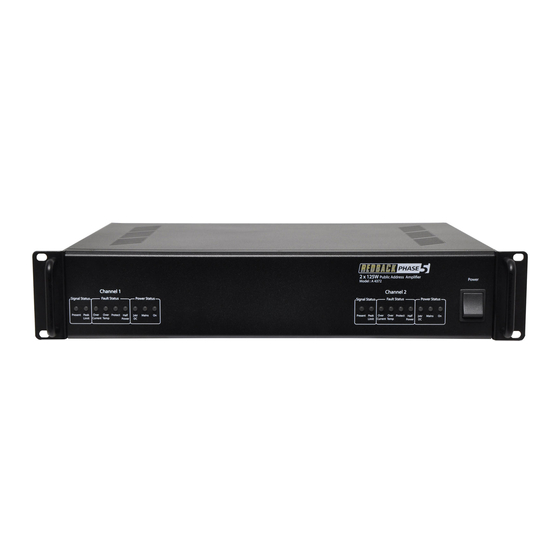

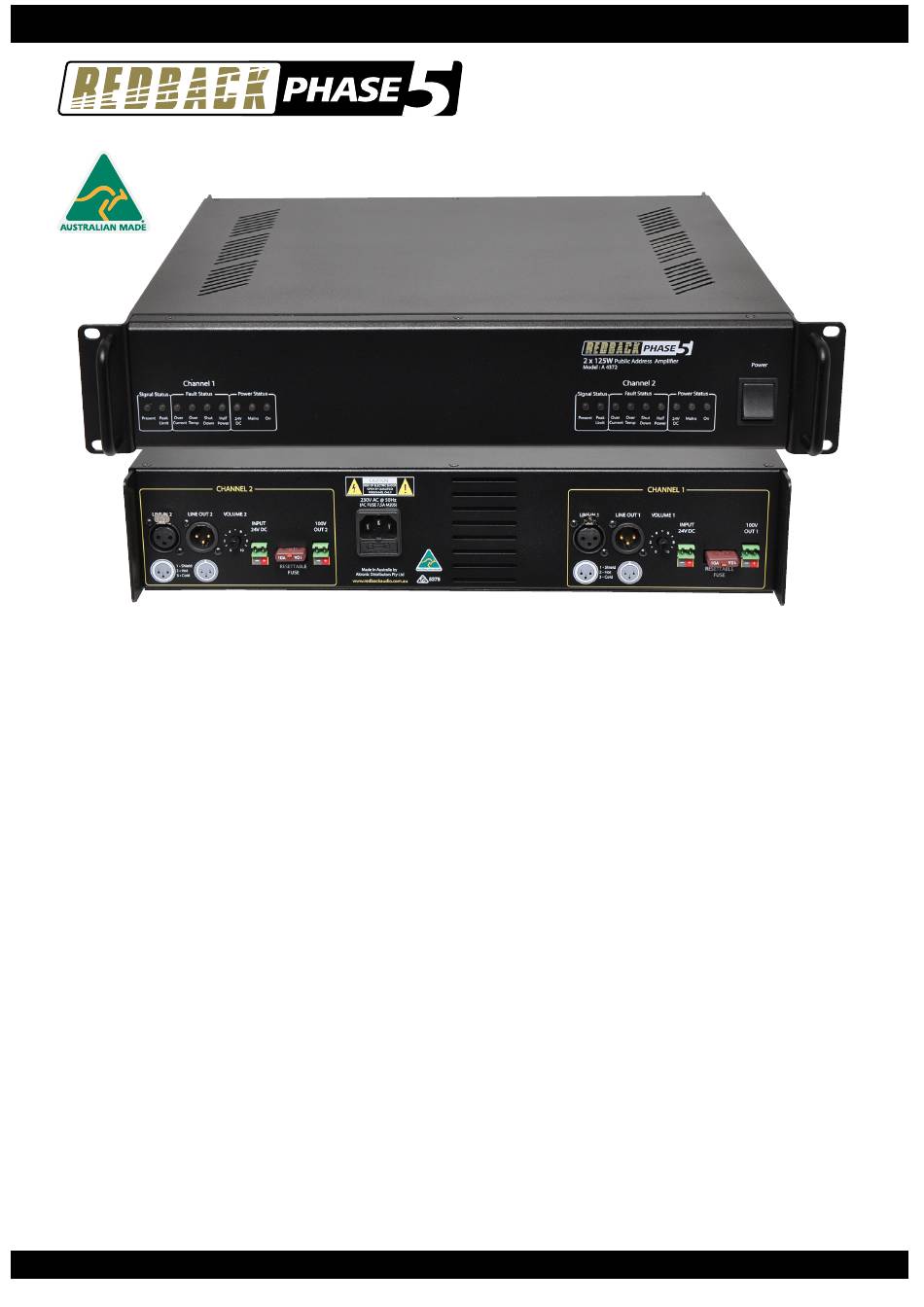

Redback® A 4372 2 x 125 Watt Power Amplifier
www.redbackaudio.com.au
Operating Manual
A 4372
2 x 125 Watt Power Amplifier

OVERVIEW

The Redback 2 x 125W power amplifier is ideal for installations requiring high power zone amplifiers. Ideally suited for use
in shopping centres, pedestrian precincts, public transport facilities and convention centres.

FEATURES

• Robust design incorporating latest Mosfet technology
• Very Low noise and distortion
• 100V outputs
• 240V AC or 24V DC operation
• Multi stage thermally cued fan cooling
• Output Peak Limited
• Thermal Overload protected
• Signal Presence Indicators
• Fault Indicators
• Power Status Indicators
• Rack Mountable (suits 19 inch racks)

POWER SUPPLY

The amplifier operates on 230V AC or 24V DC primarily for battery backup operation. Ensure power is switched OFF at
the front panel before connecting either mains power to the IEC socket or 24V DC to the screw terminal input. As high
currents may be drawn when operating from a 24V DC supply confirm the capacity of the DC power supply used.

AUDIO CONNECTIONS

Audio input is via 3 pin XLR sockets on the rear of the amplifier. These are 500mV line level balanced signal which are
normally fed from a mixer panel. Pinout details are printed on the rear of the amplifier. Balanced Line Out XLR sockets are
also provided on the rear of the amplifer for passing the audio signal on to more slave amplifiers if required. The
amplifier output level controls are also rear mounted to prevent tampering or accidental adjustment.
Redback® Proudly Made In Australia
User manual revision number: 1.0 10/02/2018
