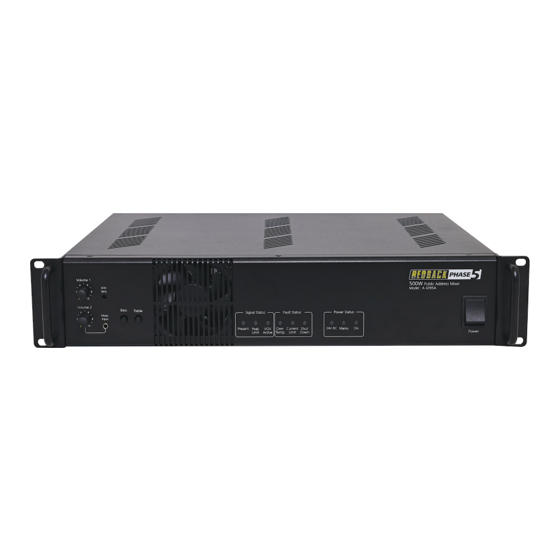

Redback® A 4395A 500W Mixer Amplifier
Operating Manual
A 4395A
500 Watt Mixer Amplifier
Redback® Proudly Made In Australia
IMPORTANT NOTE:
Please read these instructions carefully from front to back prior to installation.
They include important setup instructions.
Failure to follow these instructions may prevent the amplifier from working as designed.
User manual revision number: 1.0 22/09/2021
www.redbackaudio.com.au
Redback® Proudly Made In Australia
1
Advertisement
Table of Contents
Related Manuals for Redback PHASE 5 A 4395A
Summary of Contents for Redback PHASE 5 A 4395A
- Page 1 Redback® A 4395A 500W Mixer Amplifier Operating Manual A 4395A 500 Watt Mixer Amplifier Redback® Proudly Made In Australia IMPORTANT NOTE: Please read these instructions carefully from front to back prior to installation. They include important setup instructions. Failure to follow these instructions may prevent the amplifier from working as designed.
- Page 2 - no recorded messages, call centres or automated push button options. It’s not only the assembly team at Redback who are employed as a direct result of your purchase, but hundreds more at local companies used in the supply chain.
- Page 3 Redback® A 4395A 500W Mixer Amplifier OVERVIEW The Redback A 4395A is a 500 Watt Mixer amplifier for installations requiring a high power zone amplifier. Ideally suited for use in shopping centres, pedestrian precincts, public transport facilities and convention centres.
- Page 4 Redback® A 4395A 500W Mixer Amplifier Fig 1 shows the layout of the front panel. Volume 1 500W Public Address Mixer Model : A 4395A Sens. Volume 2 Bass Treble Signal Status Fault Status Power Status Music Input Present Peak...
- Page 5 Redback® A 4395A 500W Mixer Amplifier Fig 2 shows the layout of the rear panel. CAUTION DIP Switch Settings RISK OF ELECTRIC SHOCK Input 1 Line Balanced Mic OPEN BY QUALIFIED Item On O PERSONNEL ONLY Input 1 Sensitivity 0.1V...
- Page 6 Redback® A 4395A 500W Mixer Amplifier SPEAKER CONNECTIONS Speakers with a total impedance or 4-16Ω may be connected to the terminals marked 4-16Ω on the rear of the amplifier. Speakers fitted with line transformers (either 70V or 100V) may be connected to the corresponding terminals on the rear of the amplifer.
- Page 7 Redback® A 4395A 500W Mixer Amplifier POWER SUPPLY The amplifier operates on 230V AC or 24V DC primarily for battery backup operation. Ensure power is switched OFF at the front panel before connecting either mains power to the IEC socket or 24V DC to the screw terminal input. As high currents may be drawn when operating from a 24V DC supply confirm the capacity of the DC power supply used.
- Page 8 Redback® A 4395A 500W Mixer Amplifier TROUBLE SHOOTING If the REDBACK Phase 4 amplifier fails to deliver the rated performance, check the following: No Power, No Lights Make sure amplifier power switch is on. Make sure mains power switch is on at the wall. Check the mains and DC fuse.
